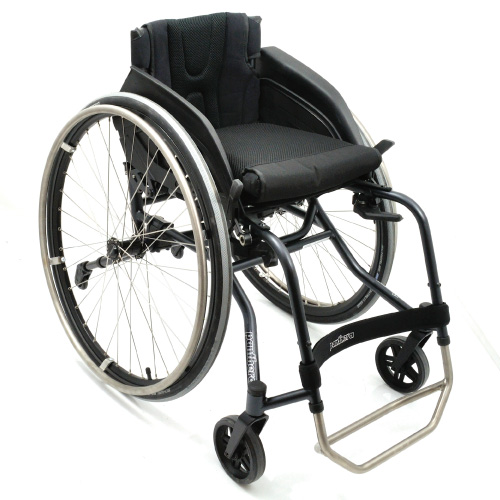

PANTHERA S3 SHORT ABD

- S3 short Abd is an S3 Short with an abduction front
- Has a 4° seat angle

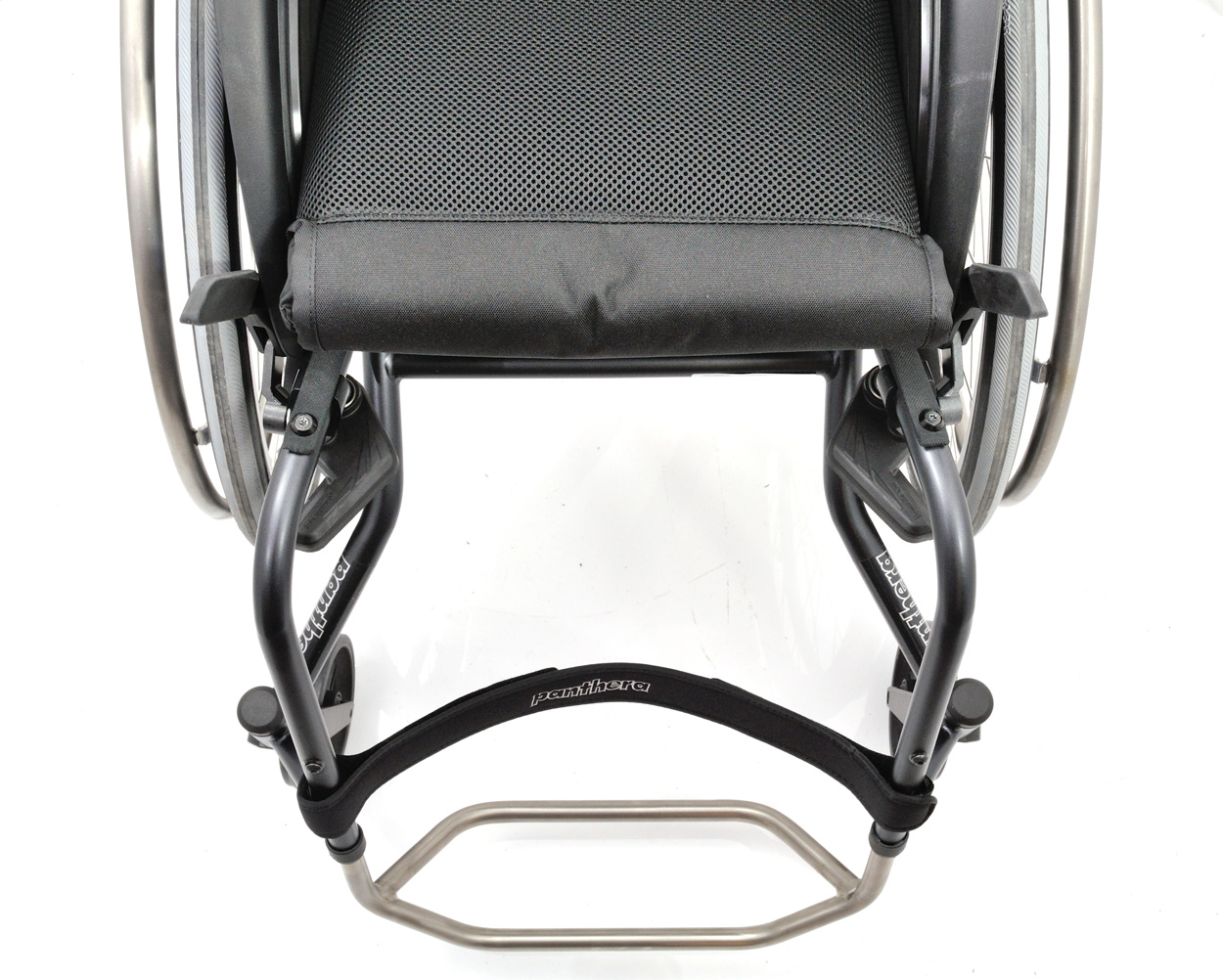

- The abduction front has the front is 6 cm wider than the seat width
- Available in seat widths 27, 30 and 33 cm.

- Otherwise it has the same specifications as S3 SHORT

Now with 10 days delivery time. Read more in INFO SHEET 2020-13
Highslide JS
You are here: start / products / S3 family / S3 Short Abd
TRANSPORT WEIGHT: from 4410 g
Panthera AB • Gunnebogatan 26 • 163 53 Spånga • Sweden• SE_Box_Spanga@permobil.com • Tel: +46-8-761 50 40

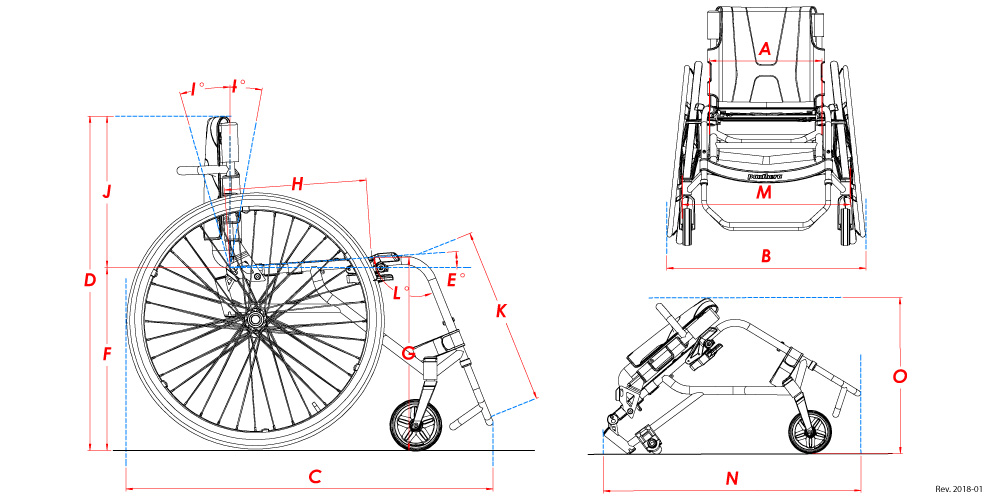

FACTS S3 SHORT ABD




  Model code G555 G555 G555
A Seat width cm 27 30 33
B Total width 55 58 61
C Total length cm 73-85 73-85 73-85
D Total height cm 64-84 64-84 64-84
E Seat angle degrees 4° 4° 4°
F Seat height rear cm 43 43 43
G Seat height front cm 45 45 45
H Seat depth cm 27-33 27-33 27-33
I Backrest angle back - forwards 17,3°- (-5°) 17,3° - (-5°) 17,3° - (-5°)
J Backrest height cm 25 - 40 20 - 45 20 - 45
K Footrest height in cm for the footrest positions

  Footrest standard 36,38,40,42,44 36,38,40,42,44 36,38,40,42,44
  Footrest extended 38,40,42,44,46 38,40,42,44,46 38,40,42,44,46
L Footrest angle degrees 105° 105° 105°
M Width cm 47 50 53
N Length cm 71 71 71
O Height cm 42 42 42
  Total S3 Short Abd (g) 7970 8050 8130

Transport S3 Short Abd (g) 4410 4490 4570

Userweight (kg) 100 100 100
WEIGHT CONFIGURATION Art.no. for configuration, not possible to order separately
Chassis Chrome molybdenum Width 27 5552700BLG black - 10 days del.time
Back rest Vinkelställbar steglös Width 30 5553000BLG black - 10 days del.time
Back rest upholstery Adjustable  Width 33 5553300BLG black - 10 days del.time
Rear axle Carbon 6 dgr Width 27 5552700GP unpainted
Balancing Ungraded adjustable  Width 30 5553000GP unpainted
Rear wheels 24"  Width 33 5553300GP unpainted
Push rim Titanium
Brakes S3
Castors 120 mm
Foot rest Titanium
Others Calf band, Tool kit, Manual

ACCESSORIES S3 SHORT ABD

ARM REST S3
SIDEGUARD S3
PUSH HANDLE
PUSH BAR
CUSHION
ANTI_TIP DEVICE
SEAT BAG
CRUTCH HOLDER
SPOKE PROTECTION
OTHER

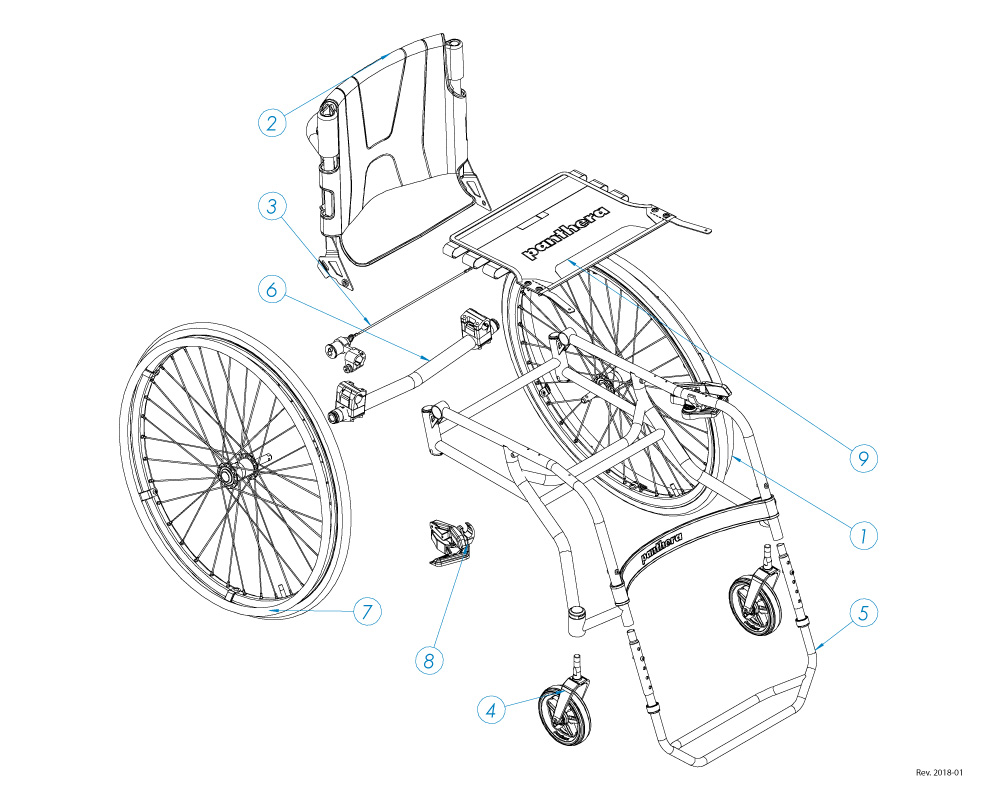

PARTS S3 SHORT ABD

Drivhjul Drivhjul Bakaxel Bakaxel sITS SITS cHASSI Fotsstöd Rygglås Rygglås Rygg Framgaffel Broms Sits Rygg Drivhjul Chassi Fotstöd Framgaffel Rygg Drivhjul Sits Dyna Sidoskydd Chassi Fotstöd Gaffel Länkhjul
