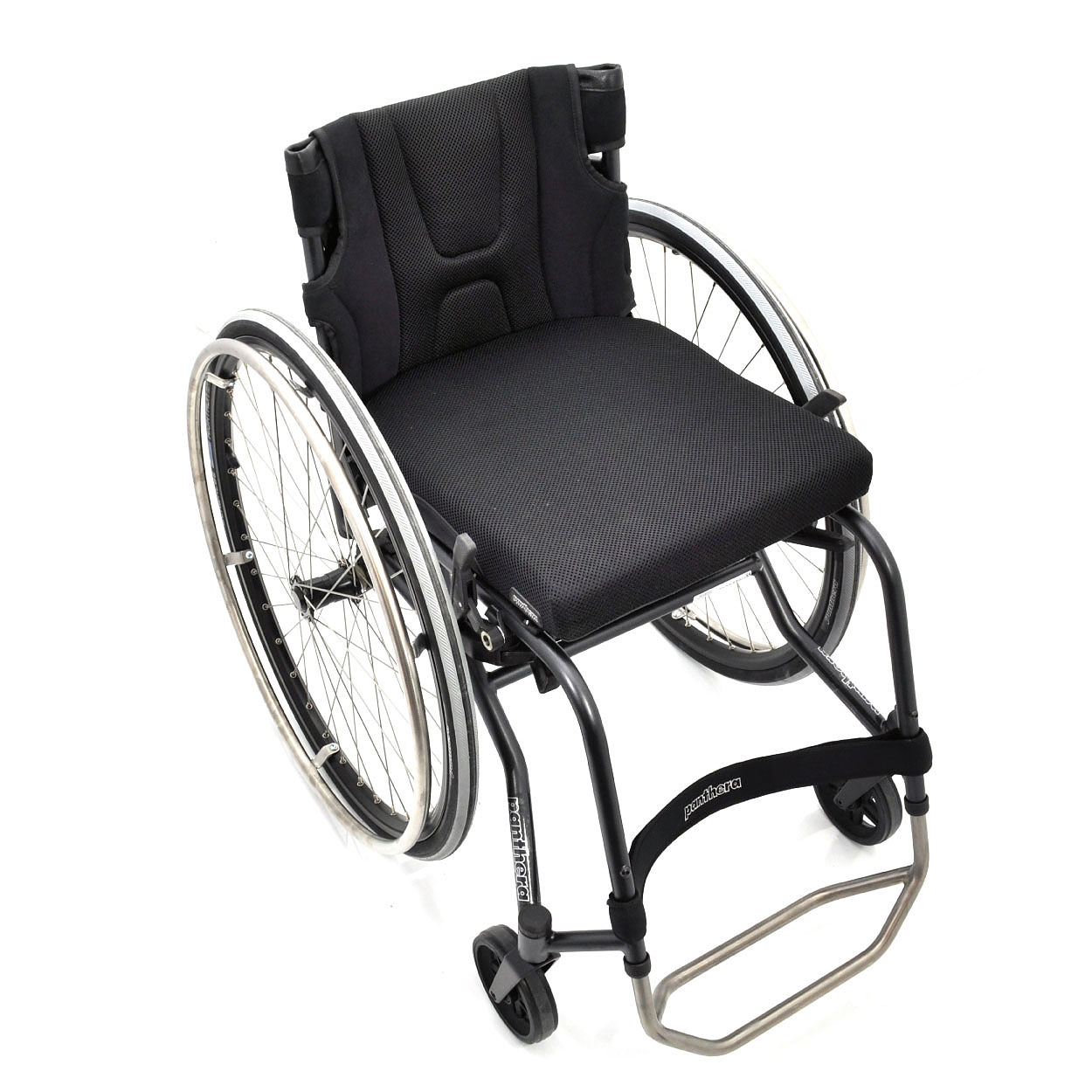

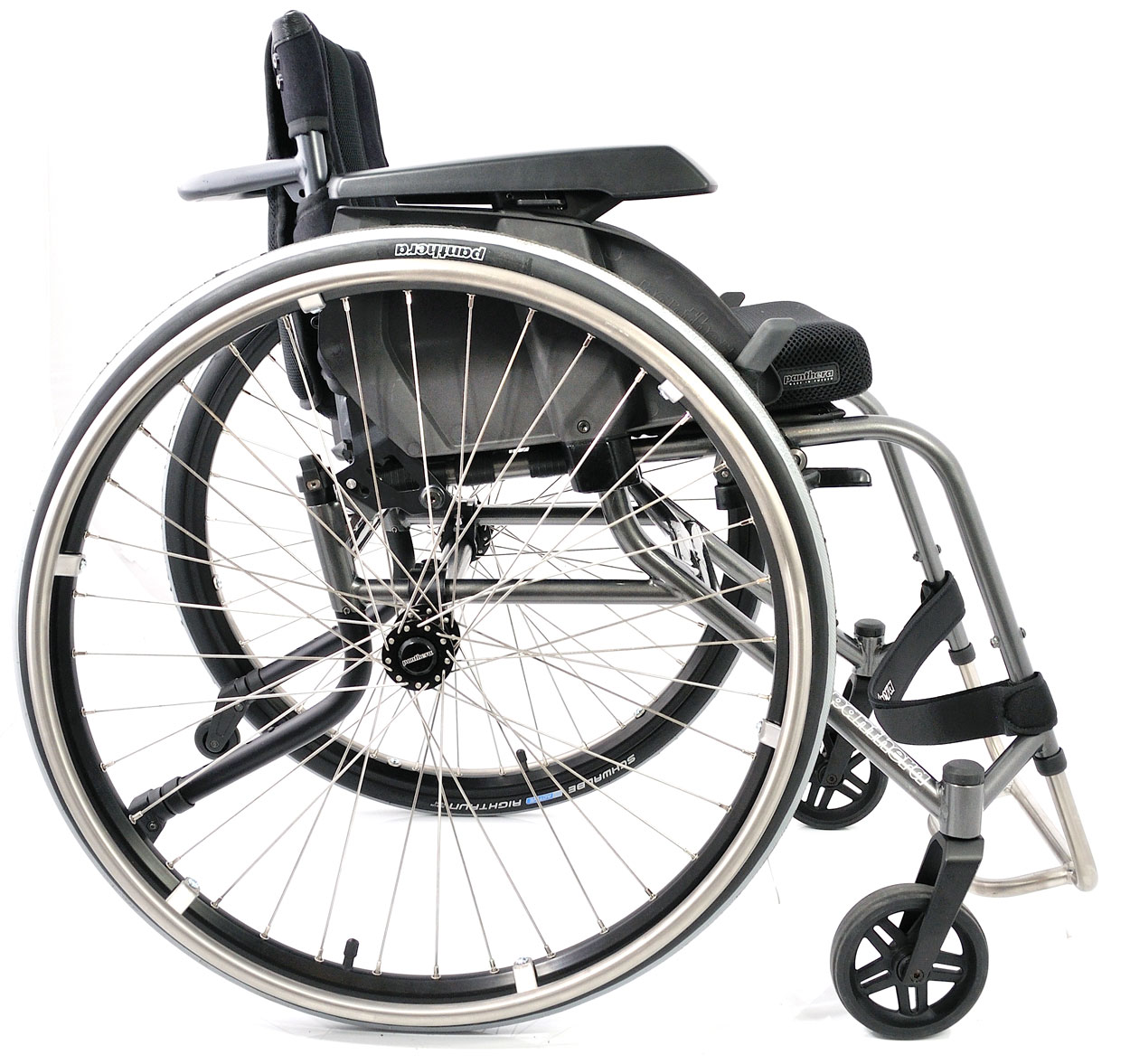

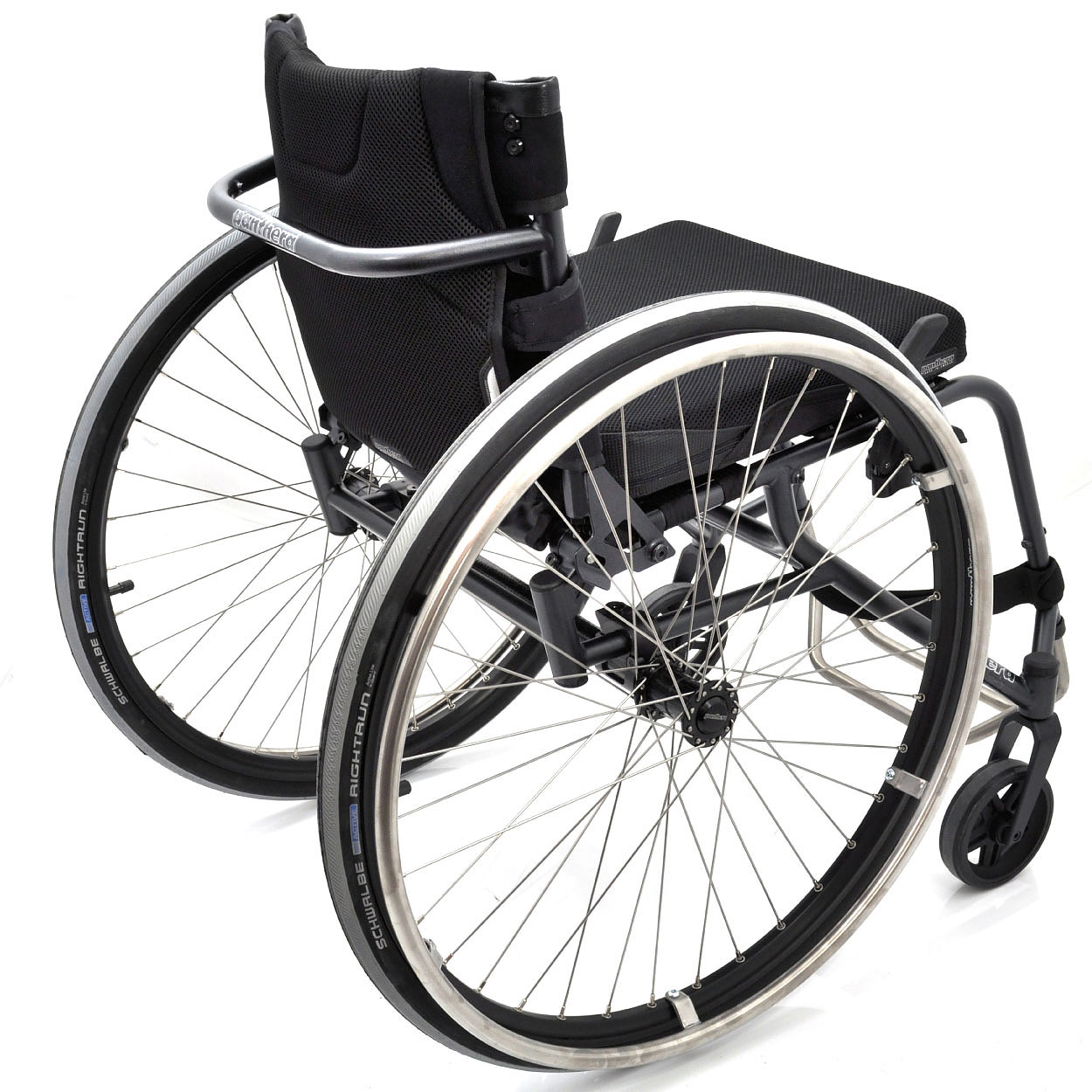

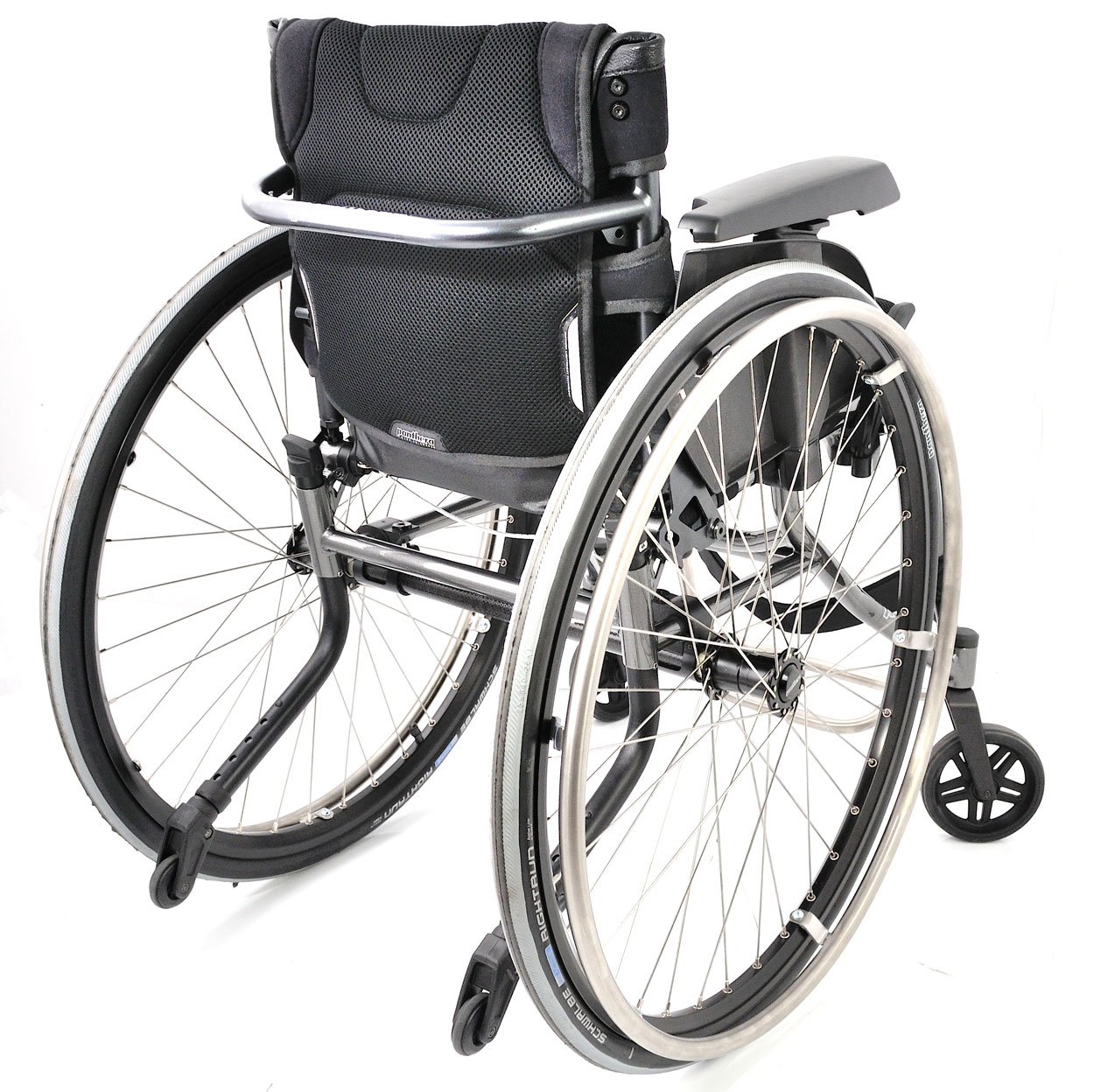

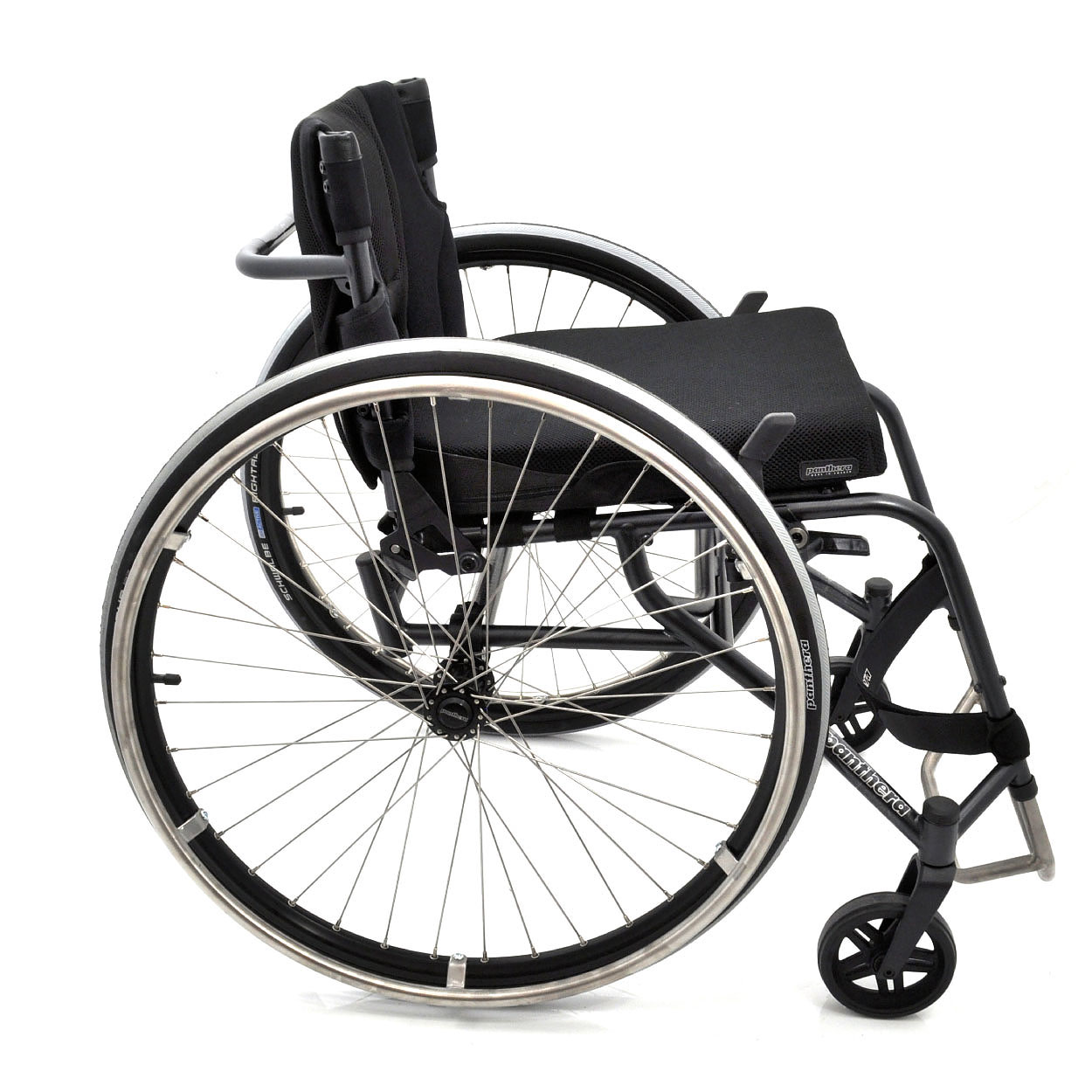

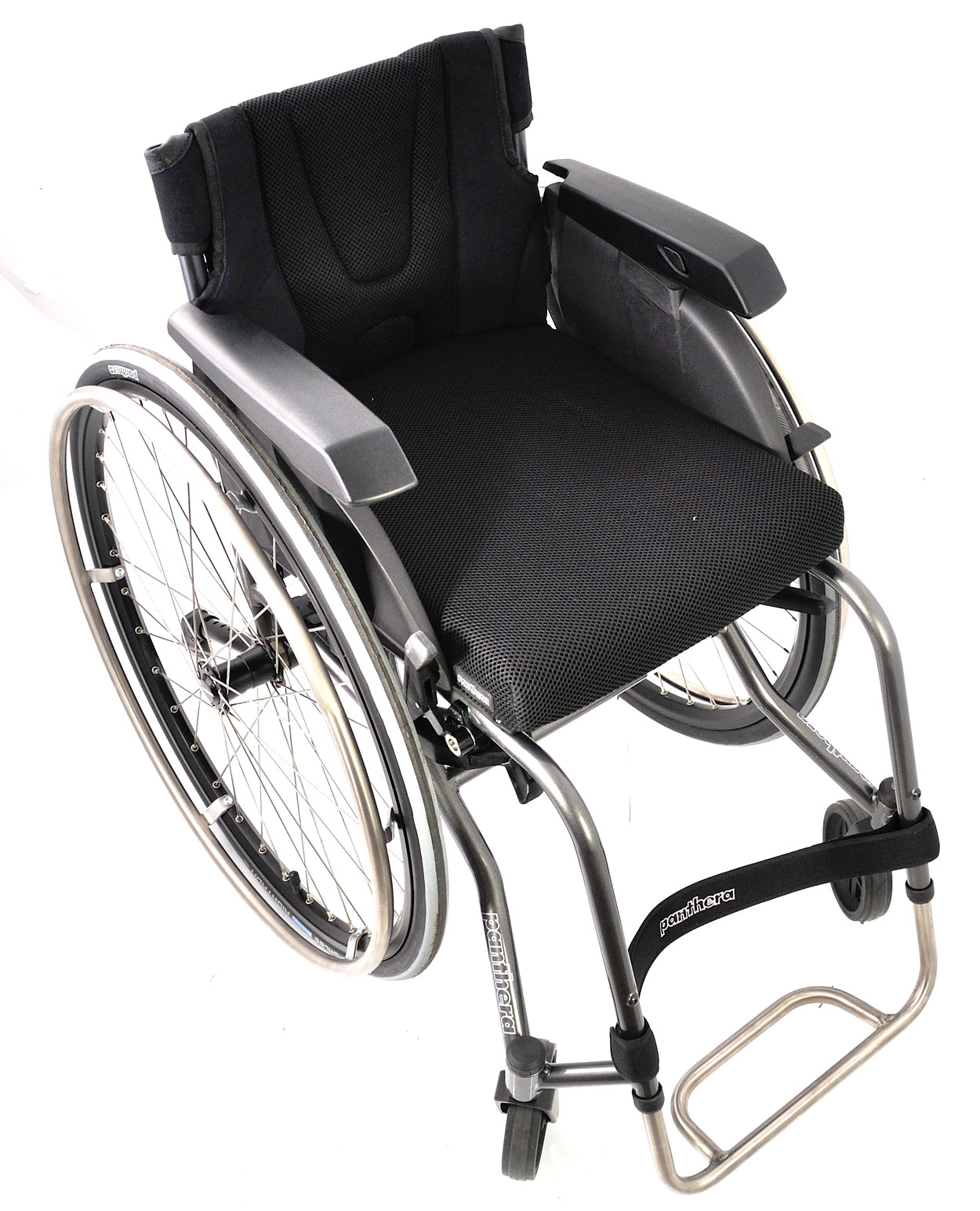

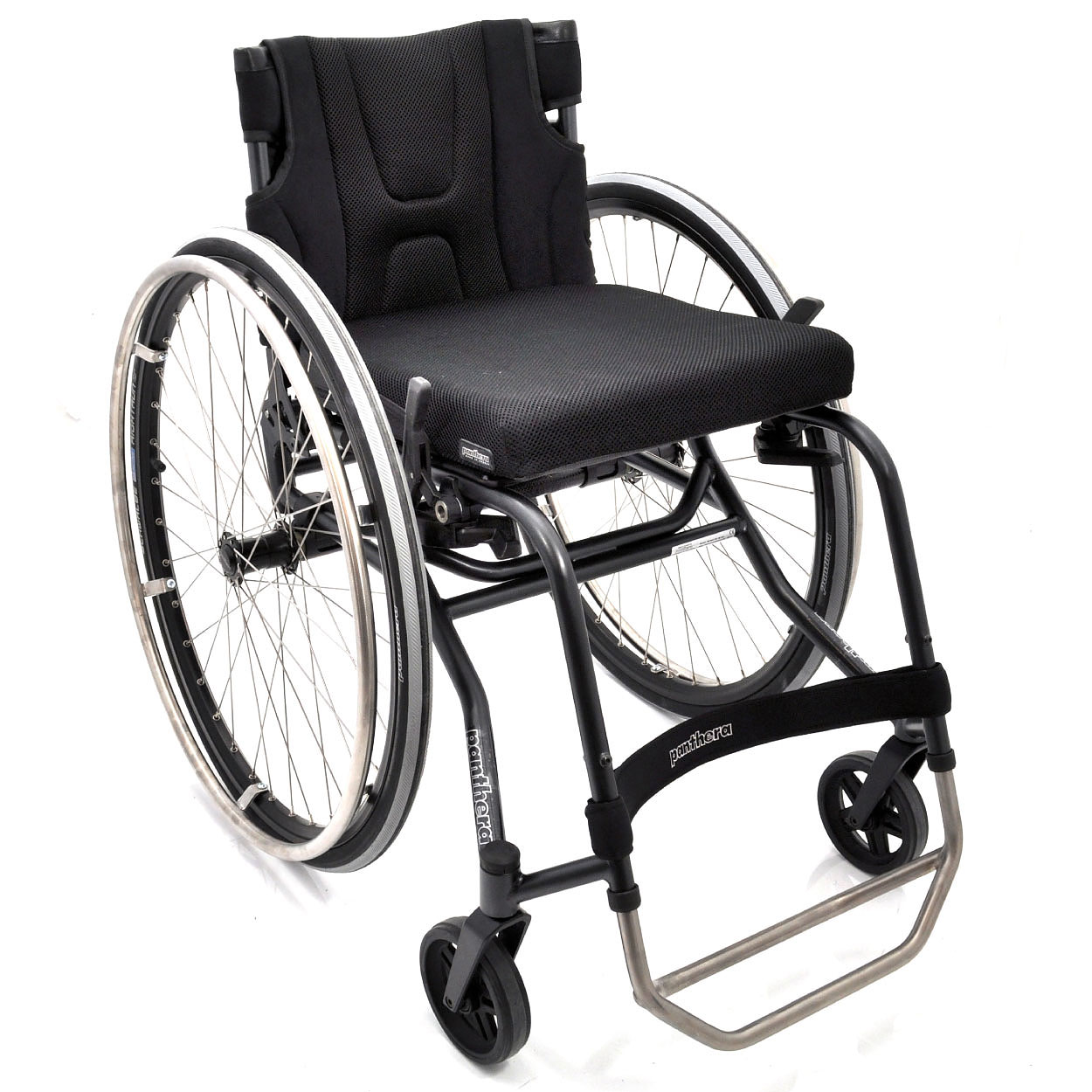

PANTHERA S3 SHORT

- S3 short has a 50 mm shorter chassis compared to S3

- Otherwise it has the same specifications as PANTHERA S3


Highslide JS
You are here: start / products /S3 family/ S3 short
TRANSPORT WEIGHT: from 4490 g
Panthera AB • Gunnebogatan 26 • 163 53 Spånga • Sweden• SE_Box_Spanga@permobil.com • Tel: +46-8-761 50 40

FACTS S3 SHORT

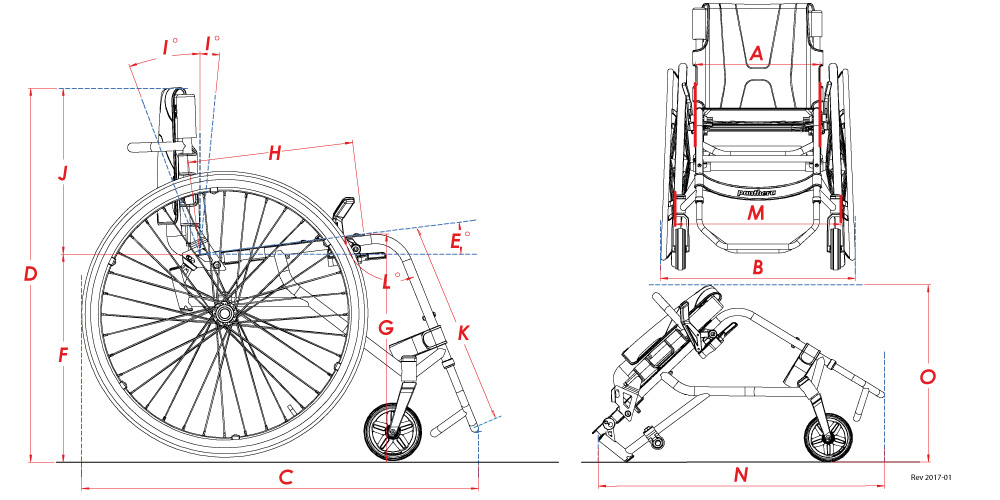

Model code G549 G549 G549 G549 G549 G549
A Seat width cm 30 33 36 39 42 45
B Total width 51 54 57 60 63 66
C Total length cm 73-85 73-85 73-85 73-85 73-85 73-85
D Total height cm 64-84 64-84 64-84 64-84 64-84 64-84
E Seat angle degrees 7° 7° 7° 7° 7° 7°
F Seat height rear cm 43 43 43 43 43 43
G Seat height front cm 47 47 47 47 47 47
H Seat depth cm 27-33 27-33 35 35 35 35
I Backrest angle back - forwards 17,3°- (-5°) 17,3°- (-5°) 17,3°- (-5°) 17,3°- (-5°) 17,3°- (-5°) 17,3°- (-5°)
J Backrest height cm 20 - 45 20 - 45 20 - 45 20 - 45 20 - 45 20 - 45
K Footrest height in cm for the footrest positions
  Footrest standard 36,38,40,42,44 36,38,40,42,44 36,38,40,42,44 36,38,40,42,44 36,38,40,42,44 36,38,40,42,44
  Footrest extended 38,40,42,44,46 38,40,42,44,46 38,40,42,44,46 38,40,42,44,46 38,40,42,44,46 38,40,42,44,46
  Foldable footrest 38,40,42,44,46 38,40,42,44,46 38,40,42,44,46 38,40,42,44,46 38,40,42,44,46 38,40,42,44,46
  Foldable footrest extended 40,42,44,46,48 40,42,44,46,48 40,42,44,46,48 40,42,44,46,48 40,42,44,46,48 40,42,44,46,48
L Footrest angle degrees 105° 105° 105° 105° 105° 105°
M Width cm 43 46 49 52 55 58
N Length cm 71 71 71 71 71 71
O Height cm 50 50 50 50 50 50
Weight
Total (g) 8050 8130 8220 8310 8400 8620
  Transport (g) 4490 4570 4660 4750 4840 4967
  User weight (kg) 100 100 100 100 100 150
STANDARD DESIGN Art.no. for configuration, not possible to order separately
Chassis Chrome molybdenum Width 30 5493000BLG 5493000G
Rear axle Carbon Width 33 5493300BLG 5493300G
Balancing Ungraded adjustable  Width 36 5493600BLG 5493600G
Rear wheels 24"  Width 39 5493900BLG 5493900G
Push rim Titanium Width 42 5494200BLG 5494200G
Brakes High brake S3 Width 45 5494500BLG 5494500G
Castors 120 mm
Foot rest Titanium
Back rest Ungraded adjustable angle
Back rest upholstery Adjustable
Others Calf band, Tool kit, Manual

ACCESSORIES S3 SHORT

ARM REST S3
SIDEGUARD S3
PUSH HANDLE
HEIGHT ADJUSTABLE
PUSH BAR
PUSH HANDLE
FOLDABLE
ANTI-TIP DEVICE
SEAT BAG
CRUTCH HOLDER
SPOKE PROTECTION
OTHER

PARTS S3 SHORT

Rear wheel Rear wheel Rear axle Rear axle Seat Seat Chassis cHASSI Foot rest Foot rest Back rest lock Back rest lock Brake Brake Back rest Back rest Castor fork Broms Sits Rygg Drivhjul Chassi Fotstöd Framgaffel Rygg Drivhjul Sits Dyna Sidoskydd Chassi Fotstöd Gaffel Länkhjul
