FITS
S2 / S3 YES / YES
S2 short / S3 short YES / YES
S2 short-low / S3 short-low YES / YES
S2 large / S3 large YES / YES
S2 swing / S3 swing YES / YES
S2 swing-short / S3 swing-short YES / YES
U2 / U3 YES / YES
U2 light / U3 light NO / NO
Bambino NO
Micro NO
Panthera X NO

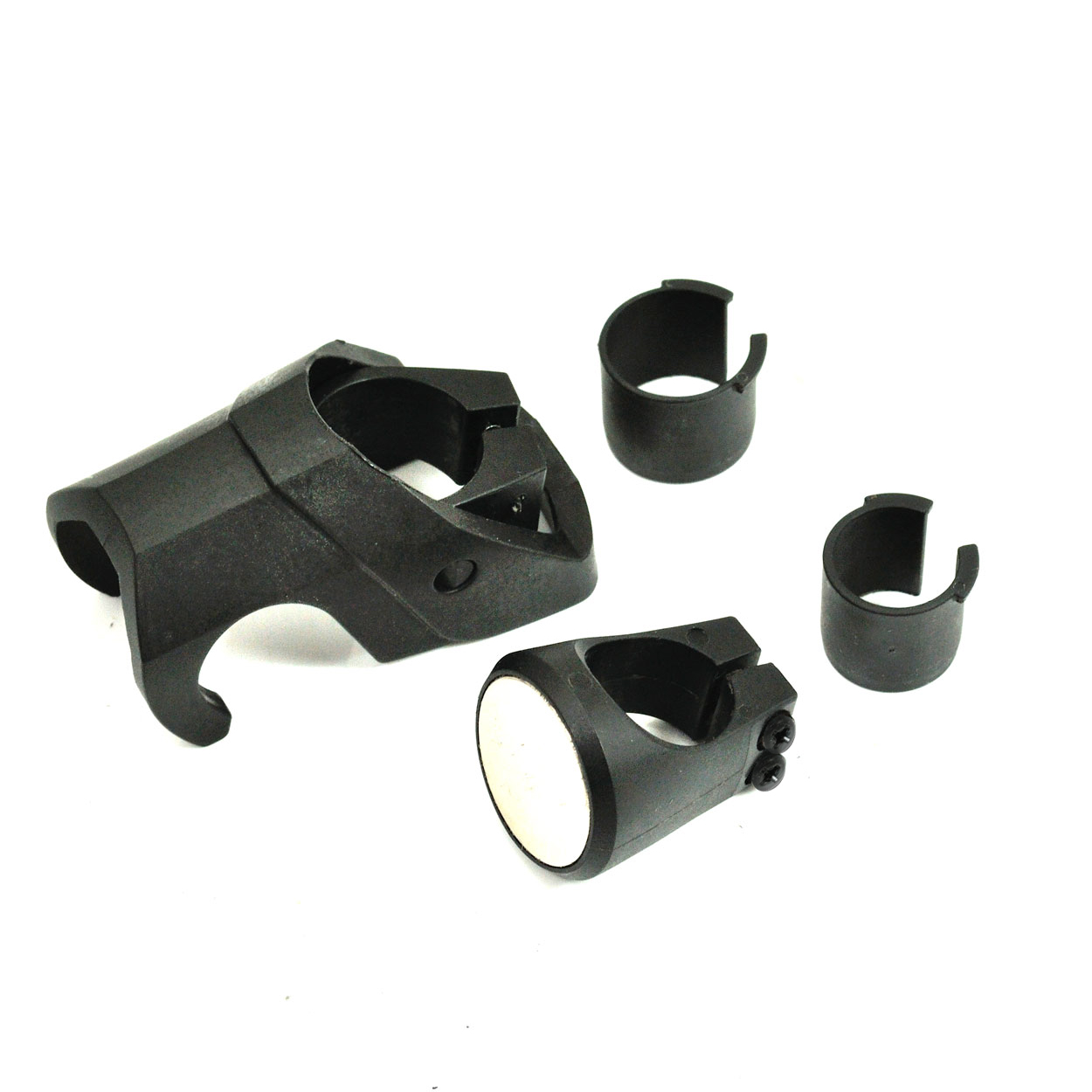

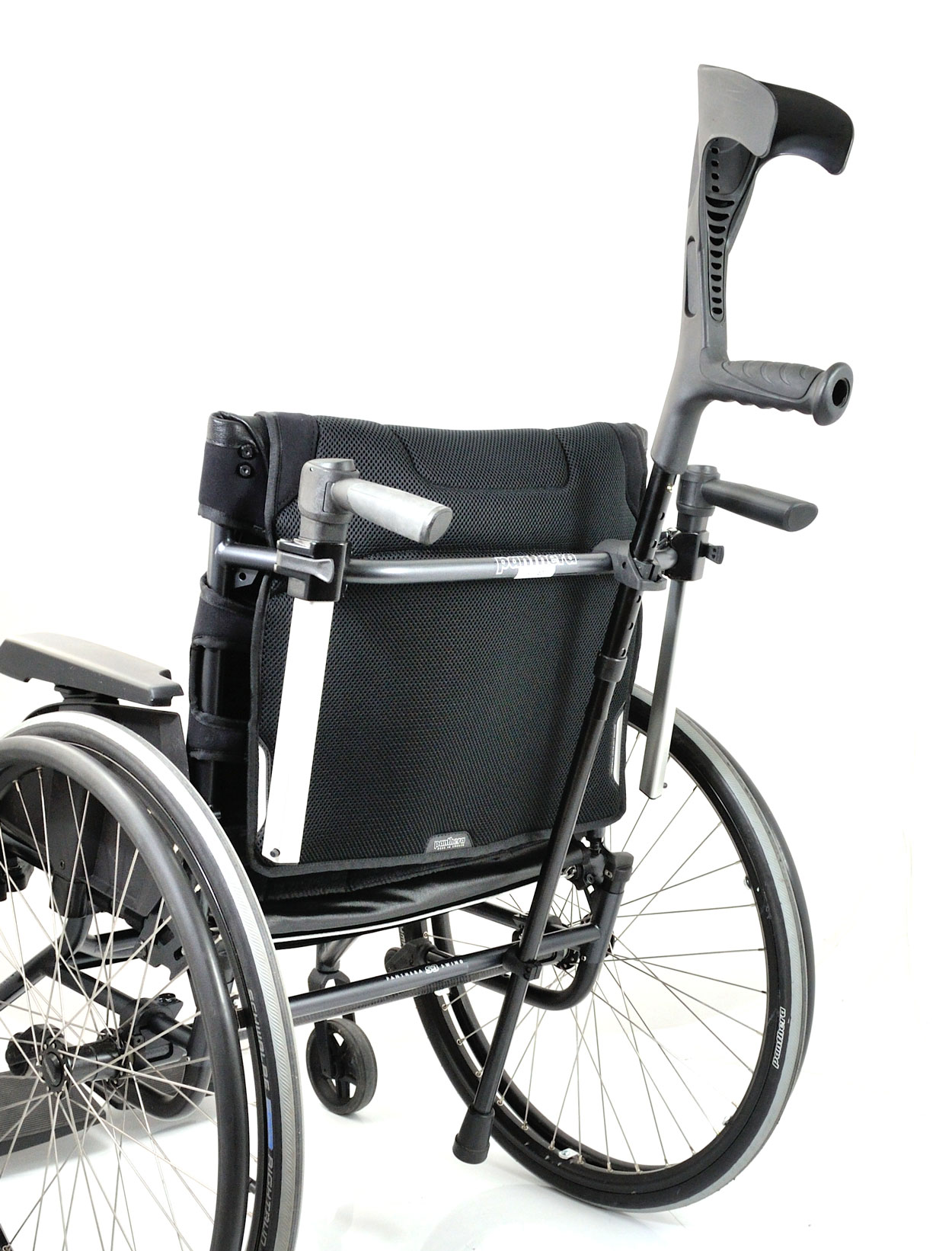

- The holder consists of two parts that can be easily attached to the crutch
- The upper part hooks onto the backrest tubing and the lower attaches to the chassis tubing   with a magnet.
- The advantage of this crutch holder is that there is no extra weight on the wheelchair
- The crutch is very easy to attach and detach from the wheelchair.
- The crutch is also very firmly attached to the wheelchair.
- It´s for crutches with a dia. of 19-22 mm (upper attachment), 16 to 19 mm (lower attachment)
- Material: Reinforced polyamide with a recessed magnet Weight: 46g / crutch
- Mounted with a screw with a Torx head
(TT10)
DESCRIPTION ART.NO QTY
Crutch holder S3 9900301 1
You are here: start / products / accessories / crutch holder /S3

CRUTCH HOLDER S3

Highslide JS
large image

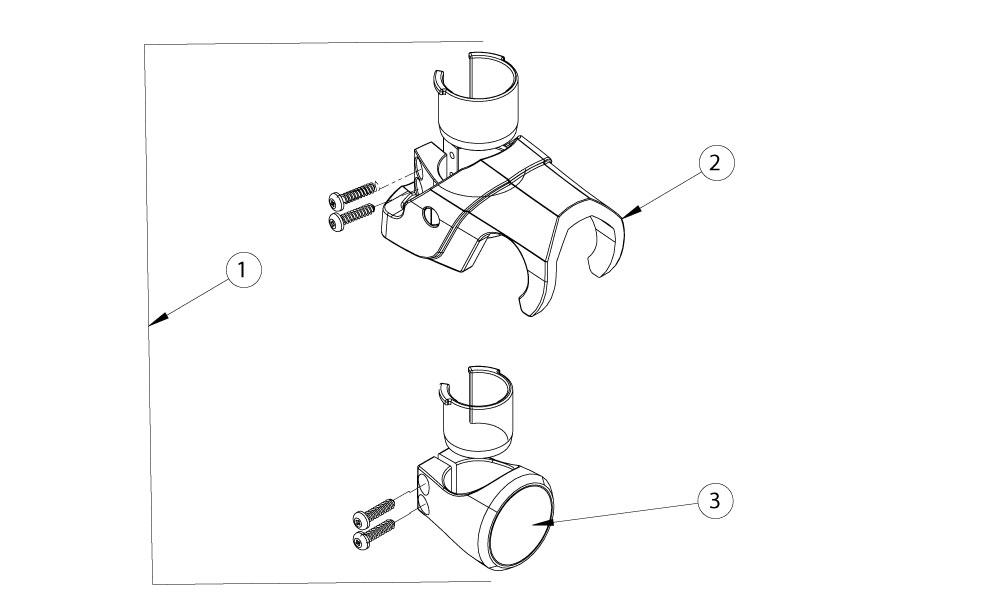

EXPLODED VIEW

pos. Description art.no. QTY
1 Crutch holder S3 cpl   9900301 1
2 Upper attachment     1
3 Lower attachment     1
Panthera AB • Gunnebogatan 26 • 163 53 Spånga • Sweden• SE_Box_Spanga@permobil.com • Tel: +46-8-761 50 40
.
.
