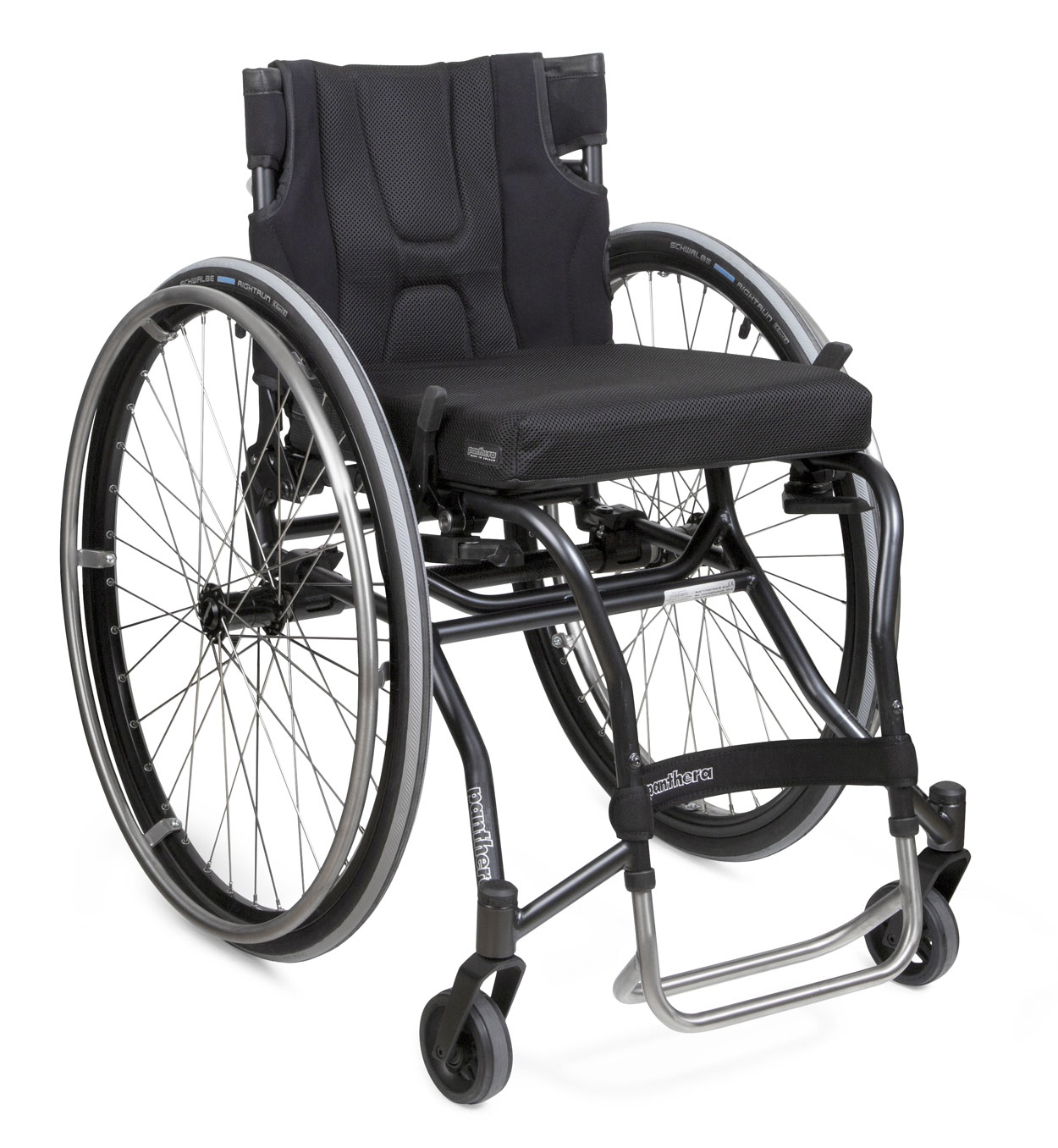

PANTHERA U3 Y-FRONT SHORT

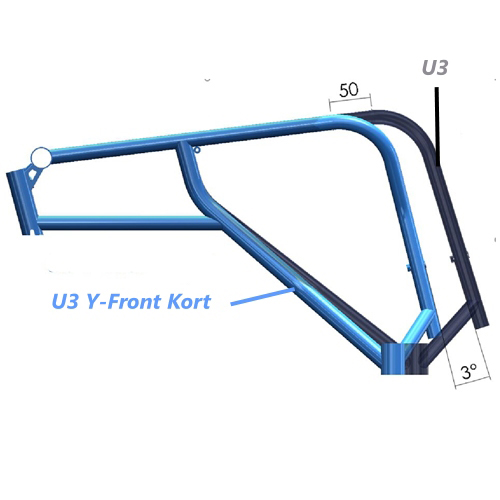

U3 Y-front short gives full frame width for the user's thighs and then narrows down the frame front to the fixed footplate,
where the feet rest together.
U3 Y-front short is 50 mm shorter than U3 Y-front.

Otherwise it has the same specifications as U3.
Highslide JS
You are here: start / products / extended range wheelchairs / U3 - Y-front short
TRANSPORT WEIGHT: from 4510 g

FACTS U3 Y-FRONT SHORT


Model code G5802 G5802 G5802 G5802 G5802 G5802
A Seat width cm 33 36 39 42 45 50
B Total width 54 57 60 63 66 71
C Total length cm 79 79 79 79 79 79
D Total height cm 64-84 64-84 64-84 64-84 64-84 64-84
E Seat angle degrees
F Seat height rear cm 43 43 43 43 43 43
G Seat height front cm 47 47 47 47 47 47
H Seat depth cm 35, 37,5 35, 37,5 35, 37,5 35, 37,5 35, 37,5 35, 37,5
I Backrest angle back - forwards 17,3° - (-5°) 17,3° - (-5°) 17,3° - (-5°) 17,3° - (-5°) 17,3° - (-5°) 17,3° - (-5°)
J Backrest height cm 20 - 45 20 - 45 20 - 45 20 - 45 20 - 45 20 - 45
K Footrest height in cm for the footrest positions
  Footrest standard 36*,38,40,42,44 36*,38,40,42,44 36*,38,40,42,44 36*,38,40,42,44 36*,38,40,42,44 36*,38,40,42,44
  Footrest extended 38**,40,42,44,46 38**,40,42,44,46 38**,40,42,44,46 38**,40,42,44,46 38**,40,42,44,46 38**,40,42,44,46
L Footrest angle degrees 100° 100° 100° 100° 100° 100°
M Width cm 41 44 47 50 53 58
N Length cm 73 73 73 73 73 73
O Height cm 45 45 45 45 45 45
Total (g) 8070 8160 8250 8340 8540 9360
  Transport (g) 4510 4600 4690 4780 4980 5400
  Brukarvikt (kg) 100 100 100 100 150 150
WEIGHT CONFIGURATION Art.no. for konfiguration. Not possible to order separately.
Chassis Chrome molybdenum
Rear axle Carbon Width 33 5802033GP
Balancing Ungraded adjustable   Width 36 5802036GP
Rear wheels 24"  Width 39 5802039GP
Push rim Titanium Width 42 5802042GP
Brakes S3 Width 45 5802045GP
Castors 90 mm Width 50 5802050GP
Foot rest Titanium
Back rest Ungraded adjustable angle
Back rest upholstery Adjustable
Others Calf band, Tool kit, Manual *Need to shorten the footrest

ACCESSORIES U3 Y-FRONT SHORT

ARM REST S3
SIDEGUARD S3
PUSH HANDLE
PUSH BAR
CUSHION
ANTI_TIP DEVICE
SEAT BAG
CRUTCH HOLDER
SPOKE PROTECTION
OTHER

PARTS U3 Y-FRONT SHORT

Drivhjul Drivhjul Bakaxel Bakaxel sITS SITS cHASSI cHASSI Fotsstöd Rygglås Rygglås Framgaffel Broms Sits Rygg Drivhjul Chassi Fotstöd Framgaffel Rygg Drivhjul Sits Dyna Sidoskydd Chassi Fotstöd Gaffel Länkhjul
