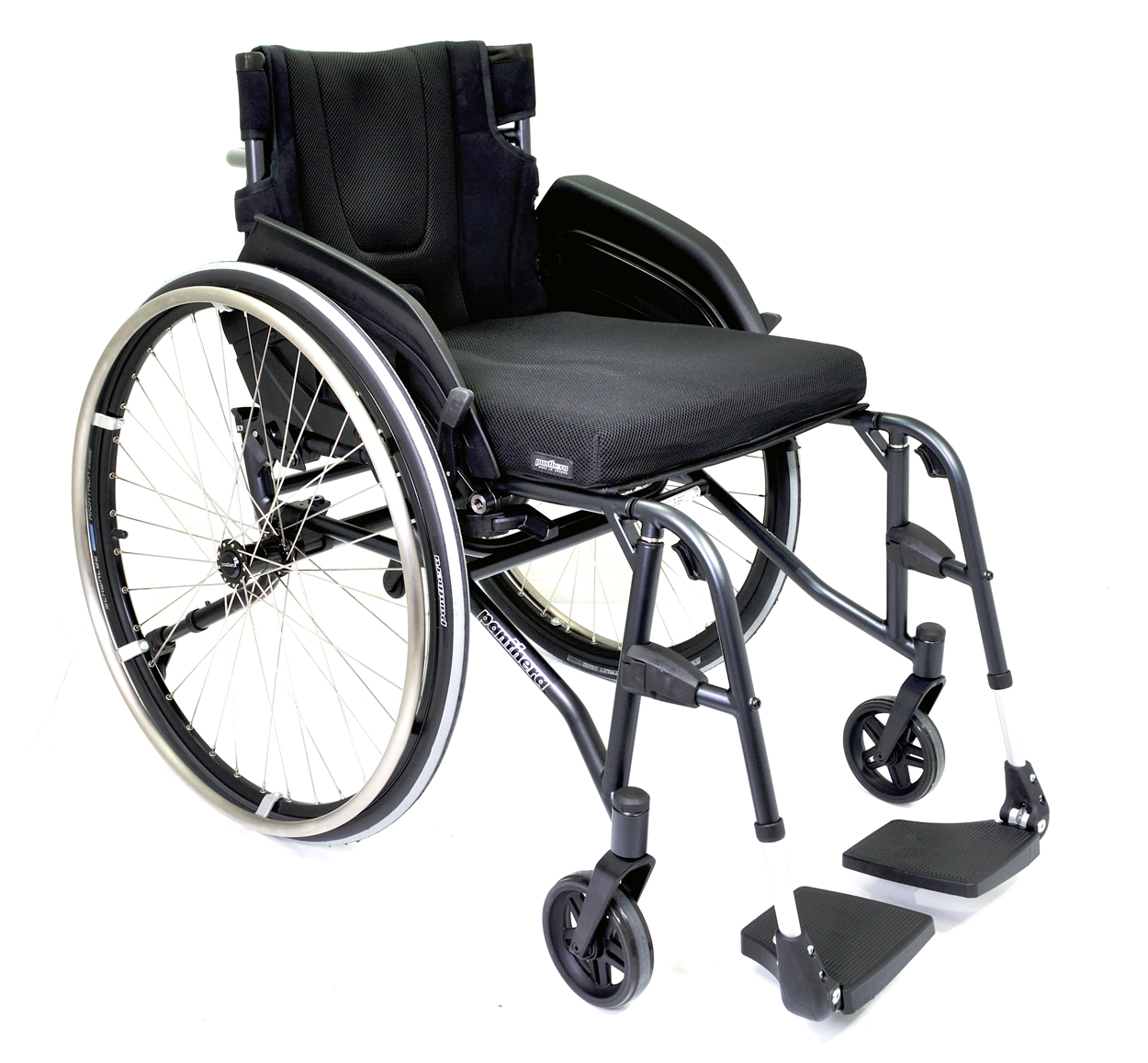

PANTHERA S3 SWING LONG

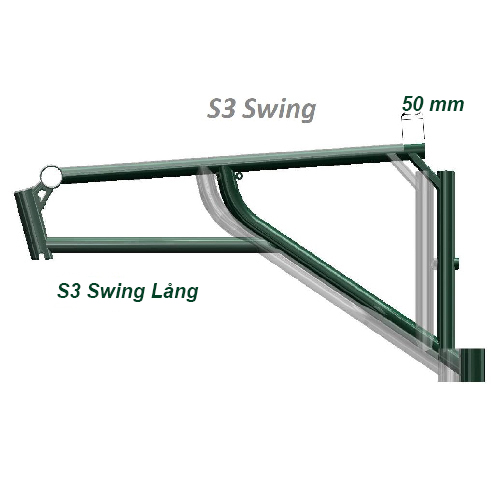

Panthera S3 Swing Long is eextended 50 mm compared to S3 Swing.

Otherwise it has the same specifications as S3 SWING.
Highslide JS
You are here: start / products / extended range wheelchairs / S3 Swing Long
TRANSPORT WEIGHT: from 4570 g

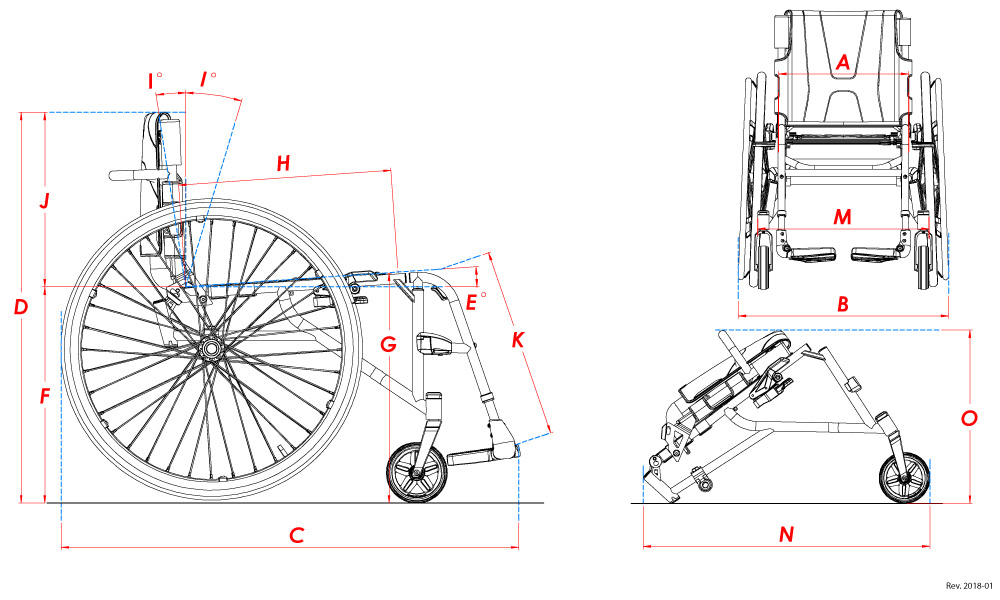

FACTS S3 SWING LONG


Modellkod   G5818 G5818 G5818 G5818 G5818
A Seat width cm   36 39 42 45 50
B Total width   57 60 63 66 71
C Total length cm   98 98 98 98 98
D Total height cm   64-84 64-84 64-84 64-84 64-84
E Seat angle degrees   4° 4° 4° 4° 4°
F Seat height rear cm   43 43 43 43 43
G Seat height front cm   45 45 45 45 45
H Seat depth cm   37.5,40,42.5, 45 37.5,40,42.5, 45 37.5,40,42.5, 45 37.5,40,42.5, 45 37.5,40,42.5, 45
I Backrest angle back - forwards   13,3° - (-12°) 13,3° - (-12°) 13,3° - (-12°) 13,3° - (-12°) 13,3° - (-12°)
J Backrest height cm   20 - 45 20 - 45 20 - 45 20 - 45 20 - 45
K Footrest height in cm for the footrest positions
  Foldable footrest   38,40,42,44,46 38,40,42,44,46 38,40,42,44,46 38,40,42,44,46 38,40,42,44,46
  Foldable footrest extended   40,42,44,46,48 40,42,44,46,48 40,42,44,46,48 40,42,44,46,48 40,42,44,46,48
L Footrest angle degrees   105° 105° 105° 105° 105°
M Width cm   49 52 55 58 63
N Length cm   68 68 68 68 68
O Height cm   50 50 50 50 50
  Weight
Total (g)   9370 9470 9570 9870 10270
  Transport (g)   4570 4670 4770 4970 5470
  User weight (kg)   100 100 100 150 150
WEIGHT CONFIGURATION Art.no. for configuration, not possible to order separately
Chassis Chrome molybdenum Width 36 5818136GP
Rear axle Carbon Width 39 5818139GP
Balancing Ungraded adjustable    Width 42 5818142GP
Rear wheels 24"  Width 45 5818145GP
Push rim Titanium Width 50 5818150GP
Brakes S3
Castors 120 mm
Foot rest Devided footplates
Back rest Ungraded adjustable angle
Back rest upholstery Adjustable
Others Calf band, Tool kit, Manual

ACCESSORIES S3 SWING LONG

ARM REST S3
SIDEGUARD S3
PUSH HANDLE
PUSH BAR
CUSHION
ANTI_TIP DEVICE
SEAT BAG
CRUTCH HOLDER
SPOKE PROTECTION
OTHER

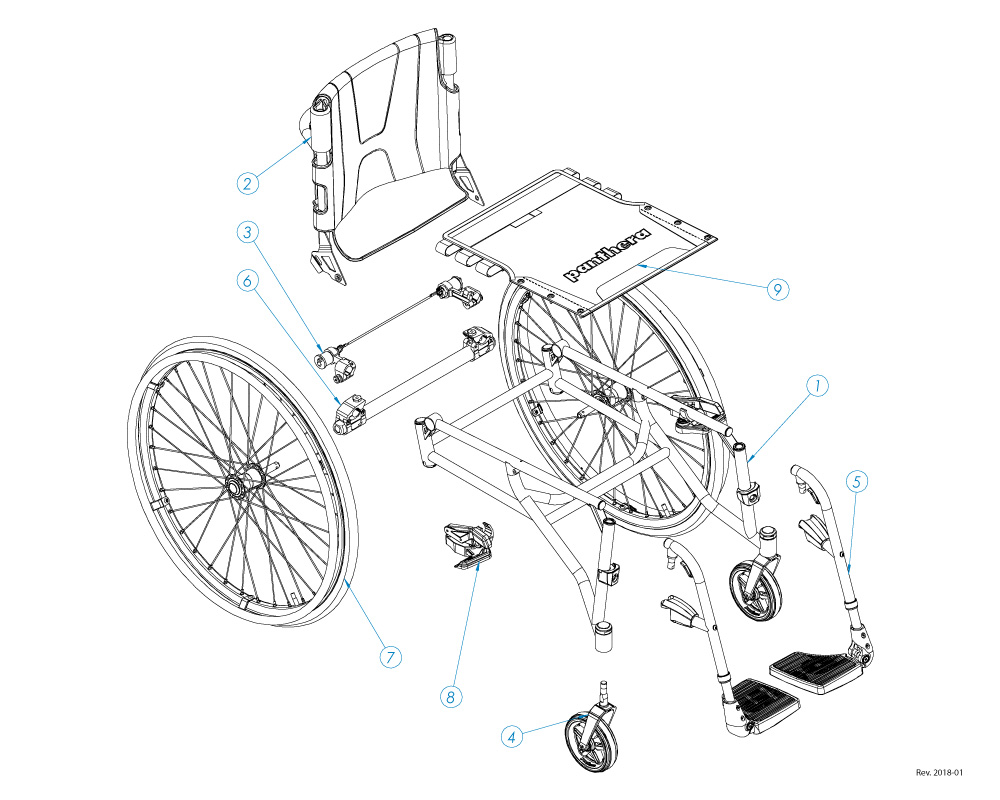

PARTS S3 SWING LONG

Drivhjul Drivhjul Bakaxel Bakaxel sITS SITS cHASSI cHASSI Fotsstöd Fotstöd Rygglås Rygglås Rygg Framgaffel Broms Sits Rygg Drivhjul Chassi Fotstöd Framgaffel Rygg Drivhjul Sits Dyna Sidoskydd Chassi Fotstöd Gaffel Länkhjul
