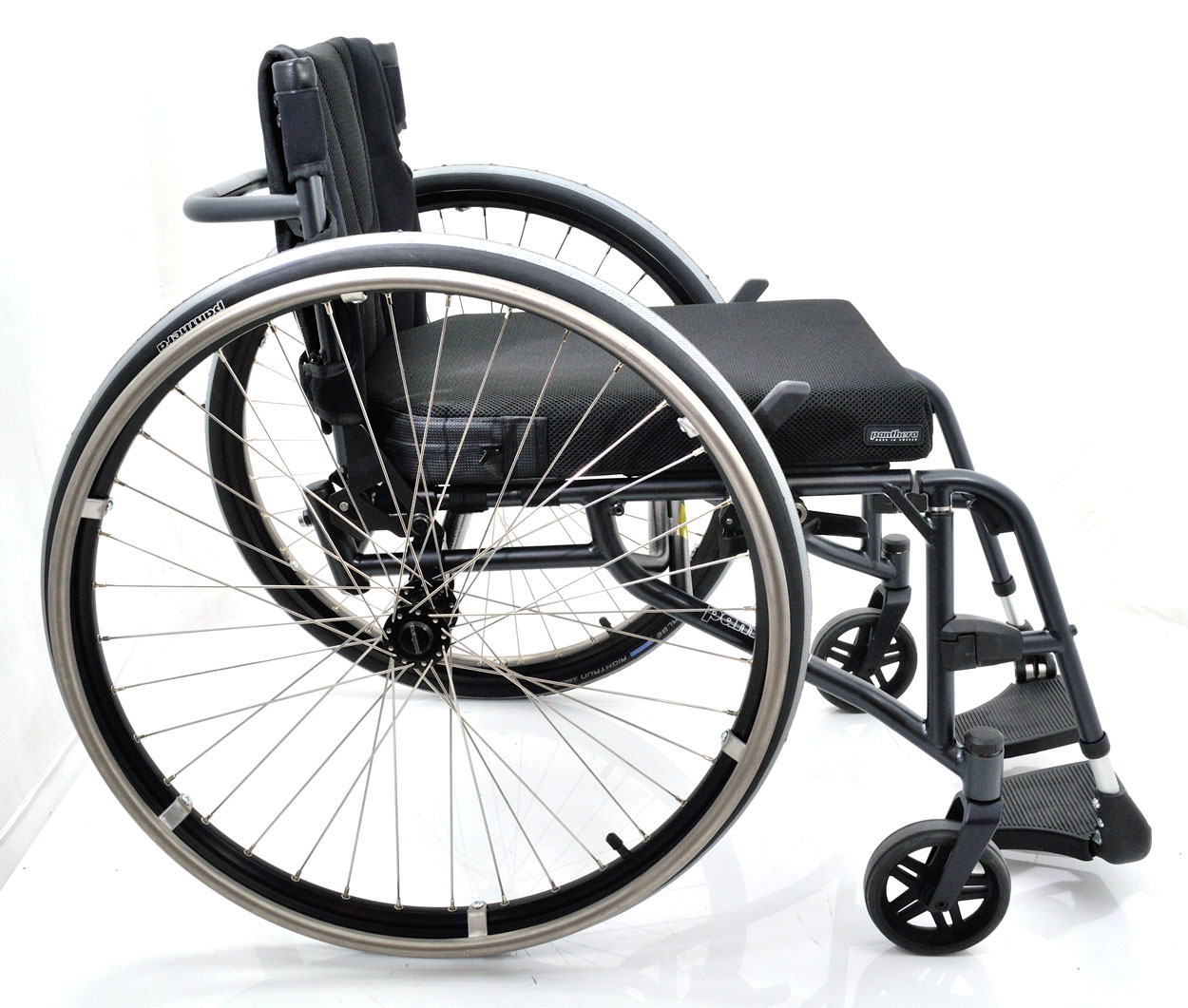

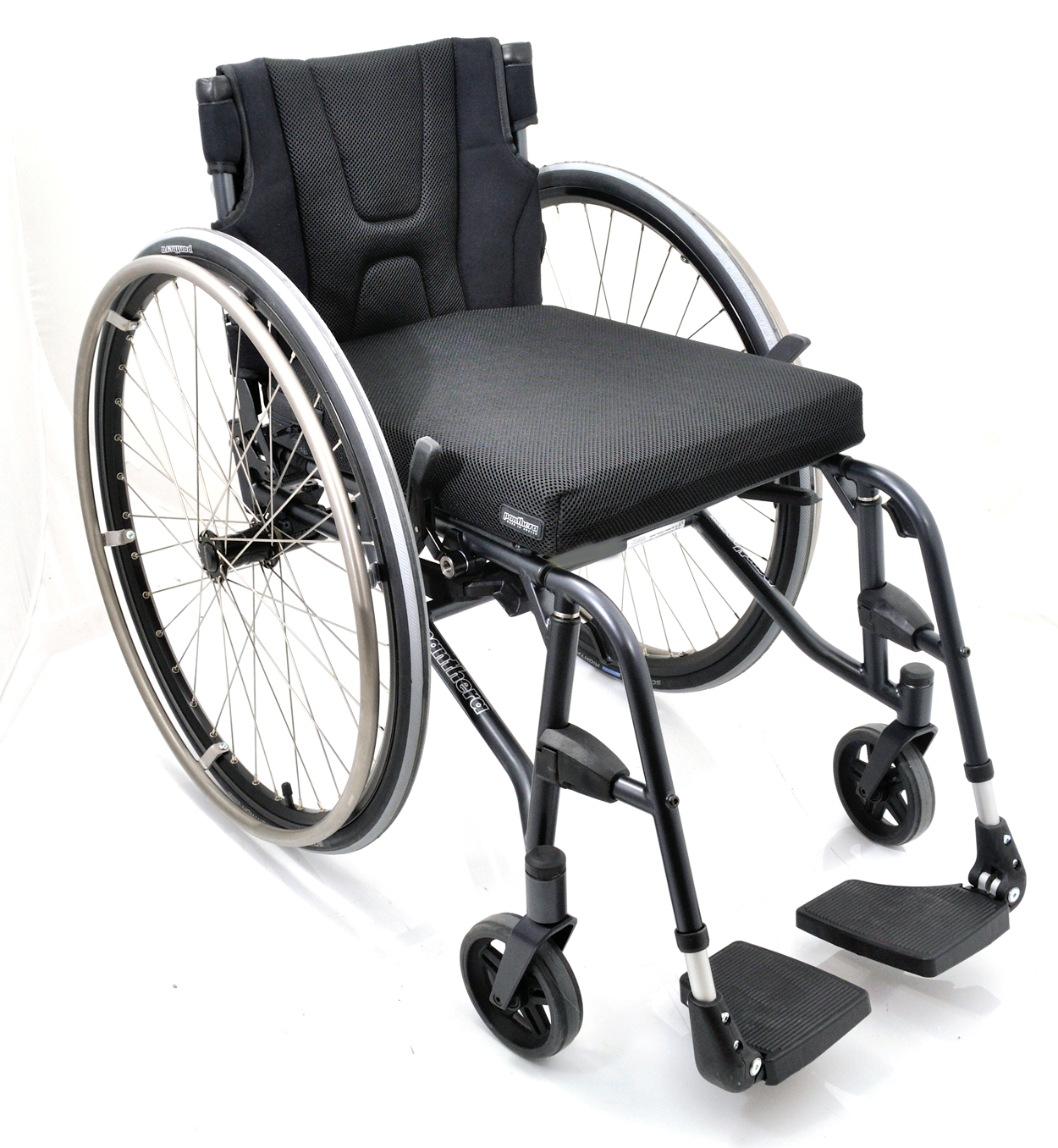

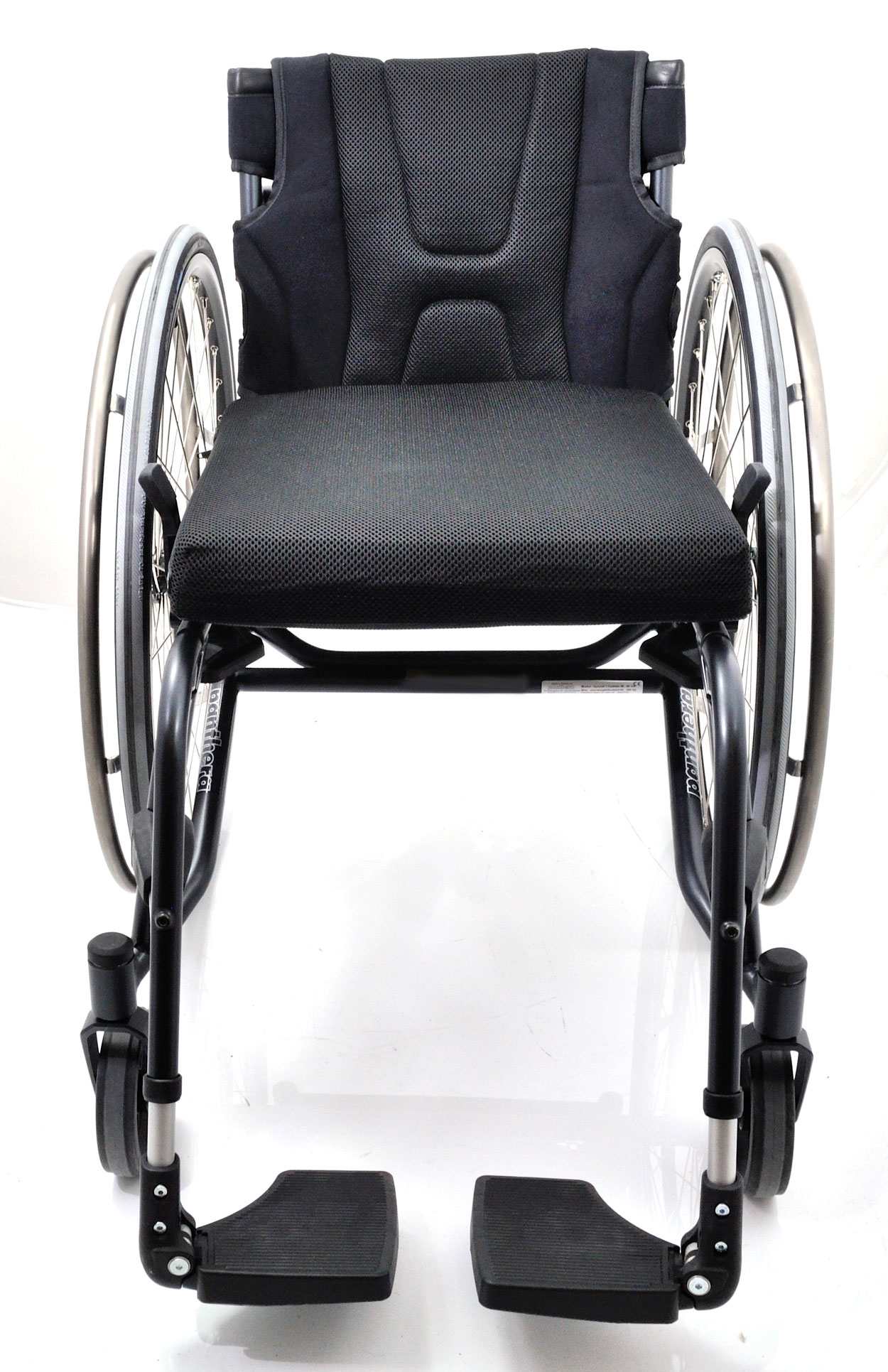

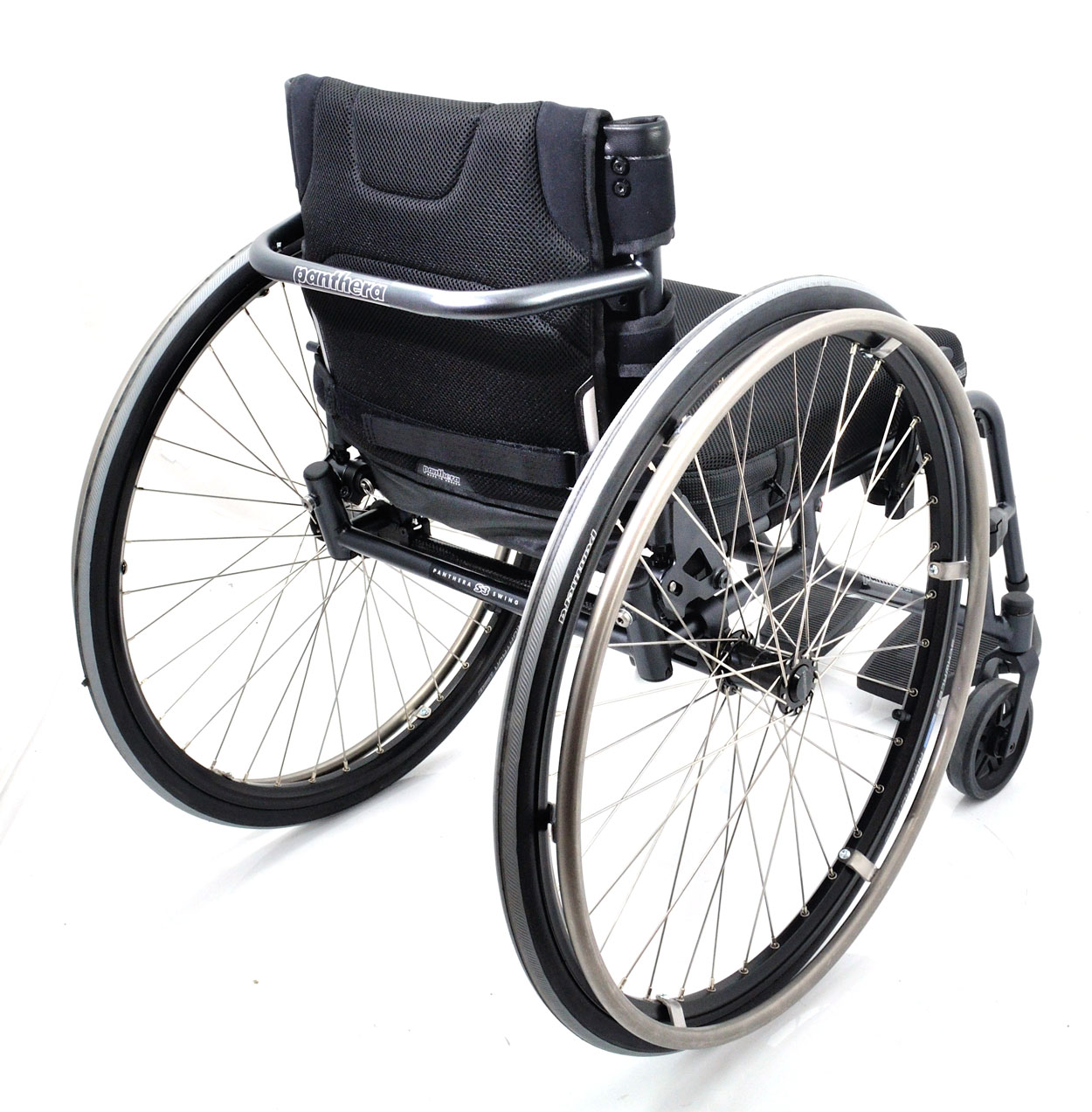

PANTHERA S3 SWING LOW 0°

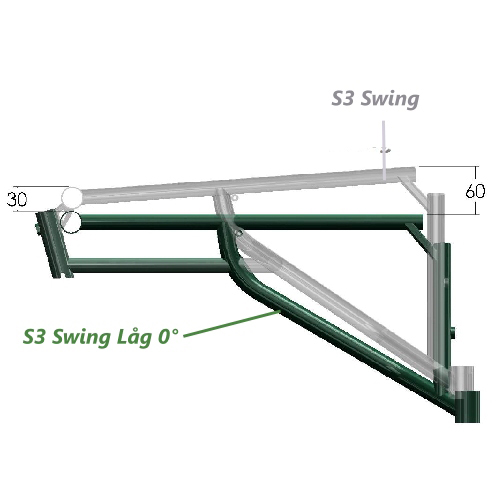

Panthera S3 Swing Low 0° has compared to S3 Swing a flat seat angle.
The seat height at the front and the rear is 39 cm with 24" rear wheels or 36,5 cm med 22" rear wheels.

Otherwise it has the same specifications as S3 SWING.
Highslide JS
You are here: start / products / extended range wheelchairs / S3 Swing Low 0
TRANSPORT WEIGHT: from 4570 g

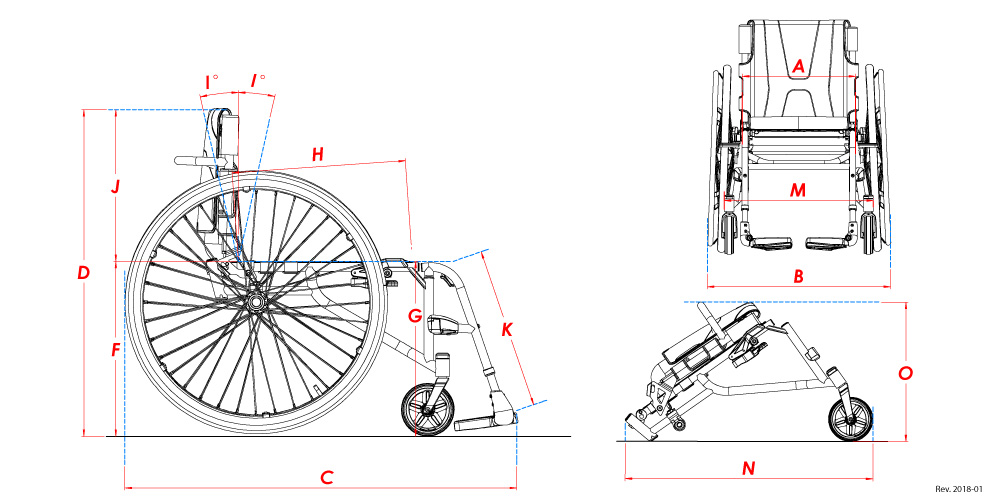

FACTS S3 SWING LOW 0°


Model code   G5837 G5837 G5837 G5837 G5837
A Seat width cm   36 39 42 45 50
B Total width   57 60 63 66 71
C Total length cm   93 93 93 93 93
D Total height cm   61,5-81,5 61,5-81,5 61,5-81,5 61,5-81,5 61,5-81,5
E Seat angle degrees   0° 0° 0° 0° 0°
F Seat height rear cm   39 39 39 39 39
G Seat height front cm   39 39 39 39 39
H Seat depth cm   35,37.5,40 35,37.5,40 35,37.5,40 35,37.5,40 35,37.5,40
I Backrest angle back - forwards   10,3 (-5°) 10,3 (-5°) 10,3 (-5°) 10,3 (-5°) 10,3 (-5°)
J Backrest height cm   20 - 45 20 - 45 20 - 45 20 - 45 20 - 45
K Footrest height in cm for the footrest positions
  Foldable footrest   38,40,42,44,46 38,40,42,44,46 38,40,42,44,46 38,40,42,44,46 38,40,42,44,46
  Foldable footrest extended   40,42,44,46,48 40,42,44,46,48 40,42,44,46,48 40,42,44,46,48 40,42,44,46,48
L Footrest angle degrees   109° 109° 109° 109° 109°
M Width cm   49 52 55 58 63
N Length cm   68 68 68 68 68
O Height cm   50 50 50 50 50
  Weight
Total (g)   9370 9470 9570 9870 10270
  Transport (g)   4570 4670 4770 4970 5470
  User weight (kg)   100 100 100 150 150
WEIGHT CONFIGURATION Art.no. for configuration, not possible to order separately
Chassis Chrome molybdenum Width 36 5837036GP
Rear axle Carbon Width 39 5837039GP
Balancing Ungraded adjustable   Width 42 5837042GP
Rear wheels 24"  Width 45 5837045GP
Push rim Titanium Width 50 5837050GP
Brakes S3
Castors 120 mm
Foot rest Devided footplates
Back rest Ungraded adjustable angle
Back rest upholstery Adjustable
Others Calf band, Tool kit, Manual

ACCESSORIES S3 SWING LOW 0°

ARM REST S3
SIDEGUARD S3
PUSH HANDLE
PUSH BAR
CUSHION
ANTI_TIP DEVICE
SEAT BAG
CRUTCH HOLDER
SPOKE PROTECTION
OTHER

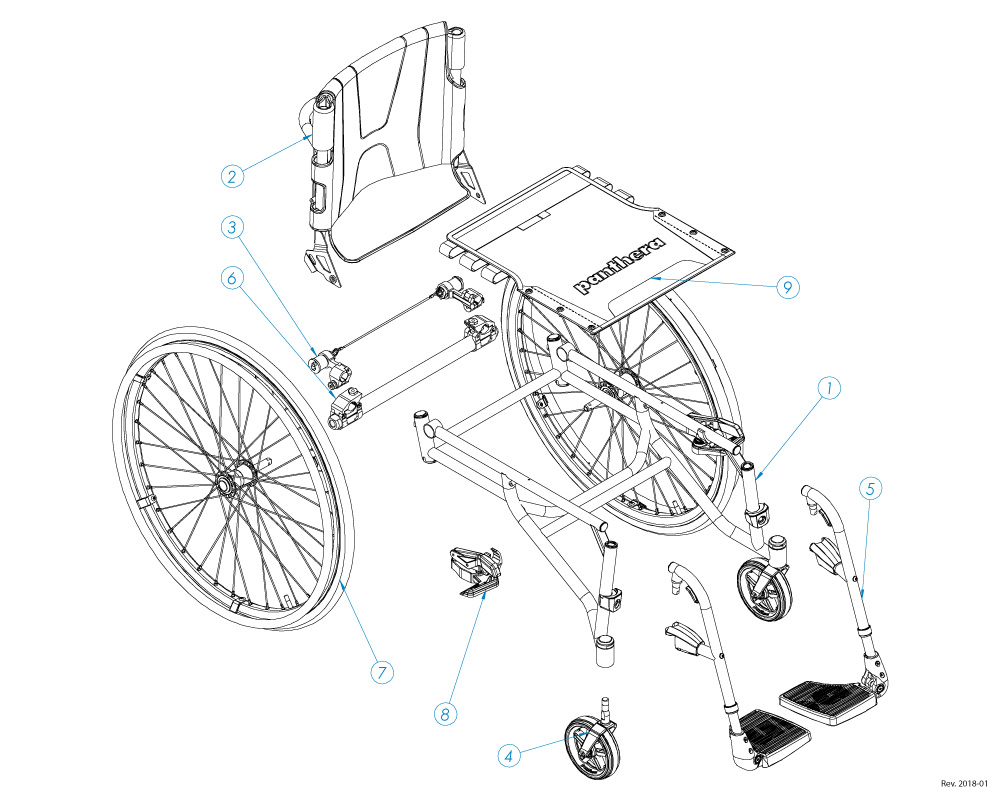

PARTS S3 SWING LOW 0°

Drivhjul Drivhjul Bakaxel Bakaxel sITS SITS cHASSI cHASSI Fotsstöd Rygglås Rygglås Rygg Framgaffel Broms Sits Rygg Drivhjul Chassi Fotstöd Framgaffel Rygg Drivhjul Sits Dyna Sidoskydd Chassi Fotstöd Gaffel Länkhjul
