FITS
S2 / S3 NO / YES
S2 short / S3 short NO / YES
S2 short-low / S3 short-low NO / YES
S2 large / S3 large NO / YES
S2 swing / S3 swing NO / YES
S2 swing-short / S3 swing-short NO / YES
U2 / U3 NO / YES
U2 light / U3 light NO / YES
Bambino NO
Micro NO
Panthera X YES
Attachment for side guard S3 for wheelchairs in the S3 series and for Panthera X. NOTE! Quantity in pc.
DESCRIPTION ART.NO. QTY
Attachment sideguard 1 S3 pc Front for sideguard S3 4420101 pc
Attachment sideguard 3 Rear 24" pc S3 for S3 4420103 pc
Attachment sideguard 4 S3 Rear L pc S3 for S3, 25-26" 4420133 pc
Attachment sideguard 4 S3 Rear R pc S3 for S3, 25-26" 4420134 pc
Attachment sideguard 5 X Front L pc S3 för X 4420271 pc
Attachment sideguard 5 X Front R pc S3 för X 4420272 pc
Attachment sideguard 8 X Rear L pc S3 for X, 24" 4420175 pc
Attachment sideguard 8 X Rear R pc S3 for X, 24" 4420176 pc
Attachment sideguard 9 X Rear L pc S3 for X, 25-26" 4420177 pc
Attachment sideguard 9 X Rear R pc S3 for X, 25-26" 4420178 pc
You are here: start / products / accessories / side guard / attachments / sideguard S3

ATTACHMENT SIDE GUARD S3

Highslide JS
large image

ATTACHMENT FOR SIDE GUARD S3 FOR WHEELCHAIRS IN THE S3 SERIES

Highslide JS

ATTACHMENT FOR SIDE GUARD S3 FOR PANTHERA X

Highslide JS
pos. Description   art.no qty

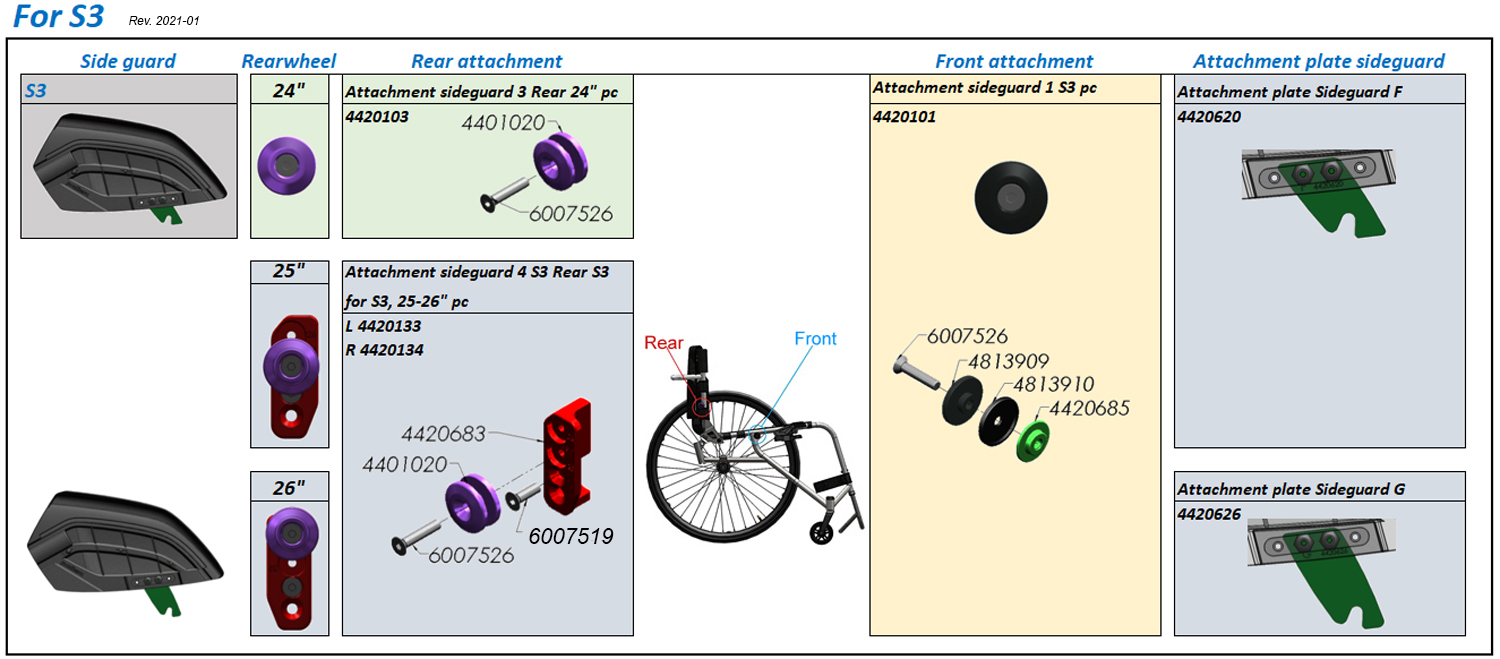

S3 ATTACHMENT FOR SIDE GUARD S3 ON WHEELCHAIRS IN THE S3 SERIES

  REAR ATTACHMENT FOR 24" REAR WHEELS

1 Attachment sideguard 3 Rear 24" pc 4420103 1

  - Roll rear sideguard S3 4401020 1
  - Bolt MF6S M5x25 black drilock 6007526 1

  REAR ATTACHMENT FOR 25" AND 26" REARWHEELS

2 Attachment sideguard 4 S3 S3 for S3, 25-26" Rear L pc 4420133 1

  - Adapter Sideguard D Left Not sold separately 4420693 1
  - Roll rear sideguard S3 4401020 1
  - Bolt MF6S M5x25 black drilock 6007526 1
  - Bolt MF6S M5x16 10.9 FZSV ( Bolt MF6S M5x16 insex black replaced with 6007519 ) 6007519 ( 6007518 ) 1

2 Attachment sideguard 4 S3 S3 for S3, 25-26" Rear R pc 4420134 1

  - Adapter Sideguard D Right Not sold separately 4420683 1
  - Roll rear sideguard S3 4401020 1
  - Bolt MF6S M5x25 black drilock 6007526 1
  - Bolt MF6S M5x16 10.9 FZSV ( Bolt MF6S M5x16 insex black replaced with 6007519 ) 6007519 ( 6007518 ) 1

  FRONT ATTACHMENT FOR 24", 25", 26" REAR WHEELS

3 Attachment sideguard 1 S3 Front for sideguard S3 pc 4420101 1

  - Roll inside sideguard S3 4420685 1
  - Roll sideguard U2 light outer 4813909 1
  - Roll sideguard U2 light inner 4813910 1
  - Bolt MF6S M5x25 black drilock 6007526 1

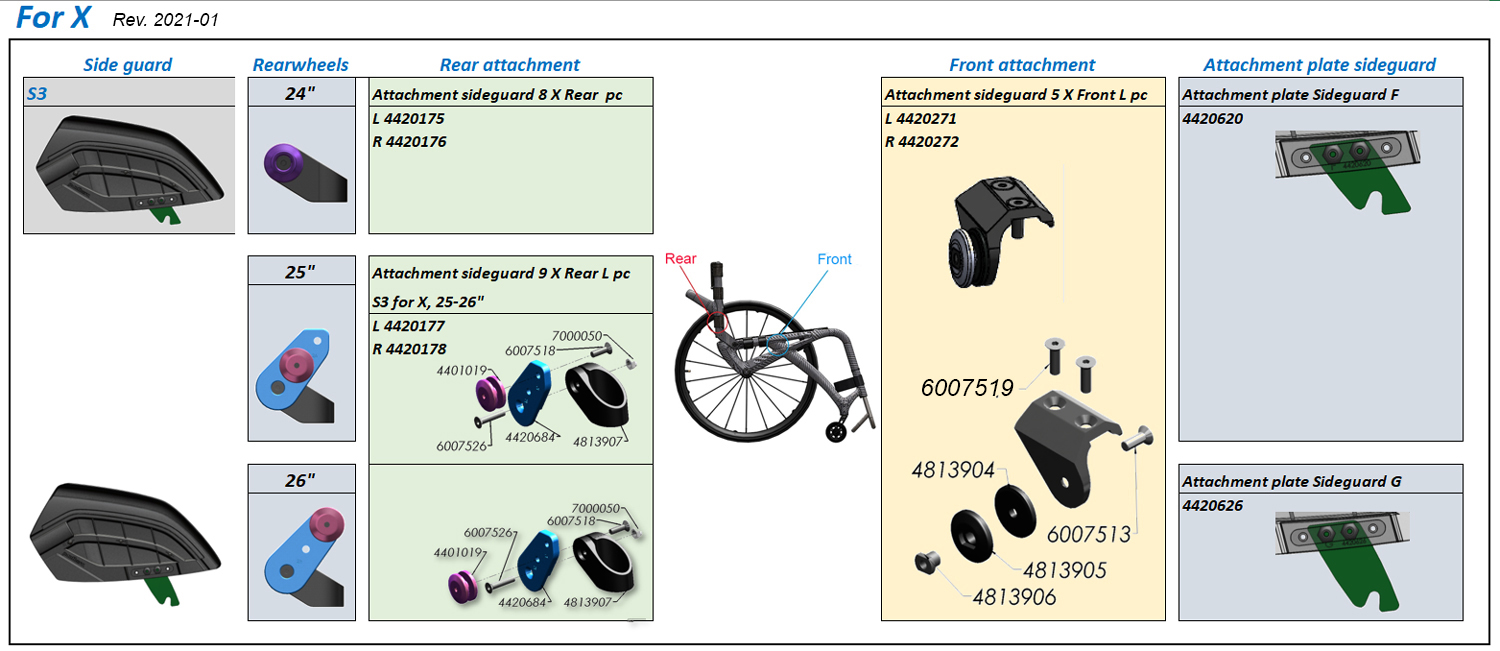

X ATTACHMENT FOR SIDE GUARD S3 PÅ WHEELCHAIR PANTHERA X

  REAR ATTACHMENT FOR 24" REARWHEELS

4 Attachment sideguard 8 X Rear L pc S3 for X, 24" 4420175 1
  Attachment sideguard 8 X Rear R pc S3 for X, 24" 4420176 1

  REAR ATTACHMENT FOR 25" AND 26"REARWHEELS

5 Attachment sideguard 9 X Rear L pc S3 for X, 25-26" 4420177 1

  - Attachment sideguard X rear left 4813914 1
  - Adapter Sideguard E Left Not sold separately 4420694 1
  - Roll rear sideguard S3 for X 25-26" 4401019 1
  - Bolt MF6S M5x25 black drilock 6007526 1
  - Bolt MF6S M5x16 10.9 FZSV ( Bolt MF6S M5x16 insex black replaced with 6007519 ) 6007519 ( 6007518 ) 1
  - Lock nut DIN 985 steel M5 fzb 7000050 1

5 Attachment sideguard 9 X Rear R pc S3 for X, 25-26" 4420178 1

  - Attachment sideguard X rear right 4813907 1
  - Adapter Sideguard E Right Not sold separately 4420684 1
  - Roll rear sideguard S3 for X 25-26" 4401019 1
  - Bolt MF6S M5x25 black drilock 6007526 1
  - Bolt MF6S M5x16 10.9 FZSV ( Bolt MF6S M5x16 insex black replaced with 6007519 ) 6007519 ( 6007518 ) 1
  - Lock nut DIN 985 steel M5 fzb 7000050 1

  FRONT ATTACHMENT FOR 24", 25", 26"REARWHEELS

6 Attachment sideguard 5 X Front L pc 4420271 1

  - Attachment side guard X front left 4813913 1
  - Roll sideguard X inner 4813904 1
  - Roll sideguard X outer 4813905 1
  - Nut sideguard X 4813906 1
  - Bult MF6S M5x14 Försänkt svart FZSV 6007513 1
  - Bolt MF6S M5x16 10.9 FZSV ( Bolt MF6S M5x16 insex black replaced with 6007519 ) 6007519 ( 6007518 ) 2

6 Attachment sideguard 5 X Front R pc 4420272 1

  - Attachment side guard X front right 4813903 1
  - Roll sideguard X inner 4813904 1
  - Roll sideguard X outer 4813905 1
  - Nut sideguard X 4813906 1
  - Bult MF6S M5x14 Försänkt svart FZSV 6007513 1
  - Bolt MF6S M5x16 10.9 FZSV ( Bolt MF6S M5x16 insex black replaced with 6007519 ) 6007519 ( 6007518 ) 2

7 Attachment plate Sideguard F (included with the side guard) Sideguard S3 on S3 and X 24-25" (Attachment plate Sideguard S3/U2L) 4420620 1
8 Attachment plate Sideguard G (included with the side guard) Sideguard S3 on S3 and X 26" (Attachment plate Sideguard S3 26") 4420626 1
