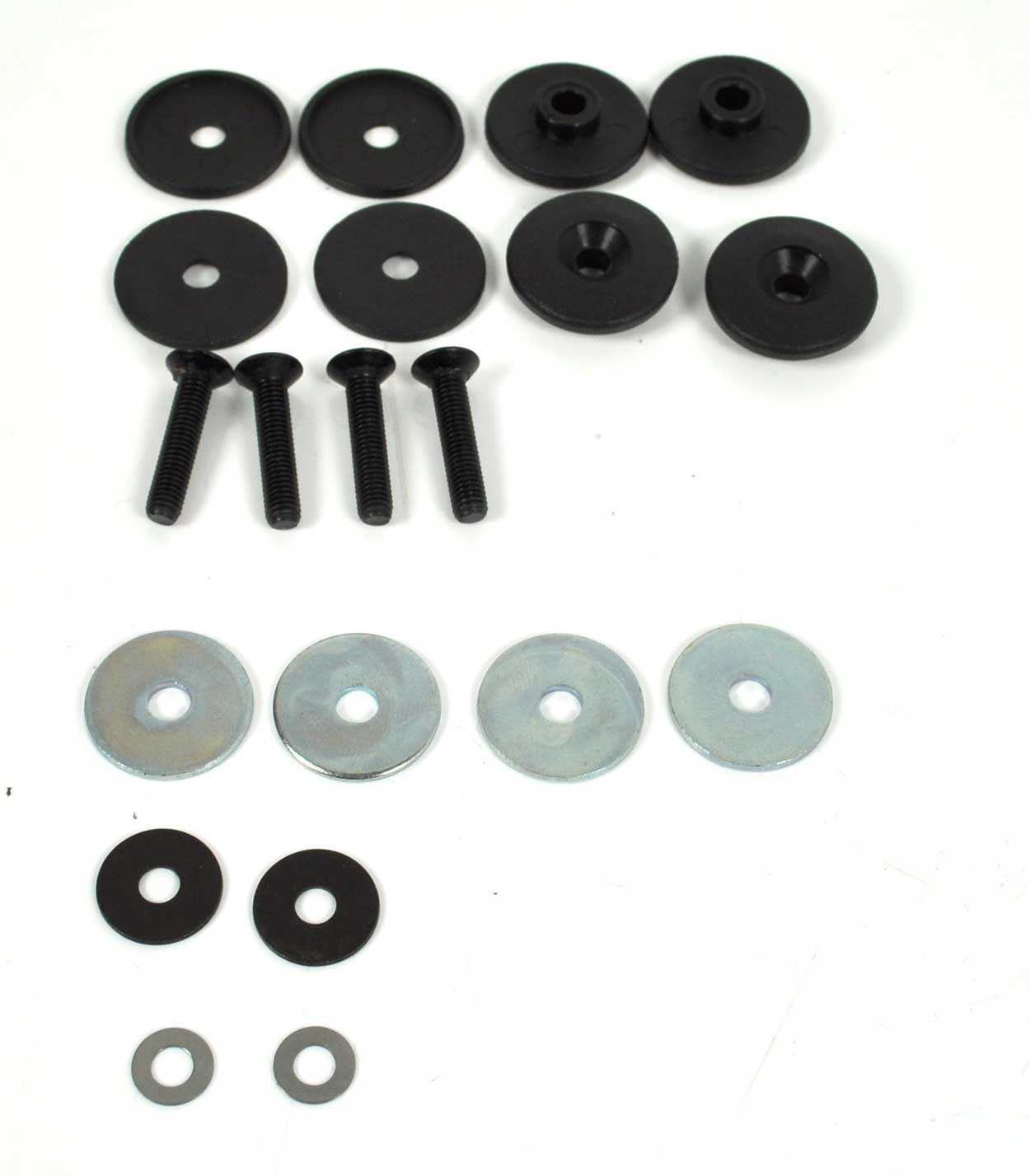

Attachment for side guard Carbon on wheelchair S3, U3, U2 / U3 light.   NOTE! When mounting on the older U2 light- backrest you need a long M5x35 mm screw for the rear attachnent. See images for more info. Specify the type of backrest when ordering.
DESCRIPTION ART.NO. QTY
Attachment sideguard carbon U2L 24" 4420650 par
Attachment sideguard carbon U2L 25-26" With backrest 30-35 4420651 par
Attachment sideguard carbon U2L 25-26" With backrest 25 4420652 par
You are here: start / products / accessories / side guard / attachment /Carbon on U2 light

ATTACHMENT SIDE GUARD CARBON

Highslide JS
large image
oLightBox.com v3.0

EXPLODED VIEW REARWHEEL 24"

pos Description  art.no qty
1 Roll sideguard U2 light inner 4813910 2
2 Bolt MF6S M5x25 insex fzb 6007526 2
2B Bolt MF6S M5x16 insex black + Lock nut DIN 985 steel M5 fzb 7007545+7000050 2
3 Washer SRKB 5,5x22x1 8000522 2
4 Roll sideguard U2 light outer 4813909 1
5 Washer M5x16x1 8000516 1
6 Washer PS 5x10x0,5 DIN 988 8000512 1
oLightBox.com v3.0

EXPLODED VIEW REARWHEEL 25-26" rear attachment for back rest height 30,35,40 cm

pos Description  art.no qty
1 Tinplate 26" right 4420231 1
1 Tinplate 26" left 4420232 1
2 Roll sideguard X outher 4813905 1
3 Nut sideguard X 4813906 1
4 Roll sideguard X inner 4813904 1
5 Bolt MF6S M5x20 black 6007520 1
6 Bolt MF6S M5x14 insex fzb 6007514 1
7 Bolt MF6S M5x30 insex black 6007531 1
8 Bushing nut sideguard U2 light 4420218 1
9 Clamp backrest U2 light Not possible to order separately 4601130 1
10 Bracket armrest clamp 4410021 2
11 Washer NB steel 6x16x1 fzb 8000616 2
oLightBox.com v3.0

EXPLODED VIEW REARWHEEL 25-26" rear attachment for backrest height 25 cm

pos Description  art.no qty
1 Tinplate 26" 25 cm backrest right 4420241 1
1 Tinplate 26" 25 cm backrest left 4420242 1
2 Roll sideguard X outher 4813905 1
3 Nut sideguard X 4813906 1
4 Roll sideguard X inner 4813904 1
5 Bolt MF6S M5x20 black 6007520 1
6 Bolt MF6S M5x14 insex fzb 6007514 1
7 Bolt MF6S M5x30 insex black 6007531 1
8 Bushing nut sideguard U2 light 4420218 1
9 Clamp backrest U2 light Not possible to order separately 4601130 1
10 Bracket armrest clamp 4410021 2
11 Washer NB steel 6x16x1 fzb 8000616 2
oLightBox.com v3.0

EXPL. VIEW diff. between 25", 26" rearwheel rear attachment and 25 cm backrest

25" rear wheels

26" rear wheels

Note the difference in location of the attacment roll for 25" and 26"
