PANTHERA U3 LIGHT Y-FRONT LOW


- U3 Light Y-front Low has full frame width for the users thighs

- Narrows in the front to collect the feet on a foot bow

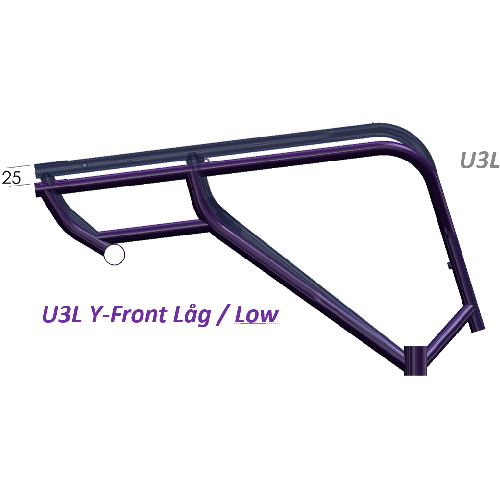

- U3 Light Y-front Low is 25 mm lower than U3 Light

- Otherwise it has the same specifications as U3 LIGHT
Highslide JS
You are here: start / products / extended range wheelchairs / U3 ligh Y-front Low
TRANSPORT WEIGHT: from 3670 g

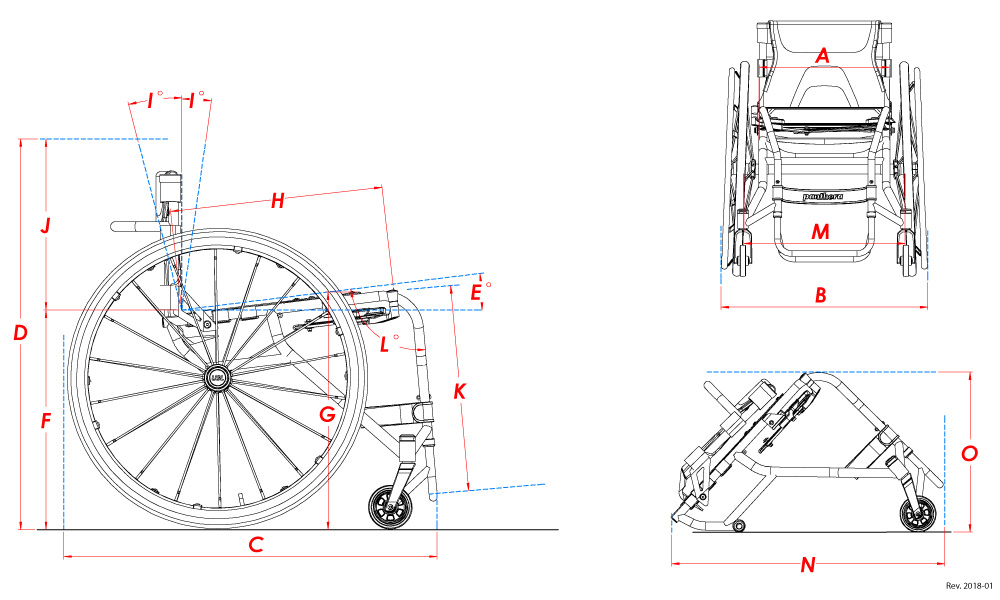

FACTS U3 LIGHT Y-FRONT LOW




  Model code G5809 G5809 G5809 G5809 G5809
A Seat width cm 33 36 39 42 45
B Total width 54 57 60 63 66
C Total length cm 82 82 82 82 82
D Total height cm 64-74 64-74 64-74 64-74 64-74
E Seat angle degrees
F Seat height rear cm 40,5 40,5 40,5 40,5 40,5
G Seat height front cm 44,5 44,5 44,5 44,5 44,5
H Seat depth cm 35, 37,5, 40, 42,5 35, 37,5, 40, 42,5 35, 37,5, 40, 42,5 35, 37,5, 40, 42,5 35, 37,5, 40, 42,5
I Backrest angle back - forwards 11,5°- (-4,5°) 11,5°- (-4,5°) 11,5°- (-4,5°) 11,5°- (-4,5°) 11,5°- (-4,5°)
J Backrest height cm 25,30,35 25,30,35 25,30,35 25,30,35 25,30,35
K Footrest height in cm for the footrest positions

  Footrest standard 36*,38,40,42,44 36*,38,40,42,44 36*,38,40,42,44 36*,38,40,42,44 36*,38,40,42,44
  Footrest extended 38*,40,42,44,46 38*,40,42,44,46 38*,40,42,44,46 38*,40,42,44,46 38*,40,42,44,46
L Footrest angle degrees 100° 100° 100° 100° 100°
M Width cm 40 43 46 49 51
N Length cm 74 74 74 74 74
O Height cm 37 37 37 37 37
  Weight

  Total U3 Light Y Front Low (g) 5970 6020 6070 6120 6170

Transport U3 Light Y Front Low (g) 3670 3720 3770 3820 3870

User weight (kg) 100 100 100 100 100
WEIGHT CONFIGURATION Art.no. for konfiguration. Not possible to order separately.
Chassis Chrome molybdenum tubing Width 33 5809133GP
Rear axle U3 light Width 36 5809136GP
Balancing Standard or Light (L) and 3 backrest positions Width 39 5809139GP
Rear wheels 24" X wheels Width 42 5809142GP
Push rim Aluminium Width 45 5809145GP
Brakes Onehand brake
Castors 87 mm X castors
Foot rest Aluminum X
Back rest Ungraded adjustable angle
Back rest upholstery Adjustable
Others Calf band, Tool kit, Manual *Need to shorten the footrest

ACCESSORIES U3 LIGHT Y-FRONT LOW

ARM SUPPORT S3
SIDE GUARD S3
SIDE GUARD CARBON
SIDE GUARD CARBON SMALL
SIDE GUARD CARBON LARGE
PUSH HANDLE FOLDABLE
CUSHION
SEAT BAG
OTHER

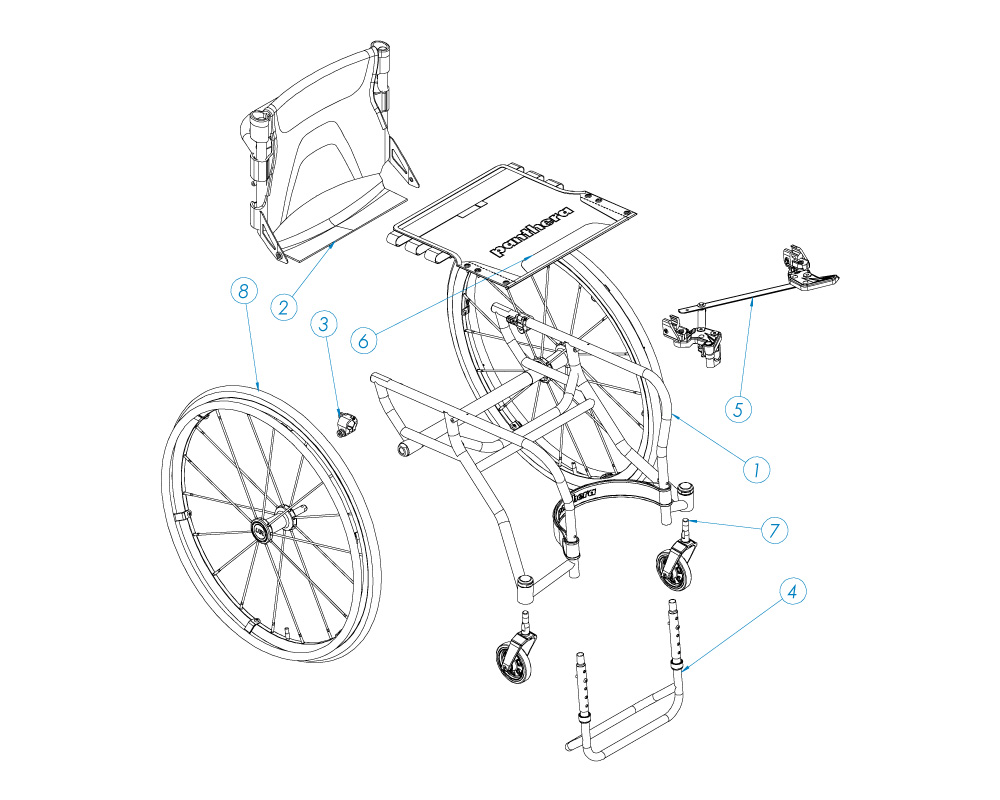

PARTS U3 LIGHT Y-FRONT LOW

Rygg Drivhjul Sits Dyna Sidoskydd Chassi Fotstöd Gaffel Länkhjul
