PANTHERA U3 LIGHT Y-FRONT 90°

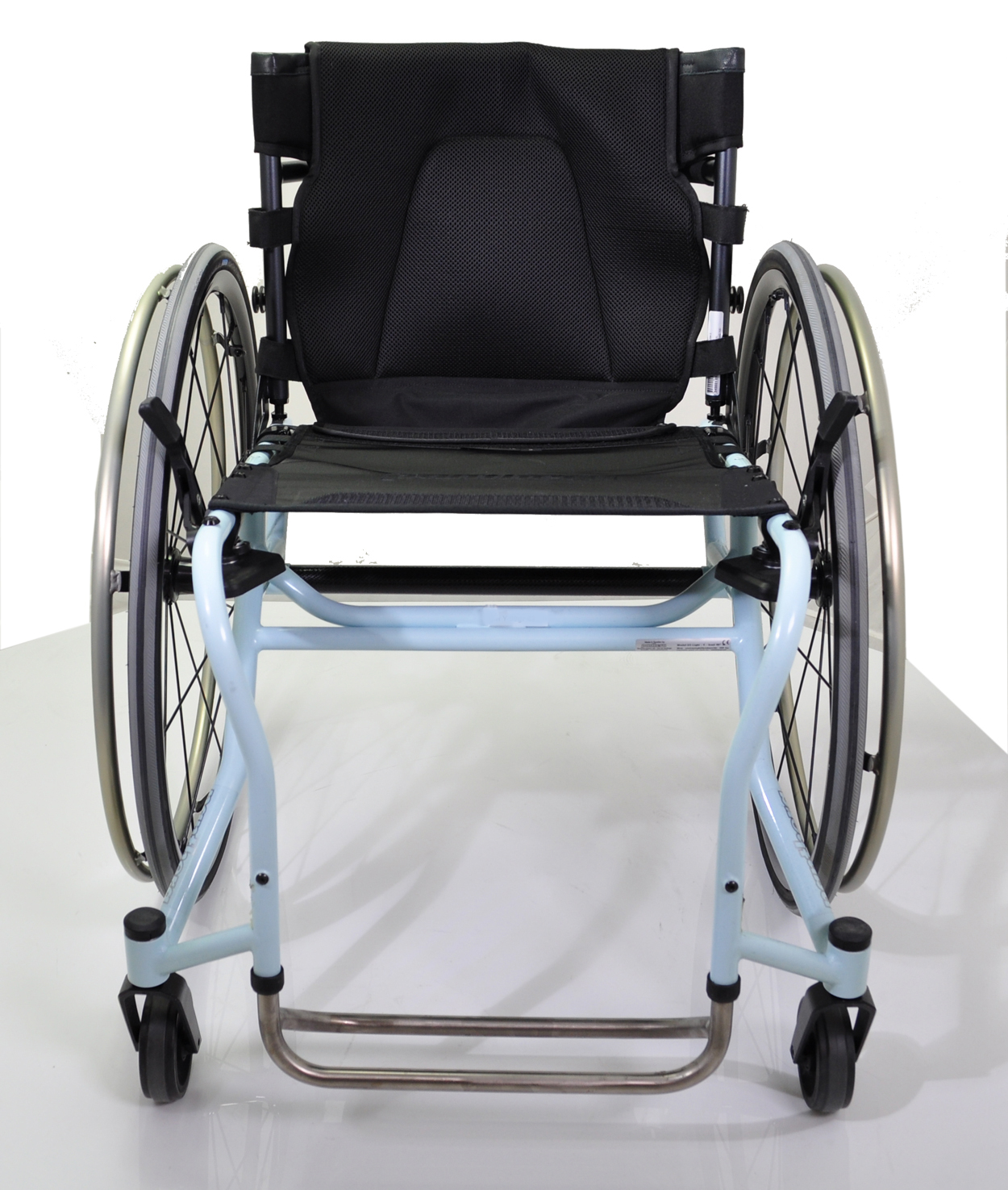

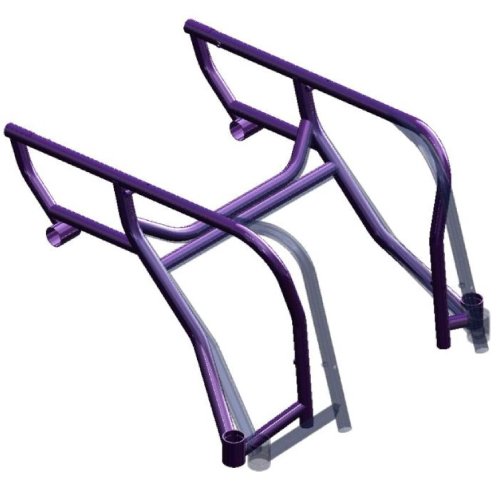

U3 light with a Y-front 90 gives full frame width for the user's thighs and then narrows down the frame front to the fixed footplate,
where the feet rest together.

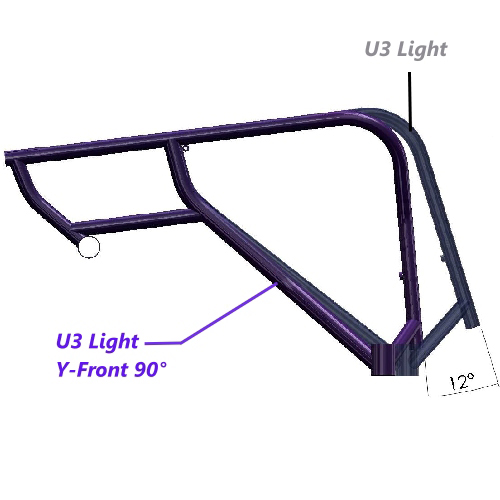

U3 Light Y-front 90° has a right angle, between the frame front and the seat.

Otherwise it has the same specifications as U3 LIGHT.
Highslide JS
You are here: start / products / extended range wheelchairs / U3 light Y-front 90
TRANSPORT WEIGHT: from 4000 g

FACTS U3 LIGHT Y-FRONT 90°




  Model code G5806 G5806 G5806 G5806 G5806
A Seat width cm 33 36 39 42 45
B Total width 54 57 60 63 66
C Total length cm 73 73 73 73 73
D Total height cm 66-76 66-76 66-76 66-76 66-76
E Seat angle degrees
F Seat height rear cm 43 43 43 43 43
G Seat height front cm 47 47 47 47 47
H Seat depth cm 35-40 35-40 35-40 35-40 35-40
I Backrest angle back - forwards 11,5°- (-4,5°) 11,5°- (-4,5°) 11,5°- (-4,5°) 11,5°- (-4,5°) 11,5°- (-4,5°)
J Backrest height cm 25,30,35 25,30,35 25,30,35 25,30,35 25,30,35
K Footrest height in cm for the footrest positions

  Footrest extended 36*,38,40,42,44 36*,38,40,42,44 36*,38,40,42,44 36*,38,40,42,44 36*,38,40,42,44
L Footrest angle degrees 90° 90° 90° 90° 90°
M Width cm 40 43 46 49 51
N Length cm 65 65 65 65 65
O Height cm 38,5 38,5 38,5 38,5 38,5
  Weight

  Total Y3 light 90° (g) 6300 6350 6400 6450 6500

Transport Y3 light 90° (g) 4000 4050 4100 4150 4200

User weight (kg) 100 100 100 100 100
WEIGHT CONFIGURATION Art.no. for konfiguration. Not possible to order separately.
Chassis Chrome molybdenum tubing Width 33 5806033GP
Back rest Ungraded adjustable angle Width 36 5806036GP
Back rest upholstery Adjustable  Width 39 5806039GP
Rear axle Carbon U3 Light Width 42 5806042GP
Balancing Standard or Light (L) and 3 backrest positions Width 45 5806045GP
Rear wheels 24" X wheels
Push rim Aluminum
Brakes Onehand brake
Castors X 87 mm
Foot rest Titanium reinforced
Others Calf band, Tool kit, Manual *Need to shorten the footrest

ACCESSORIES U3 LIGHT Y-FRONT 90°

ARM SUPPORT S3
SIDE GUARD S3
SIDE GUARD CARBON
SIDE GUARD CARBON SMALL
SIDE GUARDCARBON LARGE
PUSH HANDLE FOLDABLE
CUSHION
SEAT BAG
OTHER

PARTS U3 LIGHT Y-FRONT 90°

Rygg Drivhjul Sits Dyna Sidoskydd Chassi Fotstöd Gaffel Länkhjul
