PANTHERA U2

Panthera U2 has expired. Not possible to order.

See our new PRODUCTS.
Highslide JS
You are here: start / support / expired articles / U2
TRANSPORTWEIGHT: from 4714 g
Panthera AB • Gunnebogatan 26 • 163 53 Spånga • Sweden• SE_Box_Spanga@permobil.com • Tel: +46-8-761 50 40

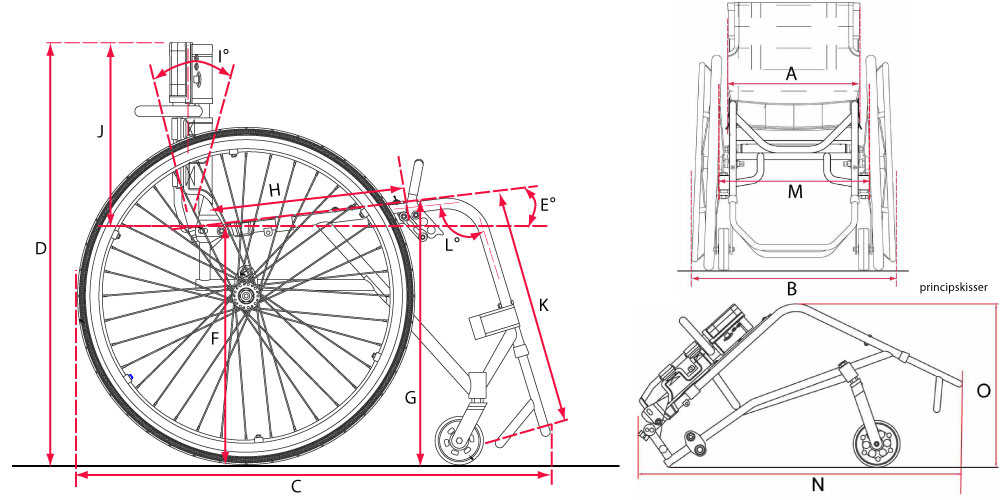

FACTS U2




  Model code   G351 G351 G351 G351 G351
A

Seat width cm

  33 36 39 42 45
B Total width   54 57 60 63 66
C Total length cm   84,5 84,5 84,5 84,5 84,5
D Total height cm   64-84 64-84 64-84 64-84 64-84
E Seat angle degrees   7° 7° 7° 7° 7°
F Seat height rear cm   43 43 43 43 43
G Seat height front cm   47 47 47 47 47
H Seat depth cm   35-46 35-46 35-46 35-46 35-46
I Backrest angle back - forwards   11,5° -( -7,3°) 11,5° -( -7,3°) 11,5° -( -7,3°) 11,5° -( -7,3°) 11,5° -( -7,3°)
J Backrest height cm   20 - 45 20 - 45 20 - 45 20 - 45 20 - 45
K Footrest height mm min - max   40-120 40-120 40-120 40-120 40-120
L Footrest angle degrees   100° 100° 100° 100° 100°
M Width cm   41 44 47 50 53
N Length cm   72 72 72 72 72
O Height cm   38 38 38 38 38
  Weight
  Total (g)   8220 8330 8390 8450 8686

Transport (g)   4714 4774 4834 4894 5130

User weight (kg)   100 100 100 100 150
STANDARD DESIGN   Art.no. for configuration, not possible to order separately
Chassis Chrome molybdenum tubing black Width 33 3513300BLG
Rear axle Carbon Width 36 3513600BLG
Balancing Ungraded adjustable  Width 39 3513900BLG
Rear wheels 24" Width 42 3514200BLG
Push rim Titanium Width 45 3514500BLG
Brakes High brake
Castors 3"
Foot rest Titanium
Back rest Ungraded adjustable angle
Back rest upholstery Adjustable
Others Calf band, Tool kit, Manual

ACCESSORIES U2

PUSH HANDLES
CUSHION
ARM REST
SIDEGUARD WITH COVER
SIDEGUARD PLAST
ANTI-TIP DEVICE
SEAT BAG
CRUTCH HOLDER
SPOKE PROTECTORS
OTHERS

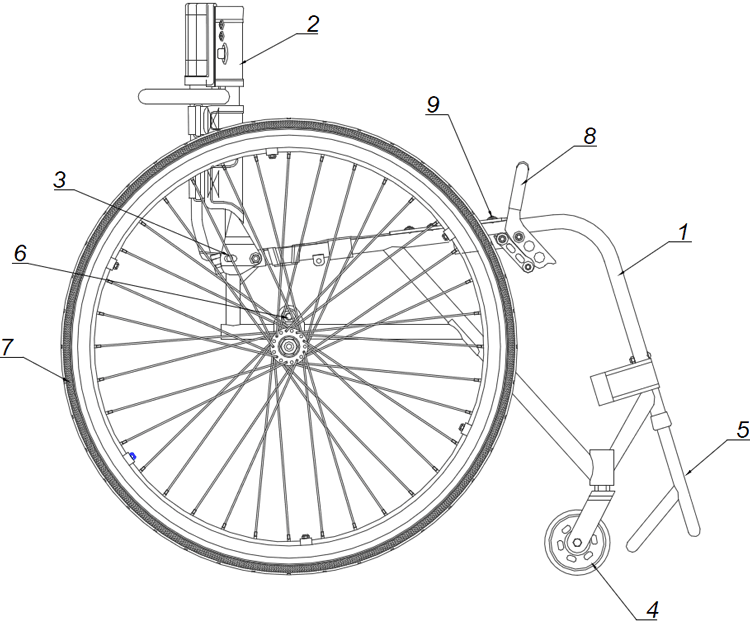

PARTS U2

Framgaffel Fotstöd Chassi Drivhjul Bakaxel Rygglås Rygg Broms Sits Broms Sits Rygg Drivhjul Chassi Fotstöd Framgaffel Rygg Drivhjul Sits Dyna Sidoskydd Chassi Fotstöd Gaffel Länkhjul
