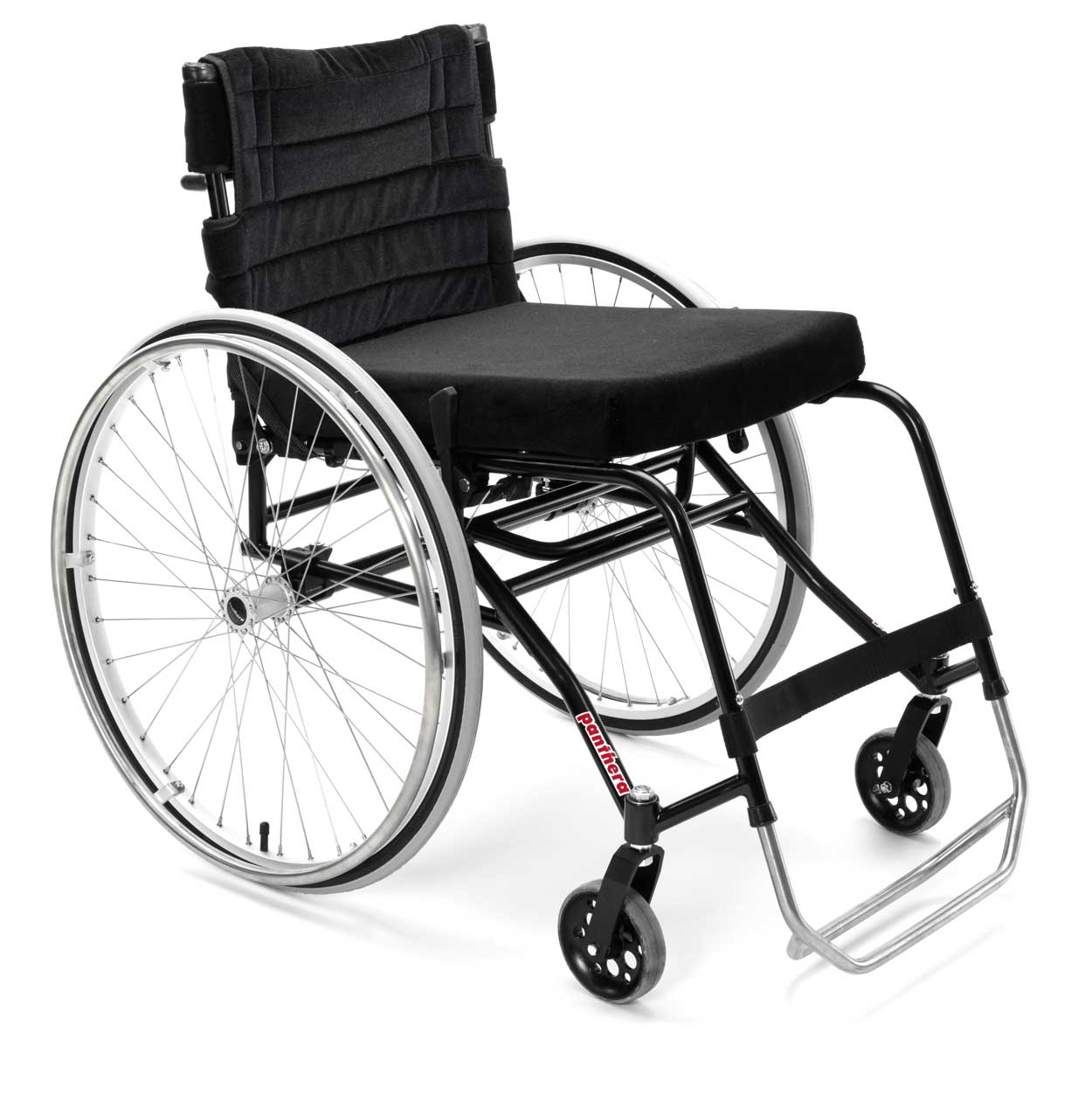

PANTHERA S2 LARGE

Panthera S2 large has expired. Not possible to order.

See our new PRODUCTS.
Highslide JS
You are here: start / support / expired articles / S2 large
TRANSPORT WEIGHT: from 5614 g
Panthera AB • Gunnebogatan 26 • 163 53 Spånga • Sweden• SE_Box_Spanga@permobil.com • Tel: +46-8-761 50 40

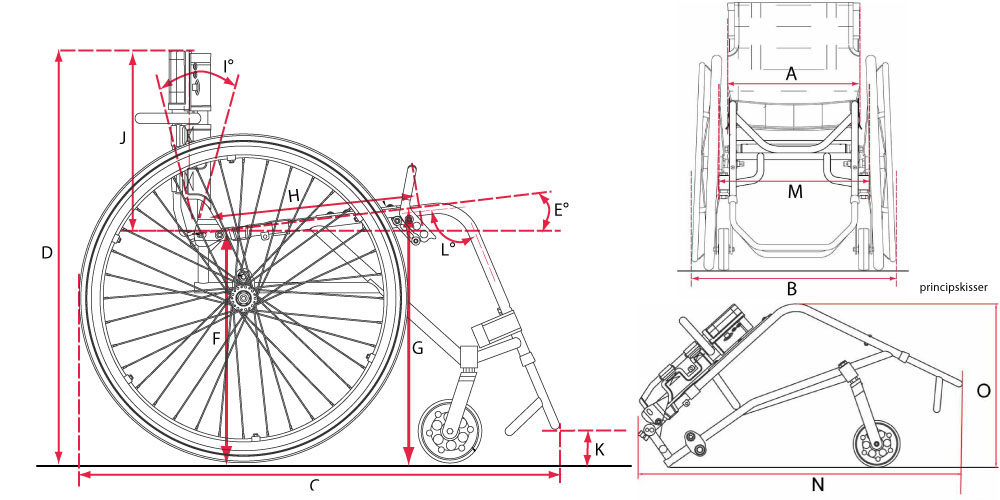

FACTS S2 LARGE


  Model code G354 G354 G354 G354
A Seat width cm 39 42 45 50
B Total width 60 63 66 71
C Total length cm 78-90 78-90 78-90 78-90
D Total height cm 66.,5-86.5 66.,5-86.5 66.,5-86.5 66.,5-86.5
E Seat angle degrees 7° 7° 7° 7°
F Seat height rear cm 45,5 45,5 45,5 45,5
G Seat height front cm 49,5 49,5 49,5 49,5
H Seat depth cm 45 45 45 45
I Backrest angle back - forwards 11,5° -( -7,3°) 11,5° -( -7,3°) 11,5° -( -7,3°) 11,5° -( -7,3°)
J Backrest height cm 20 - 45 20 - 45 20 - 45 20 - 45
K Footrest height mm min - max 35-115 35-115 35-115 35-115
L Footrest angle degrees 105° 105° 105° 105°
M Width cm 52 55 58 63
N Length cm 80 80 80 80
O Height cm 40.5 40.5 40.5 40.5
  Weight
Total (g) 9170 9230 9466 9526
Transport (g) 5614 5674 5910 5970
User weight (kg) 150 150 150 150
STANDARD DESIGN Art.no. for configuration, not possible to order separately
Chassis Chrome molybdenum Width 39 3543900BLG
Rear axle Carbon Width 42 3544200BLG
Balancing Ungraded adjustable   Width 45 3544500BLG
Rear wheels 24"  Width 50 3545000BLG
Push rim Titanium
Brakes High brake
Castors 5"
Foot rest Titanium
Back rest Ungraded adjustable angle
Back rest upholstery Adjustable
Others Calf band, Tool kit, Manual

ACCESSORIES S2 LARGE

PUSH HANDLES
CUSHION
ARM REST
SIDEGUARD WITH COVER
SIDEGUARD PLAST
ANTI-TIP DEVICE
SEAT BAG
CRUTCH HOLDER
SPOKE PROTECTORS
OTHERS

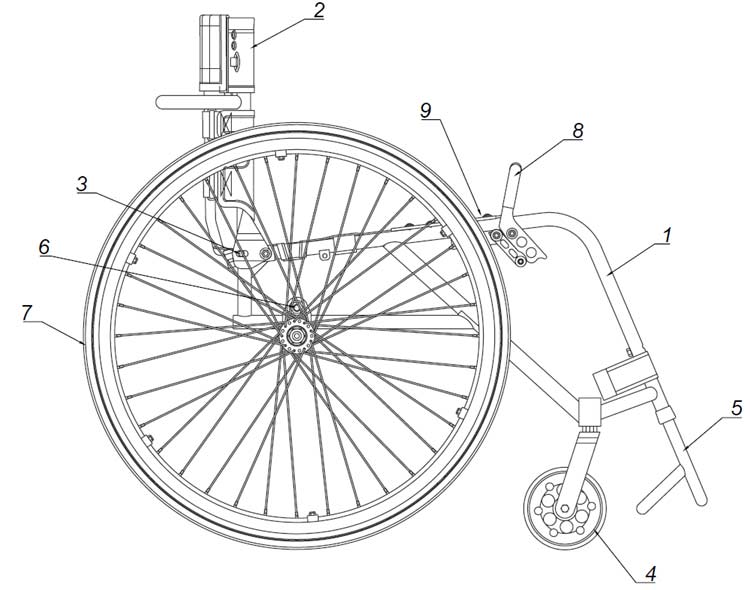

PARTS S2 LARGE

Chassi Rygg Drivhjul Rygglås Broms Bakaxel Bakaxel Sits Fotstöd Gaffel-länkhjul Gaffel-länkhjul Rygglås Chassi Rygg Drivhjul Rygglås Broms Bakaxel Bakaxel Sits Fotstöd Gaffel-länkhjul Gaffel-länkhjul Rygglås Chassi Rygg Drivhjul Rygglås Broms Bakaxel Bakaxel Sits Fotstöd Gaffel-länkhjul Gaffel-länkhjul Rygglås Chassi Rygg Drivhjul Rygglås Broms Bakaxel Bakaxel Sits Fotstöd Gaffel-länkhjul Gaffel-länkhjul Rygglås Broms Sits Rygg Drivhjul Chassi Fotstöd Framgaffel Rygg Drivhjul Sits Dyna Sidoskydd Chassi Fotstöd Gaffel Länkhjul
