Panthera S2 short- Panthera AB - Manufacturer of the world´s lightest wheelchairs


	Model code	G349	G349	G349	G349	G349	G349
A	Seat width cm	30	33	36	39	42	45
B	Total width	51	54	57	60	63	66
C	Total length cm	73-85	73-85	73-85	73-85	73-85	73-85
D	Total height cm	64-84	64-84	64-84	64-84	64-84	64-84
E	Seat angle degrees	7°	7°	7°	7°	7°	7°
F	Seat height rear cm	43	43	43	43	43	43
G	Seat height front cm	47	47	47	47	47	47
H	Seat depth cm	27-33	27-33	35	35	35	35
I	Backrest angle back - forwards	11,5° -( -7,3°)	11,5° -( -7,3°)	11,5° -( -7,3°)	11,5° -( -7,3°)	11,5° -( -7,3°)	11,5° -( -7,3°)
J	Backrest height cm	20 - 45	20 - 45	20 - 45	20 - 45	20 - 45	20 - 45
K	Footrest height mm min - max	35 - 115	35 - 115	35 - 115	35 - 115	35 - 115	35 - 115
L	Footrest angle degrees	105°	105°	105°	105°	105°	105°
M	Width cm	43	46	49	52	55	58
N	Length cm	71	71	71	71	71	71
O	Height cm	38	38	38	38	38	38
	Weight
	Total (g)	8160	8220	8280	8340	8400	8636
	Transport (g)	4604	4664	4724	4784	4844	5080
	User weight (kg)	100	100	100	100	100	150

	STANDARD DESIGN			Art.no. for configuration, not possible to order separately
	Chassis	Chrome molybdenum		Width 30	3493000BLG	3493000G
	Rear axle	Carbon		Width 33	3493300BLG	3493300G
	Balancing	Ungraded adjustable		Width 36	3493600BLG	3493600G
	Rear wheels	24"		Width 39	3493900BLG	3493900G
	Push rim	Titanium		Width 42	3494200BLG	3494200G
	Brakes	High brake		Width 45	3494500BLG	3494500G
	Castors	5"
	Foot rest	Titanium
	Back rest	Ungraded adjustable angle
	Back rest upholstery	Adjustable
	Others	Calf band, Tool kit, Manual

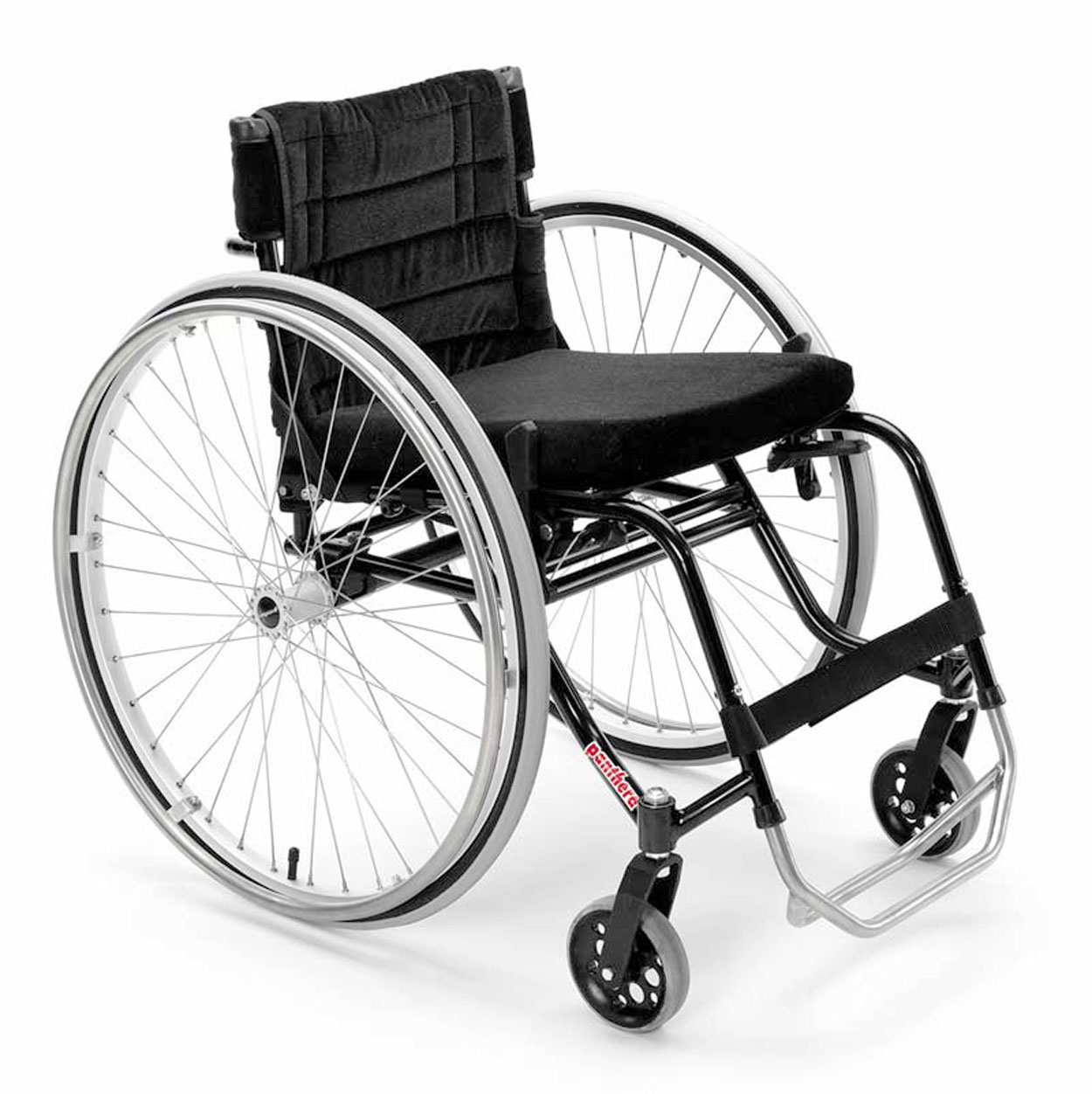

PANTHERA S2 SHORT
