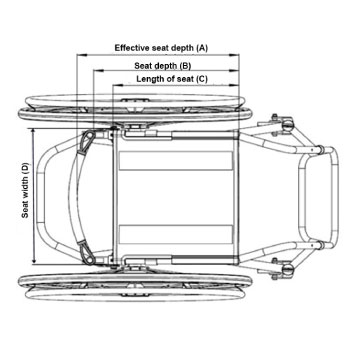

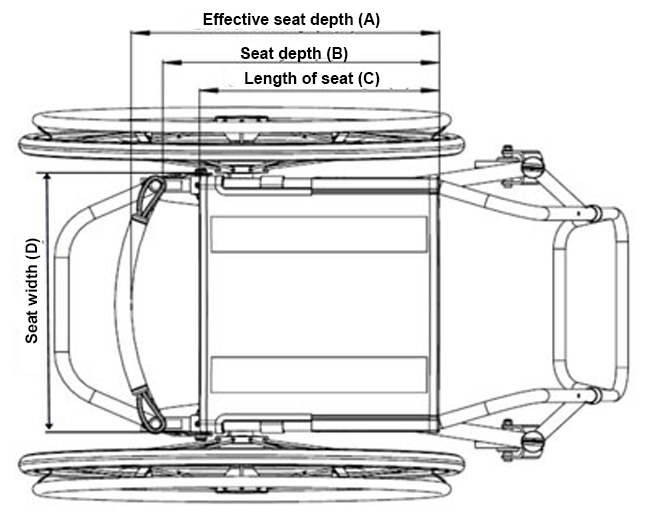

Effective seat depth (A) is measured from middle of the back rest upholstery to the front of the seat. Effective seat depth (A) vary depending on how much slack you give the back rest upholstery, and the angle of the back rest. Seat depth (B) is measured from the back rest pole to the front of the seat.
Model A A with seat extender B B with seat extender C
S2 / S3 410 - 500 - 410 - 376
S2 / S3 short   30 - 33 280 - 350 330 - 400 280 330 246
S2 short   36 - 45 360 - 450 - 360 - 326
S2 large 460 - 550   460   426
S2 swing 410 - 500 - 410 - 376
U2 / U3 360 - 450 440 - 530 360 440 326
U2 light 360 - 450 440 - 530 360 440 326
Bambino 240 - 290 310 - 360 240 310 200
Bambino 24 cm 190 - 240 260 - 310 190 260 150
Micro 140 - 180 200 - 230 140 200 120
Micro long 190 - 230 250 - 280 190 250 170
You are here: start / products / parts / seat / seat depth

HOW TO MEASURE SEAT DEPTH?
