FITS
S2 / S3 NO / NO
S2 / S3 short NO / NO
S2 / S3 short-low NO / NO
S2 / S3 large NO / NO
S2 / S3 swing NO / NO
S2 / S3 swing-short NO / NO
U2 / U3 NO / NO
U2/ U3 light NO / NO
Bambino / Bambino3 NO / NO
Micro / Micro 3 NO / YES
Panthera X NO

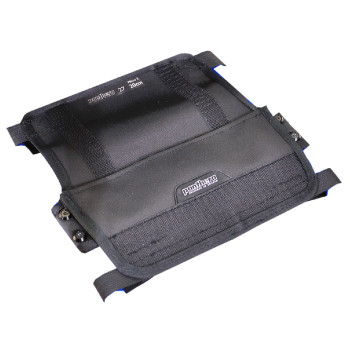

- Seat upholstery for Micro 3
DESCRIPTION ART.NO. QTY
Seat upholstery Micro 3 24 (15cm) cpl 5292415 1
Seat upholstery Micro 3 27 (15cm) cpl 5292715 1
Seat upholstery Micro 3 24 long (20cm) cpl 5292421 1
Seat upholstery Micro 3 27 long (20cm) cpl 5292721 1
You are here: start / products / parts / seat / Micro 3

SEAT MICRO 3

Highslide JS

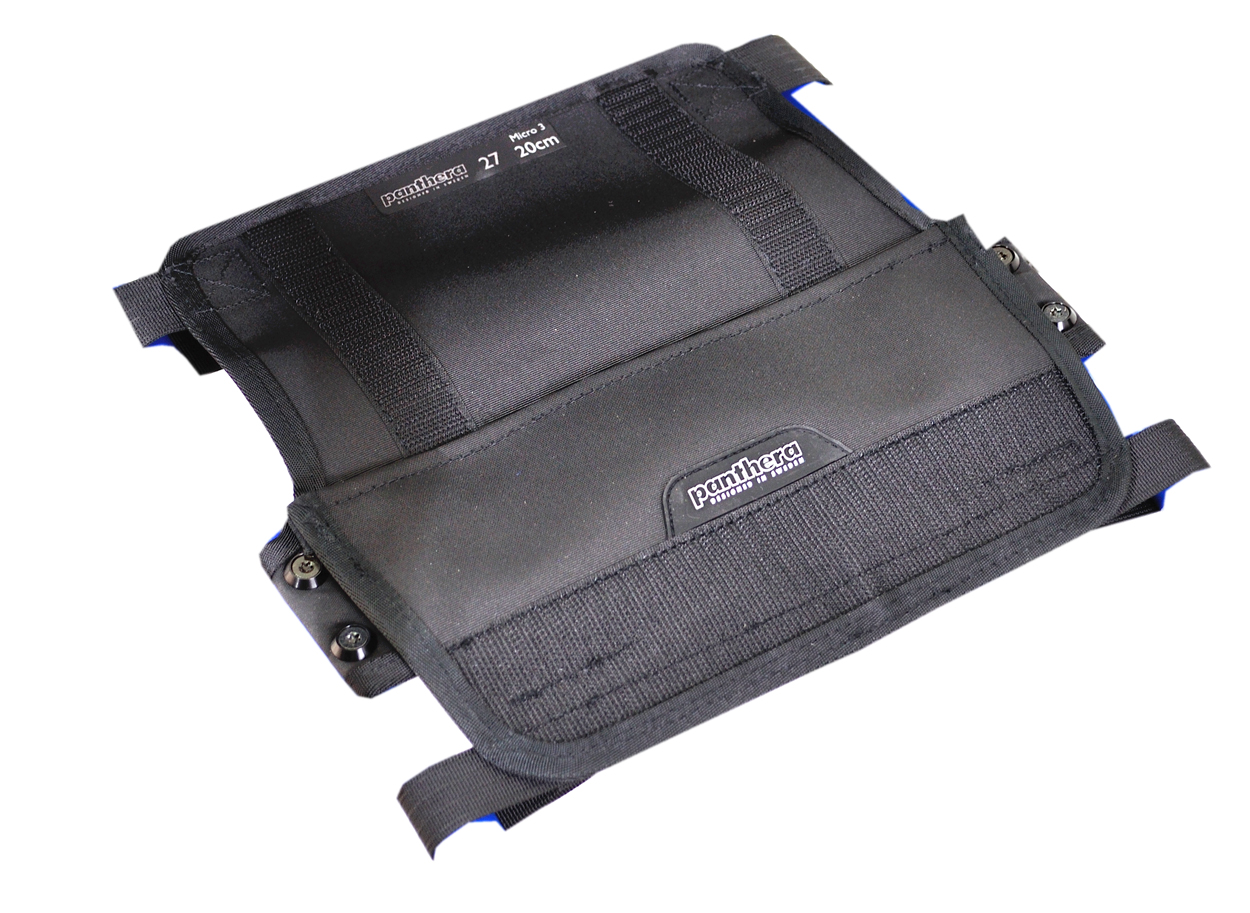

large image
oLightBox.com v3.0

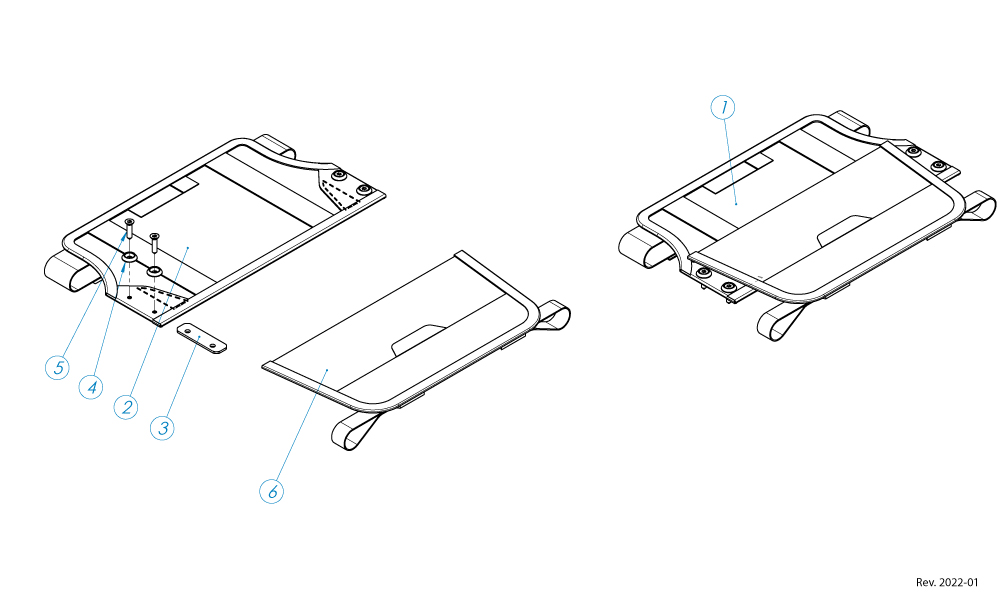

EXPLODED VIEW

POS DESCRIPTION    ART.NO. QTY
1 Sittklädsel Micro 3 24 (15cm) kpl   5292415 1
  Sittklädsel Micro 3 27 (15cm) kpl   5292715 1
  Sittklädsel Micro 3 24 lång (20cm) kpl   5292421 1
  Sittklädsel Micro 3 27 lång (20cm) kpl   5292721 1
2 Sittklädsel Micro 3 5282715 1
3 Skena sits Micro 3   3893516 2
4 Klädselbricka svart 4810123 4
5 Skruv 4,2x16 Torx FZSV 6004816T 4
6 Sitsförlängare SF 5273037 1
