Backrest frame designed for mounting of fixed backrest systems. Delivered without upholstery. Delivery time same as for the standard range. Back rest height is 30 cm for all widths.
NOTE! Not possible to combine these frames with PUSH HANDLES S3.
DESCRIPTION ART.NO. QTY
S3/U3 backrest frame for fixed backrest 30 7110530 1
S3/U3 backrest frame for fixed backrest 33 7110531 1
S3/U3 backrest frame for fixed backrest 36 7110532 1
S3/U3 backrest frame for fixed backrest 39 7110533 1
S3/U3 backrest frame for fixed backrest 42 7110534 1
S3/U3 backrest frame for fixed backrest 45 7110535 1
S3/U3 backrest frame for fixed backrest 50 7110536 1
You are here: start / products / parts / backrest/ S3 / backrest frame

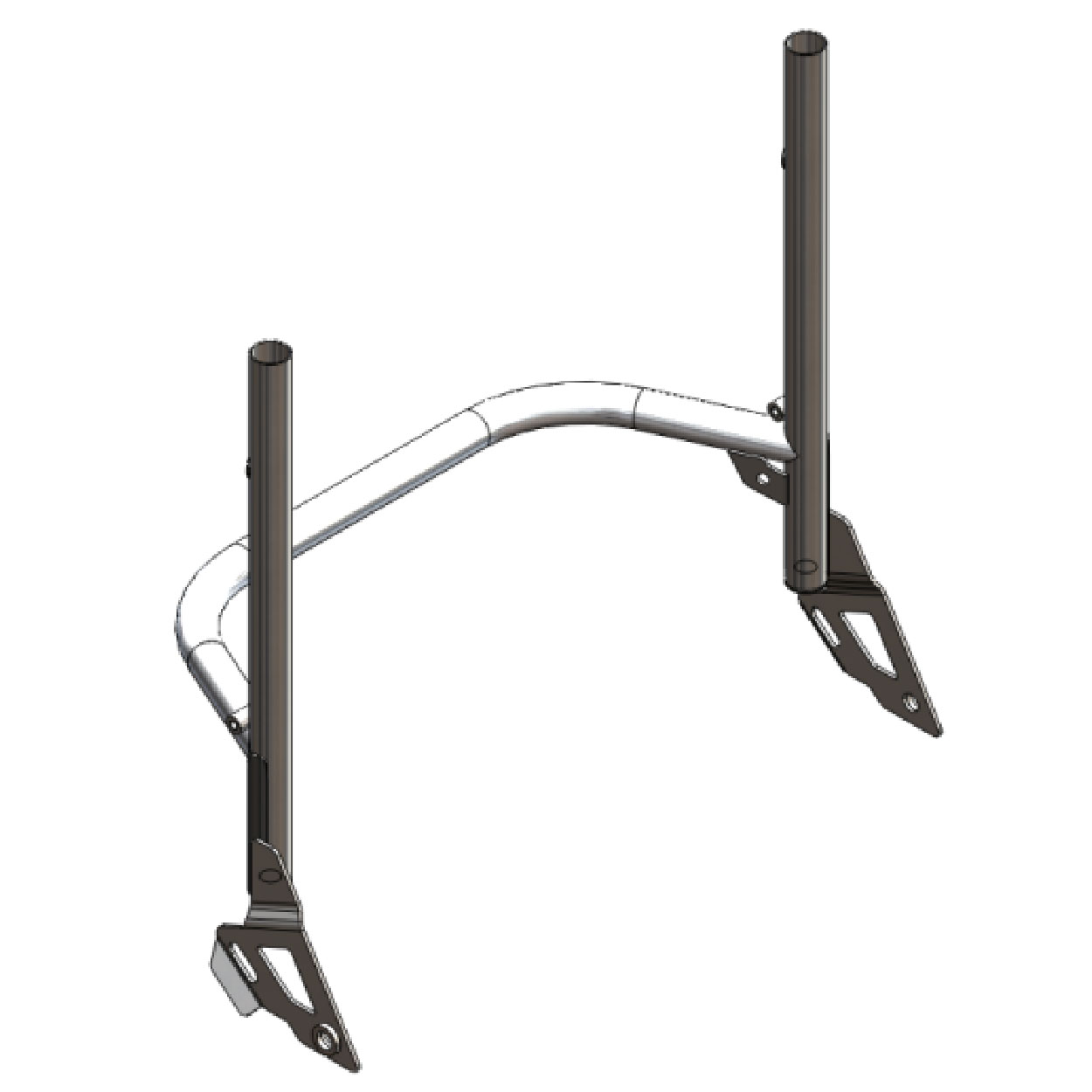

BACKREST FRAME S3 FOR FIXED BACKRESTS

Highslide JS
large image

ATTACHMENT

pos Description   art.no qty
1 Clamp Backrest lock , right Not possible to order separately 4101002 1
  Clamp Backrest lock , left Not possible to order separately 4101001 1
2 Backrest lock outre clamp 4101003 2
3 Springy tube-pin 3x24 9000324 2
4 Backrest lock distance 4101004 2
5 Backrest lock excenter S3 4101005 2
6 Backrest lock pin S3 4101006 2
7 Spring backreslock Bambino 4380405 2
8 Bolt MLC6S M6x18 FZSV 6002619 2
9 Bushing backrest attachment U2 light 9030100 2
10 Bolt MELC6S M6x35 FZSV 6004635 2
11 Backrest wire S3/U3 30 4380431 1
  Backrest wire S3/U3 33 4380434 1
  Backrest wire S3/U3 36 4380437 1
  Backrest wire S3/U3 39 4380440 1
  Backrest wire S3/U3 42 4380443 1
  Backrest wire S3/U3 45 4380446 1
  Backrest wire S3/U3 50 4380451 1
12 Ring backrest lock 4380401 2
