CASTOR FORK OVERVIEW

Highslide JS
large image
expl
oLightBox.com v3.0

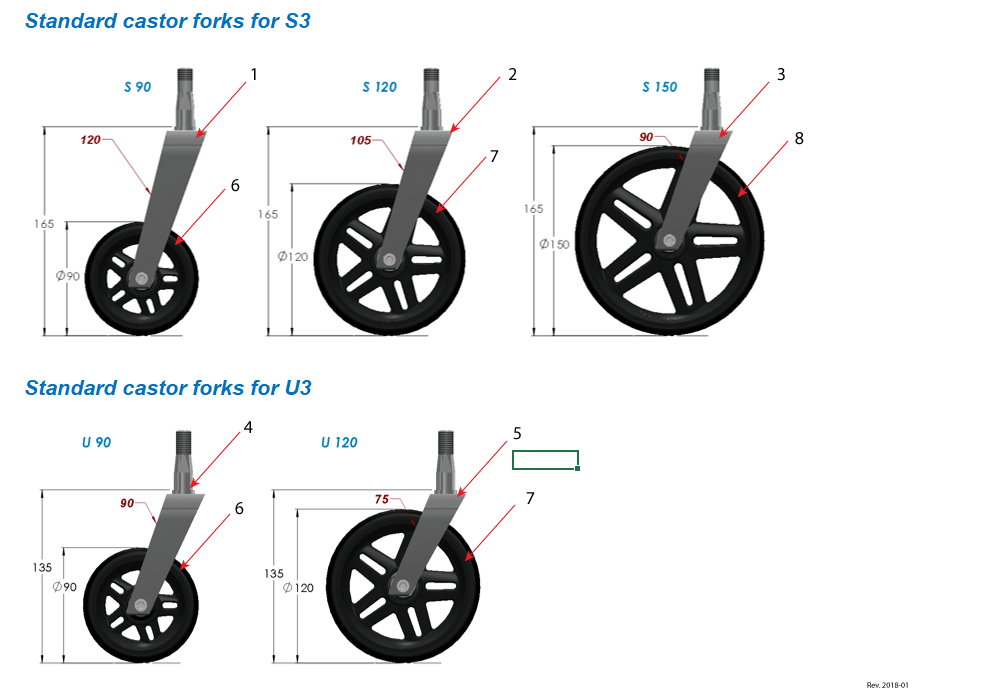

CASTOR FORK OVERVIEW S3 / U3

pos Description art.no qty
1 Fork 120 Bolt 3 2100143 1
2 Fork 105 Bolt 3 2100142 1
3 Fork 90 Bolt 3 2100141 1
4 Fork 75 Bolt 3 2100140 1
5 Castor wheel S3 90 mm 2002010 1
6 Castor wheel S3 120 mm 2002020 1
7 Castor wheel S3 150 mm 2002030 1
oLightBox.com v3.0

CASTOR FORK OVERVIEW

pos Description art.no qty
A Fork S2 6" with bolt 2004511 1
B Fork S2 with castor axle 2004501 1
C Casterfork Bambino with bult 2004205 1
D Casterfork short with bult 2004231 1
E Fork Bambino 20" 2300181 /(2004400) 1
F Castorfork U2 light with axle 24" 2300061 (expired) 1
G Fork X2 3-5"axle 24"for U2L 2300181 1
  Fork X2 3-5"axle 25"for U2L 2300185 1
  Fork X2 3-5"axle 26"for U2L 2300186 1
H Fork X2 24" for 3" X wheel 2305139 1
  Fork X2 25" for 3" X wheel 2305140 1
  Fork X2 26" for 3" X wheel 2305141 1
1 Caster axle  std 2300110 1
1g Caster axle U2L 24"NOTE! NOT sold separately 2300115 1
  Caster axle U2L 25"NOTE! NOT sold separately 2300116 1
  Caster axle S3 33mmNOTE! NOT sold separately 2300117 1
1h Caster axle X2 24"NOTE! NOT sold separately 2305040 1
  Caster axle X2 25"NOTE! NOT sold separately 2305041 1
  Caster axle X2 26"NOTE! NOT sold separately 2305042 1
2a Fork S2 6" 2004510 1
2b Fork S2 2004500 1
2c Fork Bambino 22"-24" 2004300 1
2d Fork short 2404002 1
2e Fork Bambino 20" 2300181 /(2004400) 1
2f Fork U2 light 2404010 (expired) 1
2g Fork X2 3-5" NOTE! NOT sold separately 2305013 1
2h Fork X-2 NOTE! NOT sold separately 2305012 1
3 Nut 1/2" 7000127 1
4 Washer PS 13x19x1 fzb 8001319 1

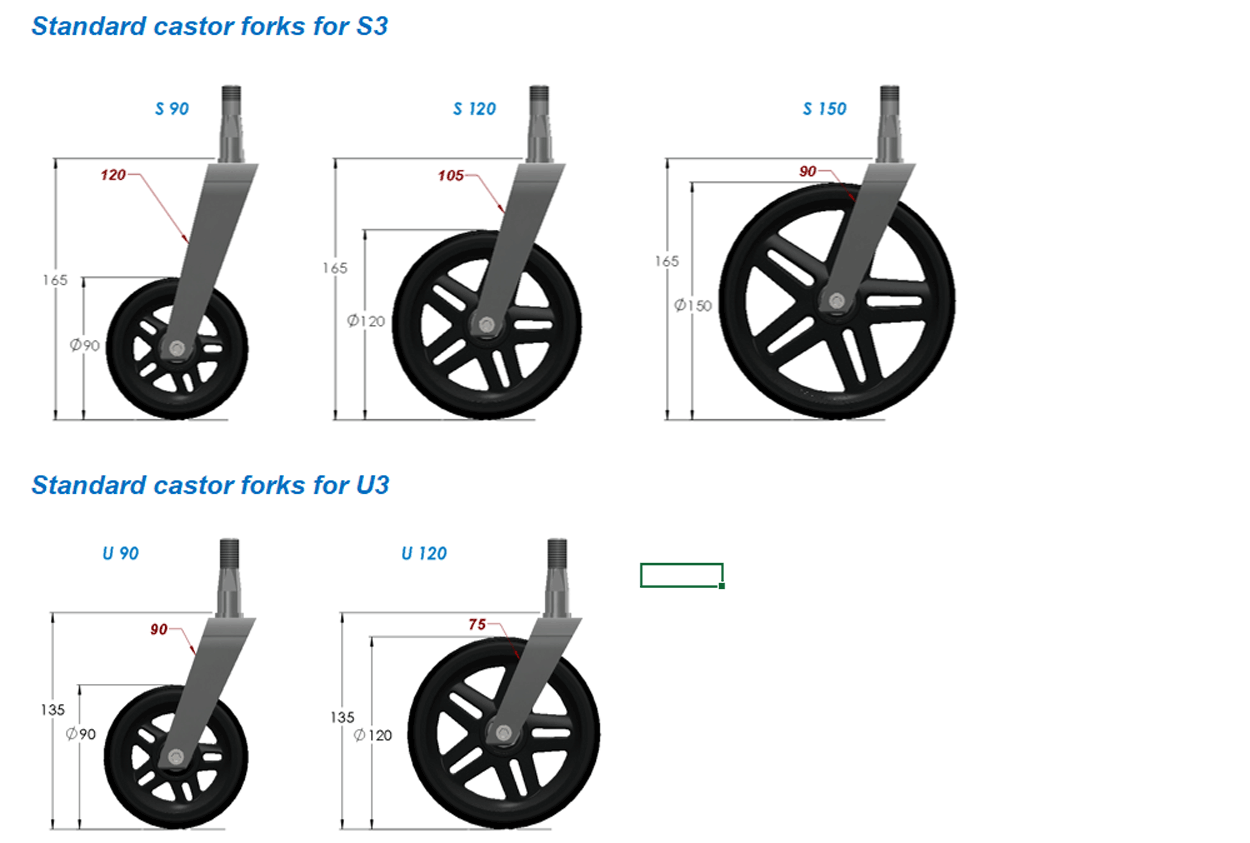

MEASSURES OF ALL CASTOR FORKS

#
