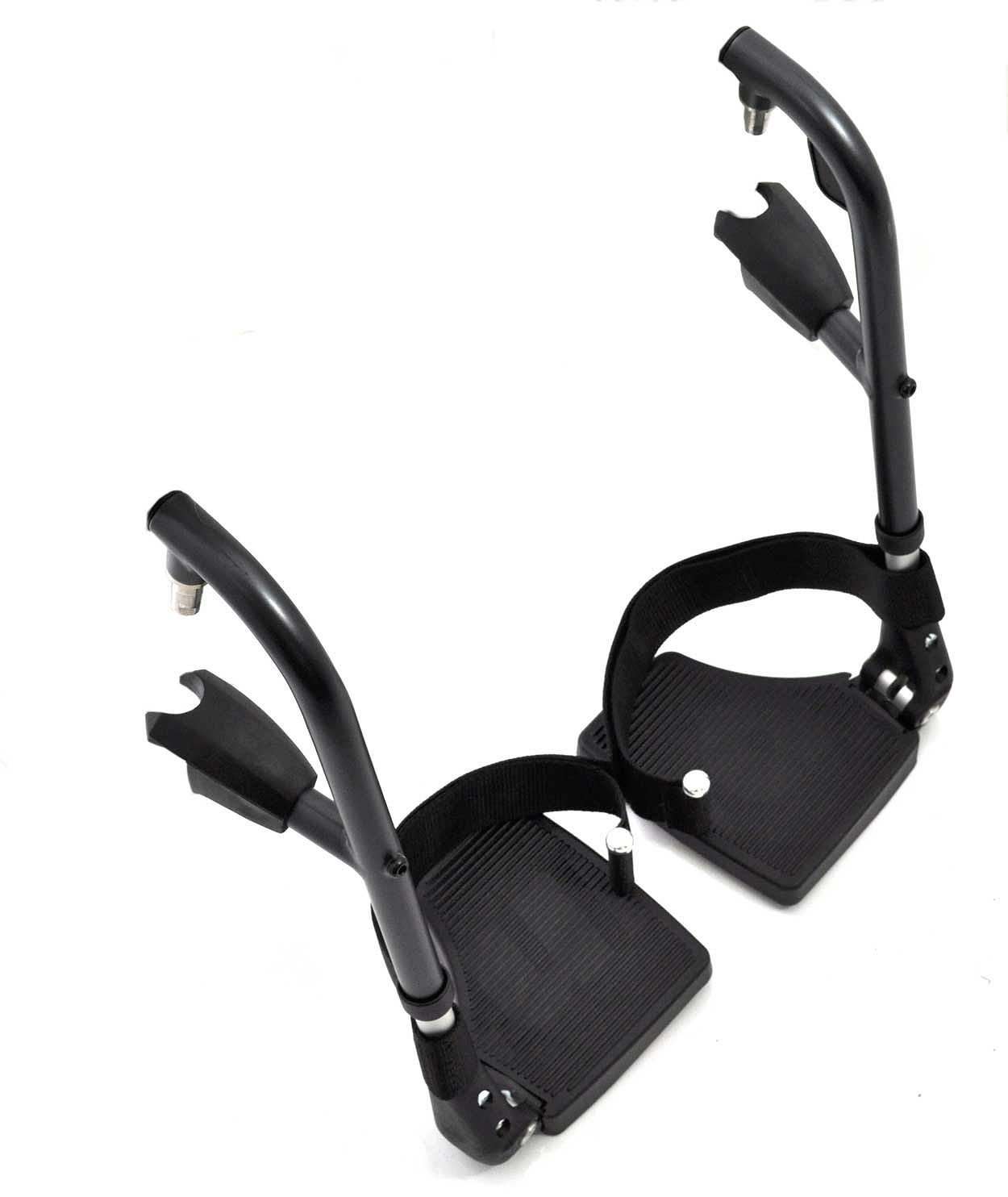

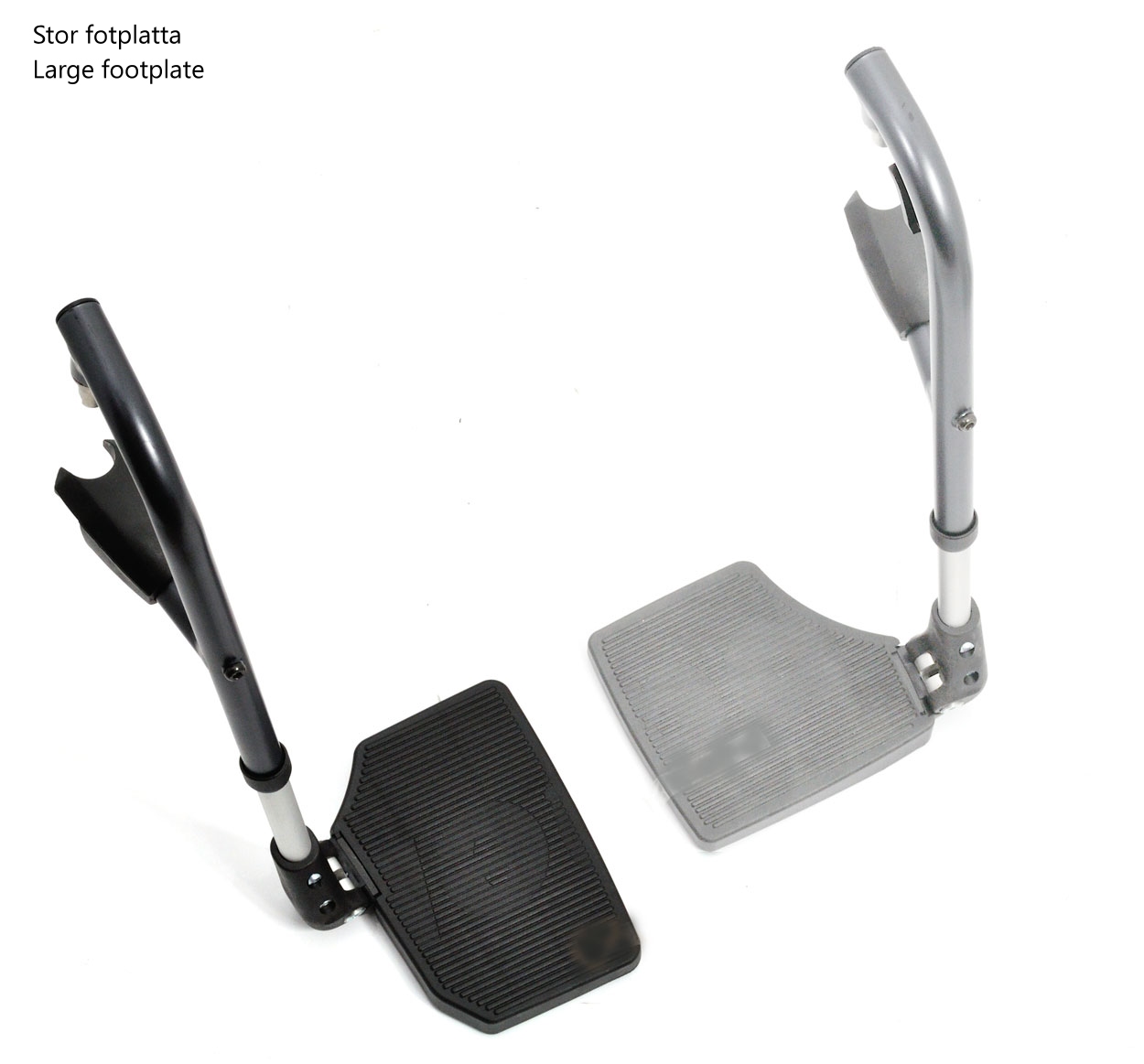

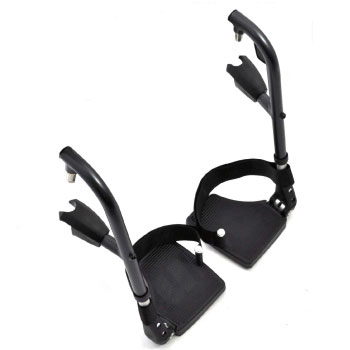

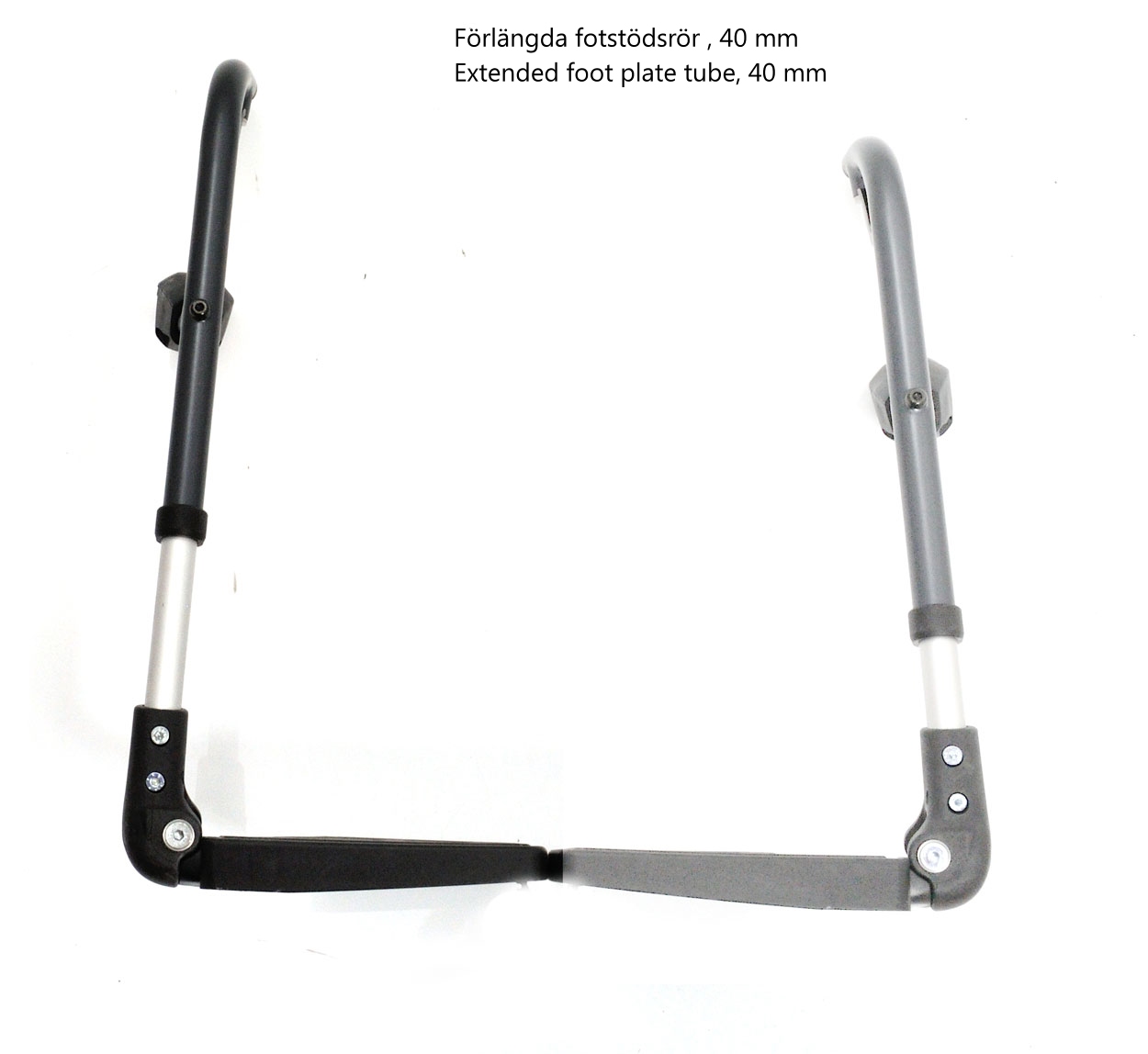

Swing away footrest with foldable footplates for the S3 Swing series. Footplates with extended tubes has a 4 cm longer footrest tube. Footrest with large footplates has the footplate extended 8 cm forward.
DESCRIPTION ART.NO. QTY
Footrest swing S3 cpl with footplates pair 33/36 4391133 pair
Footrest swing S3 cpl with footplates pair 39/42 4391139 pair
Footrest swing S3 cpl with footplates pair 45 4391145 pair
Footrest swing S3 cpl with footplates pair 50 4391150 pair
Footrest swing S3 cpl with footplates and extended tubes pair 33/36 see images 4391233 pair
Footrest swing S3 cpl with footplates and extended tubes pair 39/42 4391239 pair
Footrest swing S3 cpl with footplates and extended tubes pair 45 4391245 pair
Footrest swing S3 cpl with footplates and extended tubes pair 50 4391250 pair
Footrest swing S3 cpl with large footplates pair 33/36 see images 4391333 pair
Footrest swing S3 cpl with large footplates pair 39/42 4391339 pair
Footrest swing S3 cpl with large footplates pair 45/50 4391345 pair
You are here: start / products / parts / foorest / S3 swing

FOOTREST S3 SWING

Highslide JS
large image
oLightBox.com v3.0

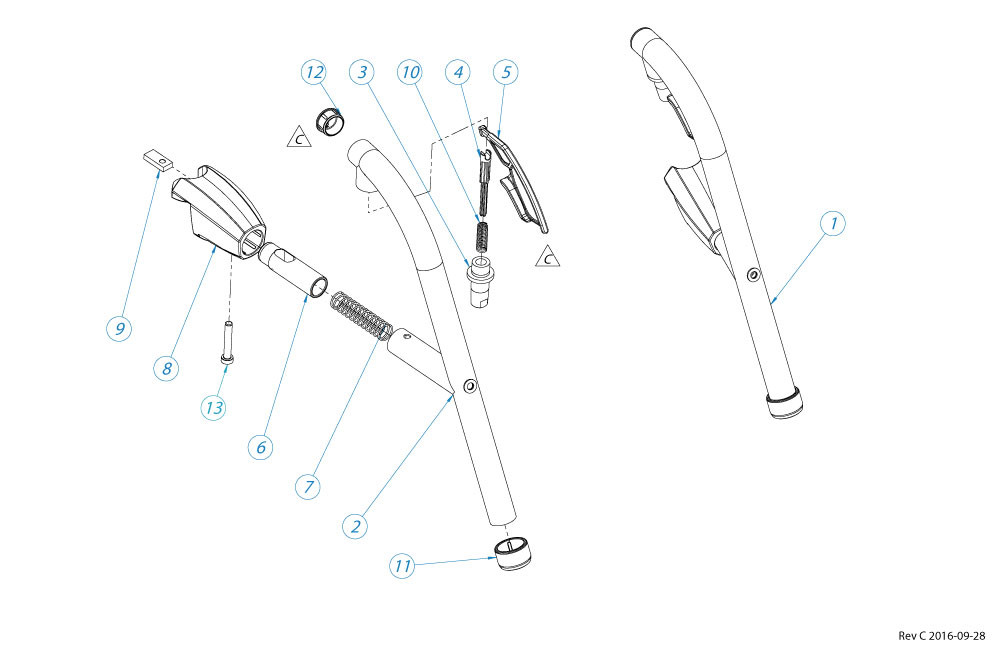

EXPLODED VIEW

pos Description art.no qty
1 Foot rest tube left without foot plate 4391101 1
  Foot rest tube right without foot plate 4391102 1
  Footrest Swing S3 left with footplate compl 33/36 4391103 1
  Footrest Swing S3 right with footplate compl 33/36 4391104 1
  Footrest Swing S3 left with footplate compl 39/42 4391105 1
  Footrest Swing S3 right with footplate compl 39/42 4391106 1
  Footrest Swing S3 left with footplate compl 45 4391107 1
  Footrest Swing S3 right with footplate compl 45 4391108 1
  Footrest Swing S3 left with footplate compl 50 4391109 1
  Footrest Swing S3 right with footplate compl 50 4391110 1
  Footrest Swing S3 left without footplate for painting 4391111 1
  Footrest Swing S3 right without footplate for painting 4391112 1
2 Tubing fotrest S3 Swing   1
3 Spring case 6601007 1
4 Spring pin 4390102 1
5 Release button Swing 4390105 1
6 Locking pin S3 Swing 4391008 1
7 Ejector spring S3 Swing 4391007 1
8 Bracket legrest S3 Swing plastic NOT POSSIBLE TO ORDER SEPARATELY 4391002 1
9 Slide nut 4391009 1
10 Compression spring 0,63x6,3x38,5RF 9004101 1
11 End plug S3 chassis hole 17 9000372 1
12 End plug footrest tube S3 swing 9000373 1
13 Bolt MLC6S M5x30 fzb 6002530 1
