FITS
S2 / S3 NO / NO
S2 short / S3 short NO / NO
S2 short-low / S3 short-low NO / NO
S2 large / S3 large NO / NO
S2 swing / S3 swing NO / NO
S2 swing-short / S3 swing-short NO / NO
U2 / U3 NO / NO
U2 light / U3 light NO / YES
Bambino NO
Micro NO
Panthera X NO

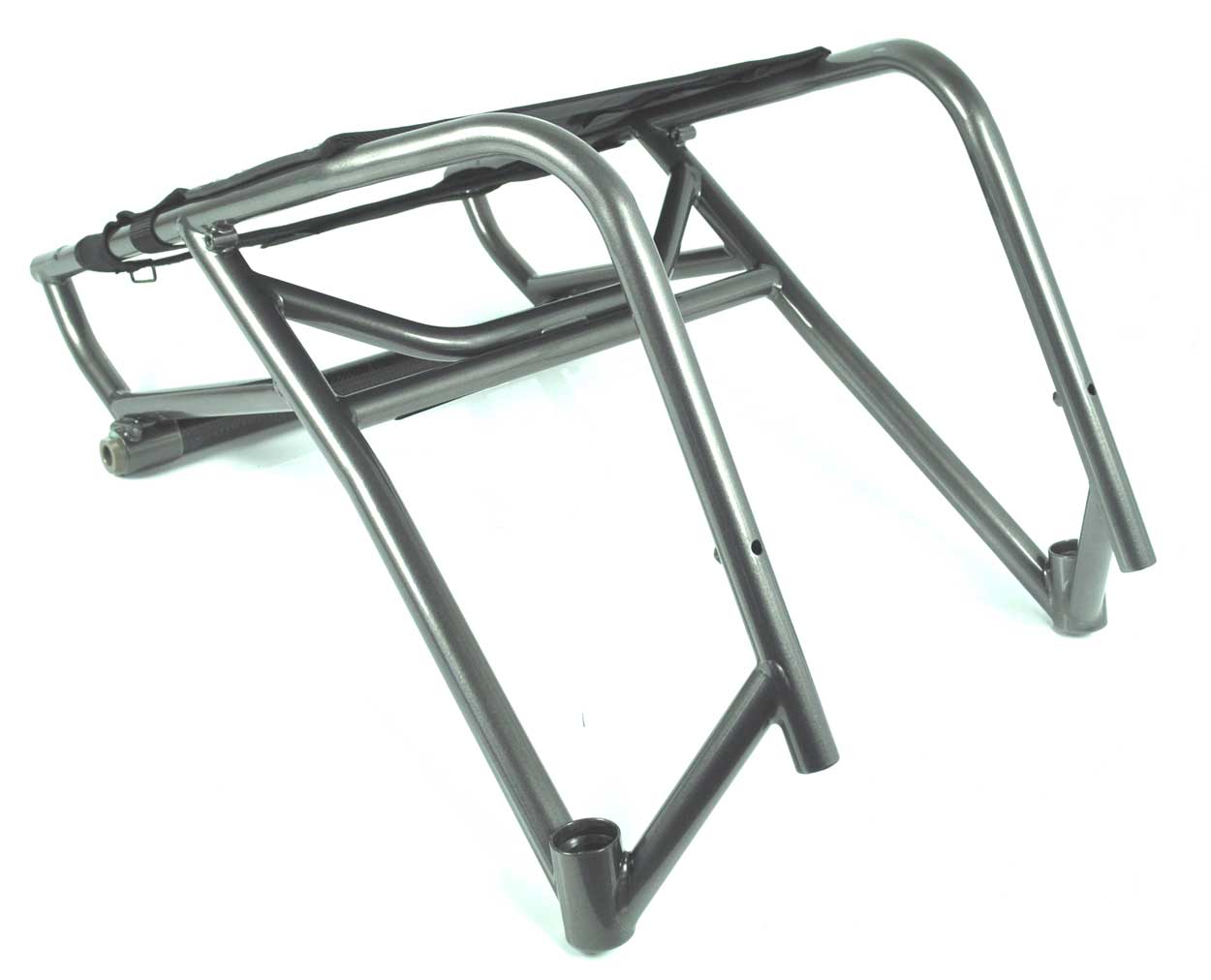

Chassis for model U3 light. Available in white or black.
DESCRIPTION ART.N0. ART.N0. QTY
  WHITE BLACK
Chassis U3 light 33 sparepart 5120133 5120133BL 1
Chassis U3 light 36 sparepart 5120136 5120136BL 1
Chassis U3 light 39 sparepart 5120139 5120139BL 1
Chassis U3 light 42 sparepart 5120142 5120142BL 1
Chassis U3 light 45 sparepart 5120145 5120145BL 1
Chassis U3 light/L 33 sparepart 5130133 5130133BL 1
Chassis U3 light/L 36 sparepart 5130136 5130136BL 1
Chassis U3 light/L 39 sparepart 5130139 5130139BL 1
Chassis U3 light/L 42 sparepart 5130142 5130142BL 1
Chassis U3 light/L 45 sparepart 5130145 5130145BL 1
You are here: start / products / parts / chassis / U3 light

CHASSIS U3 LIGHT

Highslide JS
large image
oLightBox.com v3.0

EXPLODED VIEW

pos Description art.no qty
1 Chassis U3 light 33 white sparepart 5120033 1
  Chassis U3 light 33 black sparepart 5120033BL 1
  Chassis U3 light 36 white sparepart 5120036 1
  Chassis U3 light 36 black sparepart 5120036BL 1
  Chassis U3 light 39 white sparepart 5120039 1
  Chassis U3 light 39 black sparepart 5120039BL 1
  Chassis U3 light 42 white sparepart 5120042 1
  Chassis U3 light 42 black sparepart 5120042BL 1
  Chassis U3 light 45 white sparepart 5120045 1
  Chassis U3 light 45 black sparepart 5120045BL 1
  Chassis U3 light/L 33 white sparepart 5130033 1
  Chassis U3 light/L 33 black sparepart 5130033BL 1
  Chassis U3 light/L 36 white sparepart 5130036 1
  Chassis U3 light/L 36 black sparepart 5130036BL 1
  Chassis U3 light/L 39 white sparepart 5130039 1
  Chassis U3 light/L 39 black sparepart 5130039BL 1
  Chassis U3 light/L 42 white sparepart 5130042 1
  Chassis U3 light/L 42 black sparepart 5130042BL 1
  Chassis U3 light/L 45 white sparepart 5130045 1
  Chassis U3 light/L 45 black sparepart 5130045BL 1
2 Velcro adhesive cut 3700100 2
3 Calf strap Panthera 33 3700233 1
  Calf strap Panthera 36 3700236 1
  Calf strap Panthera 39 3700239 1
  Calf strap Panthera 42 3700242 1
  Calf strap Panthera 45 3700245 1
4 End-plug U3L 9030009 2
