Chassiss for models S2, S2 short, S2 short-low and S2 large
DESCRIPTION ART.N0. DESCRIPTION ART.N0.
Chassis S2 33 blue sparepart 3013340 Chassis S2 short 36 blue sparepart 3023640
Chassis S2 36 blue sparepart 3013640  Chassis S2 short 36 black sparepart 3023640BL
Chassis S2 36 black sparepart 3013640BL Chassis S2 short 39 blue sparepart 3023940
Chassis S2 39 blue sparepart 3013940 Chassis S2 short 39 black sparepart 3023940BL
Chassis S2 39 black sparepart 3013940BL Chassis S2 short 42 blue sparepart 3024240
Chassis S2 42 blue sparepart 3014240 Chassis S2 short 42 black sparepart 3024240BL
Chassis S2 42 black sparepart 3014240BL Chassis S2 short 45 blue sparepart 3024540
Chassis S2 45 blue sparepart 3014540 Chassis S2 short 45 black sparepart 3024540BL
Chassis S2 45 black sparepart 3014540BL Chassis S2 short low 33 black sparepart 3063335
Chassis S2 50 blue sparepart 3015040 Chassis S2 short low 36 black sparepart 3063635
Chassis S2 50 black sparepart 3015040BL Chassis S2 short low 39 black sparepart 3063935
Chassis S2 short 30 blue sparepart 3023040 Chassis S2 Large 39 black sparepart 3013945BL
Chassis S2 short 30 black sparepart 3023040BL Chassis S2 Large 42 black sparepart 3014245BL
Chassis S2 short 33 blue sparepart 3023340 Chassis S2 Large 45 black sparepart 3014545BL
Chassis S2 short 33 black sparepart 3023340BL Chassis S2 Large 50 black sparepart 3015045BL
You are here: start / products / parts / Chassiss / S2

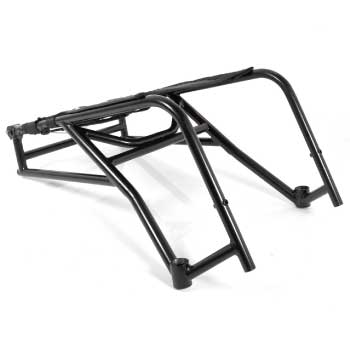

CHASSIS S2

Highslide JS
large image
oLightBox.com v3.0

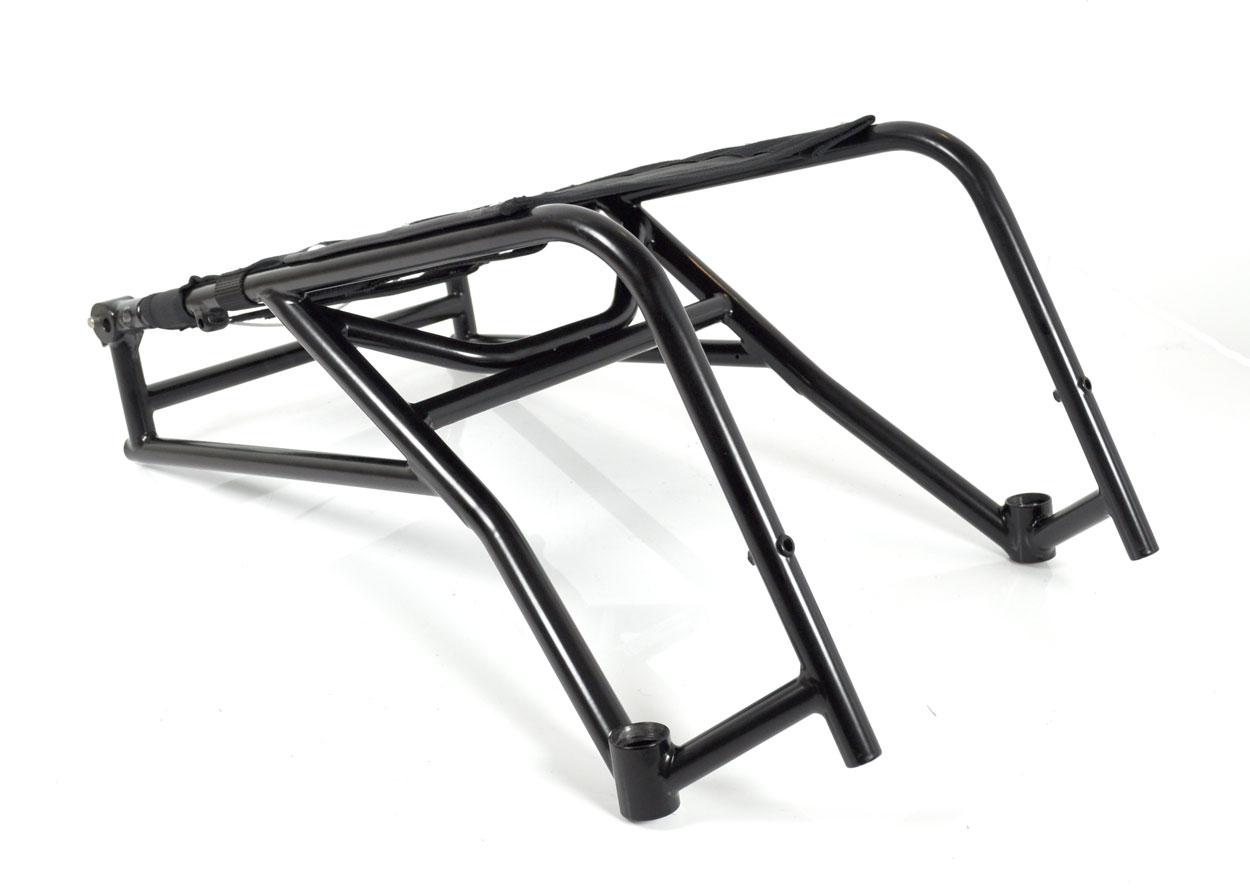

EXPLODED VIEW

pos Description art.no. qty
1 Chassis S2 33 blue sparepart 3013340 1
  Chassis S2 33 black sparepart 3013340BL 1
  Chassis S2 36 blue sparepart 3013640 1
  Chassis S2 36 black sparepart 3013640BL 1
  Chassis S2 39 blue sparepart 3013940 1
  Chassis S2 39 black sparepart 3013940BL 1
  Chassis S2 42 blue sparepart 3014240 1
  Chassis S2 42 black sparepart 3014240BL 1
  Chassis S2 45 blue sparepart 3014540 1
  Chassis S2 45 black sparepart 3014540BL 1
  Chassis S2 50 blue sparepart 3015040 1
  Chassis S2 50 black sparepart 3015040BL 1
  Chassis S2 short 30 blue sparepart 3023040 1
  Chassis S2 short 30 black sparepart 3023040BL 1
  Chassis S2 short 33 blue sparepart 3023340 1
  Chassis S2 short 33 black sparepart 3023340BL 1
  Chassis S2 short 36 blue sparepart 3023640 1
  Chassis S2 short 36 black sparepart 3023640BL 1
  Chassis S2 short 39 blue sparepart 3023940 1
  Chassis S2 short 39 black sparepart 3023940BL 1
  Chassis S2 short 42 blue sparepart 3024240 1
  Chassis S2 short 42 black sparepart 3024240BL 1
  Chassis S2 short 45 blue sparepart 3024540 1
  Chassis S2 short 45 black sparepart 3024540BL 1
  Chassis S2 short low 33 black sparepart 3063335 1
  Chassis S2 short low 36 black sparepart 3063635 1
  Chassis S2 short low 39 black sparepart 3063935 1
  Chassis S2 Large 39 black sparepart 3013945BL 1
  Chassis S2 Large 42 black sparepart 3014245BL 1
  Chassis S2 Large 45 black sparepart 3014545BL 1
  Chassis S2 Large 50 black sparepart 3015045BL 1

2 Calf strap 30 width 3700030 1
  Calf strap 33 width 3700033 1
  Calf strap 36 width 3700036 1
  Calf strap 39 width 3700039 1
  Calf strap 42 width 3700042 1
  Calf strap 45 width 3700045 1
  Calf strap 50 width 3700050 1
3 Velcro adhesive cut 3700100 2
4 End plug Chassis 9030010 2
5 Screw RXS B6x95 Din 7504 borrspets 6005609 2
6 Bushing backrest joint 9030002 2
  Bushing backrest joint 45/50 9030045 2
1 Chassis U2 light 36 3033640 1
  Chassis U2 light/L 36 3033650 1
  Chassis U2 light 39 3033940 1
  Chassis U2 light/L 39 3033950 1
  Chassis U2 light 42 3034240 1
  Chassis U2 light/L 42 3034250 1
2 Calf strap 33 width 3700033 1
  Calf strap 36 width 3700036 1
  Calf strap 39 width 3700039 1
  Calf strap 42 width 3700042 1
  Calf strap 45 width 3700045 1
3 Velcro adhesive cut 3700100 2
4 End plug Chassis U2 light 9030012 2
5 Screw RXS B6x95 Din 7504 drill tip 6005609 2
6 Bolt MC6S M5x35 6002536 2
