FITS
S2 / S3 NO / NO
S2 / S3 short NO / NO
S2 / S3 short-low NO / NO
S2 / S3 large NO / NO
S2 / S3 swing NO / NO
S2 / S3 swing-short NO / NO
U2 / U3 NO / NO
U2/ U3 light NO / NO
Bambino / Bambino3 NO / NO
Micro / Micro 3 NO / YES
Panthera X NO

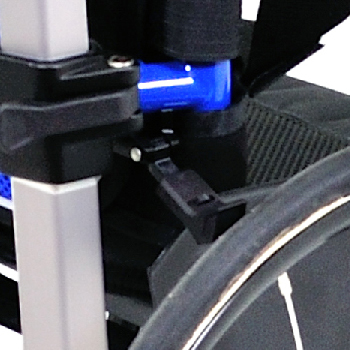

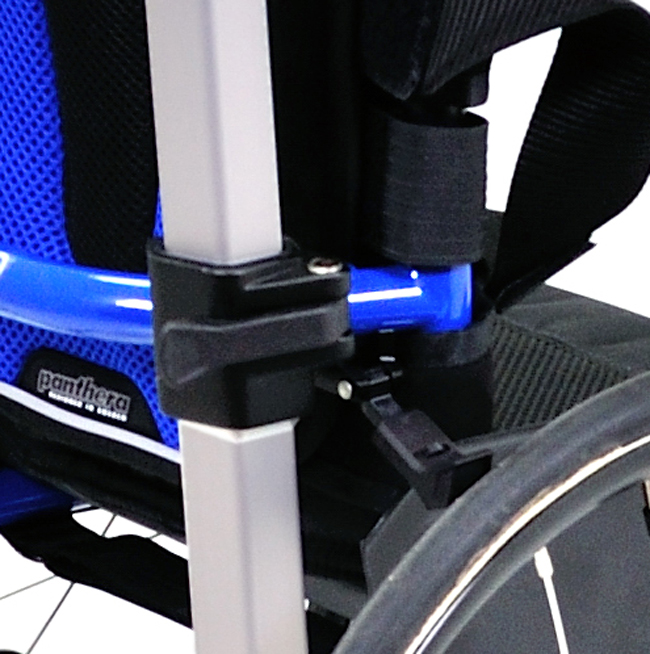

- An anti-roll device forMicro 3

- Designed to prevent the wheelchair from rolling when transfer to and from it.

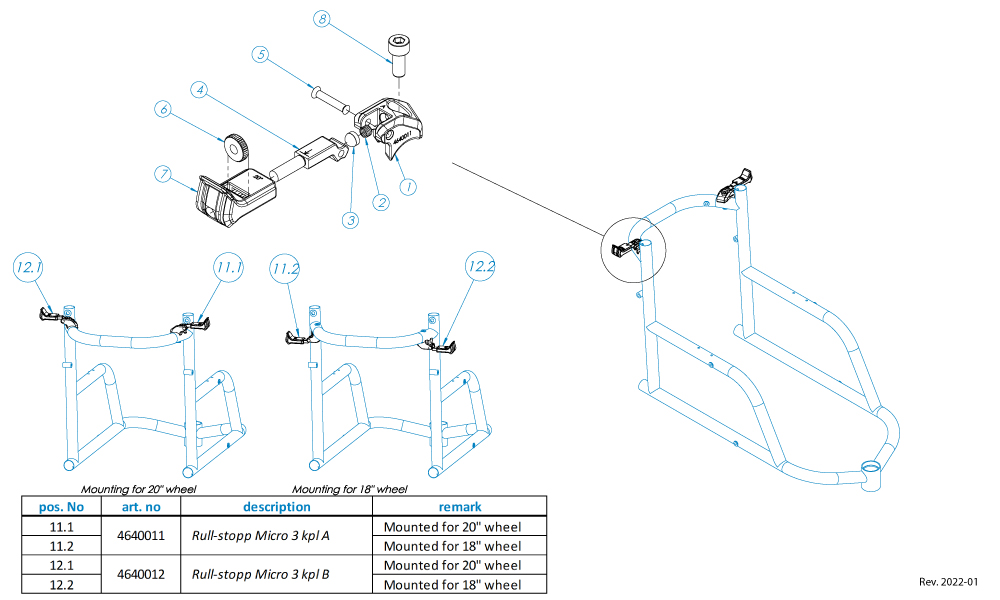

DESCRIPTION ART.NO. QTY
Anti-roll device Micro 3 pair 4640000 pair
Anti-roll device Micro 3 cpl A 4640011 1
Anti-roll device Micro 3 cpl B 4640012 1
You are here: start / products / parts / brake / Micro 3

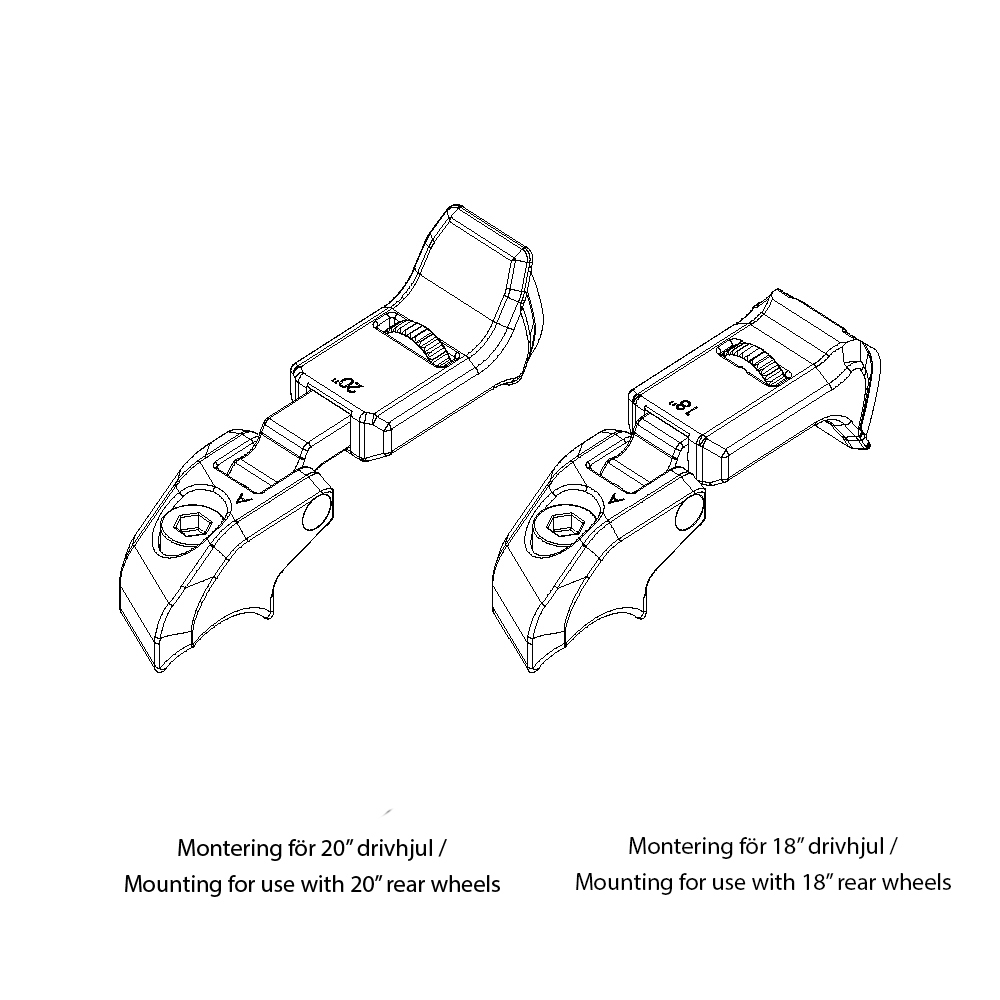

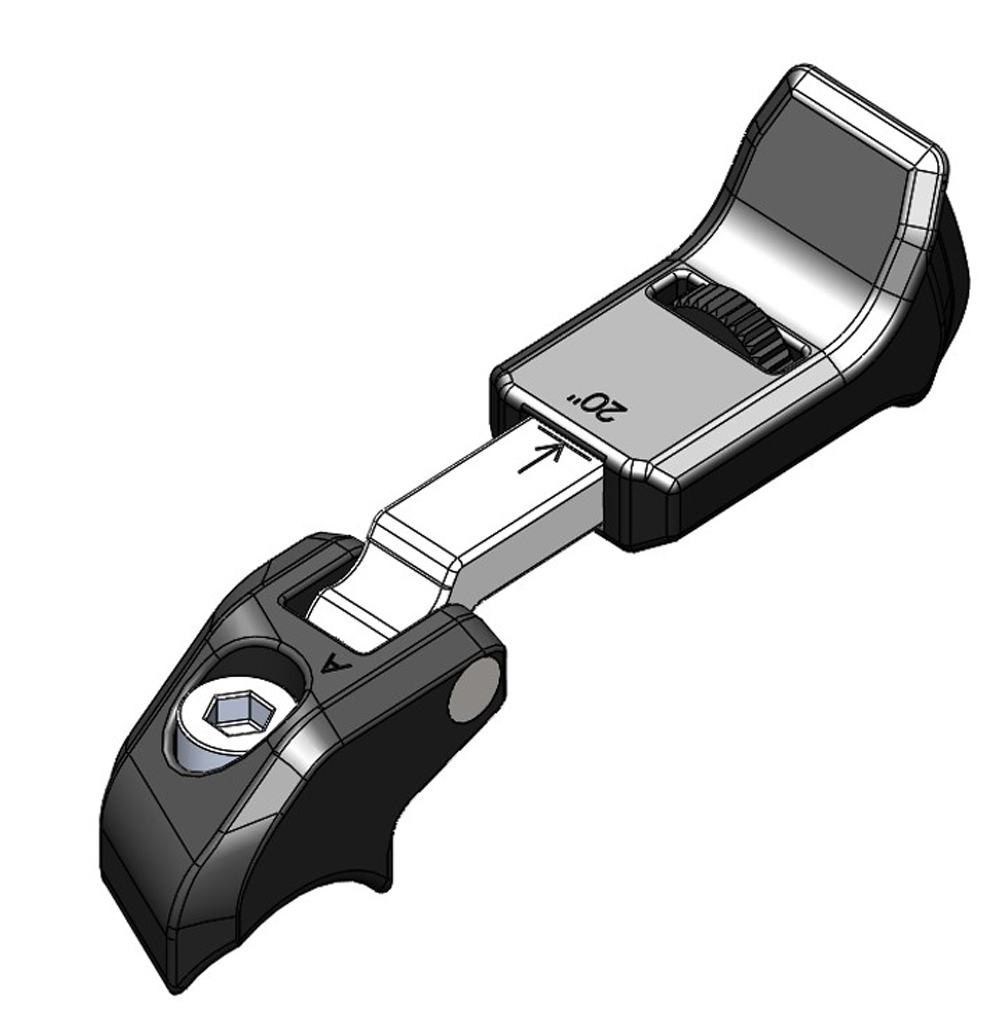

ANTI-ROLL-DEVICE MICRO 3

Highslide JS
large image

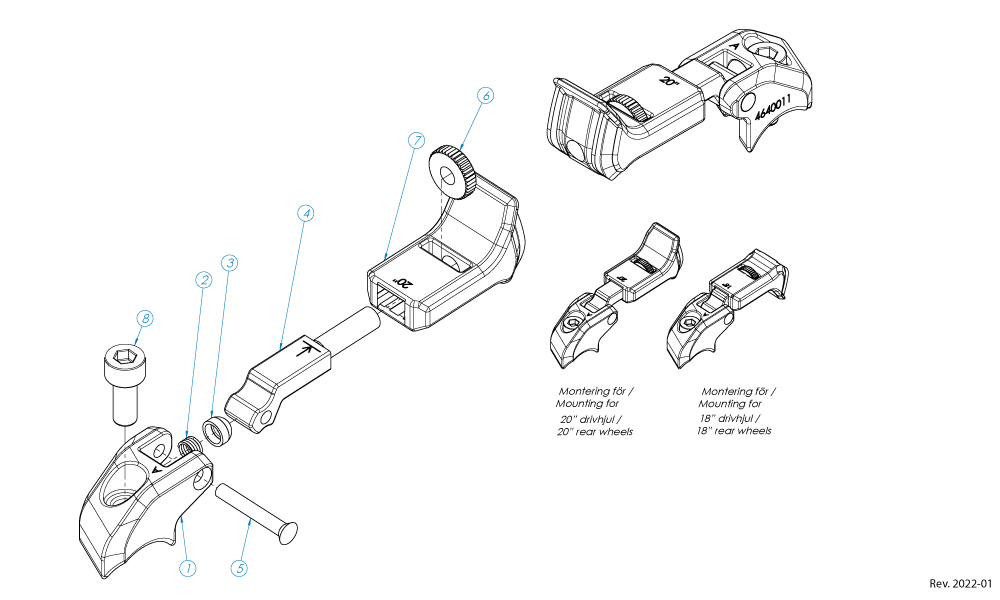

EXPLODED VIEW

1POS DESCRIPTION   ART.NO. QTY
1 Attachment anti roll device A   4640001 1
  Attachment anti roll device B   4640002 1
2 Adjustment nut anti roll device Not possible to order separately 4640006 1
3 Spring top anti roll device Not possible to order separately 4640007 1
4 Locking lever anti roll device Not possible to order separately 4640003 1
5 C.sunk head rivet DIN 661 A4 3x20 Not possible to order separately 4640008 1
6 Adjust nut anti roll device Not possible to order separately 4640005 1
7 Lock arm anti roll device Not possible to order separately 4640004 1
8 Bolt MC6S 8.8 DIN 912 M5x12 Black Not possible to order separately 6002511 1
