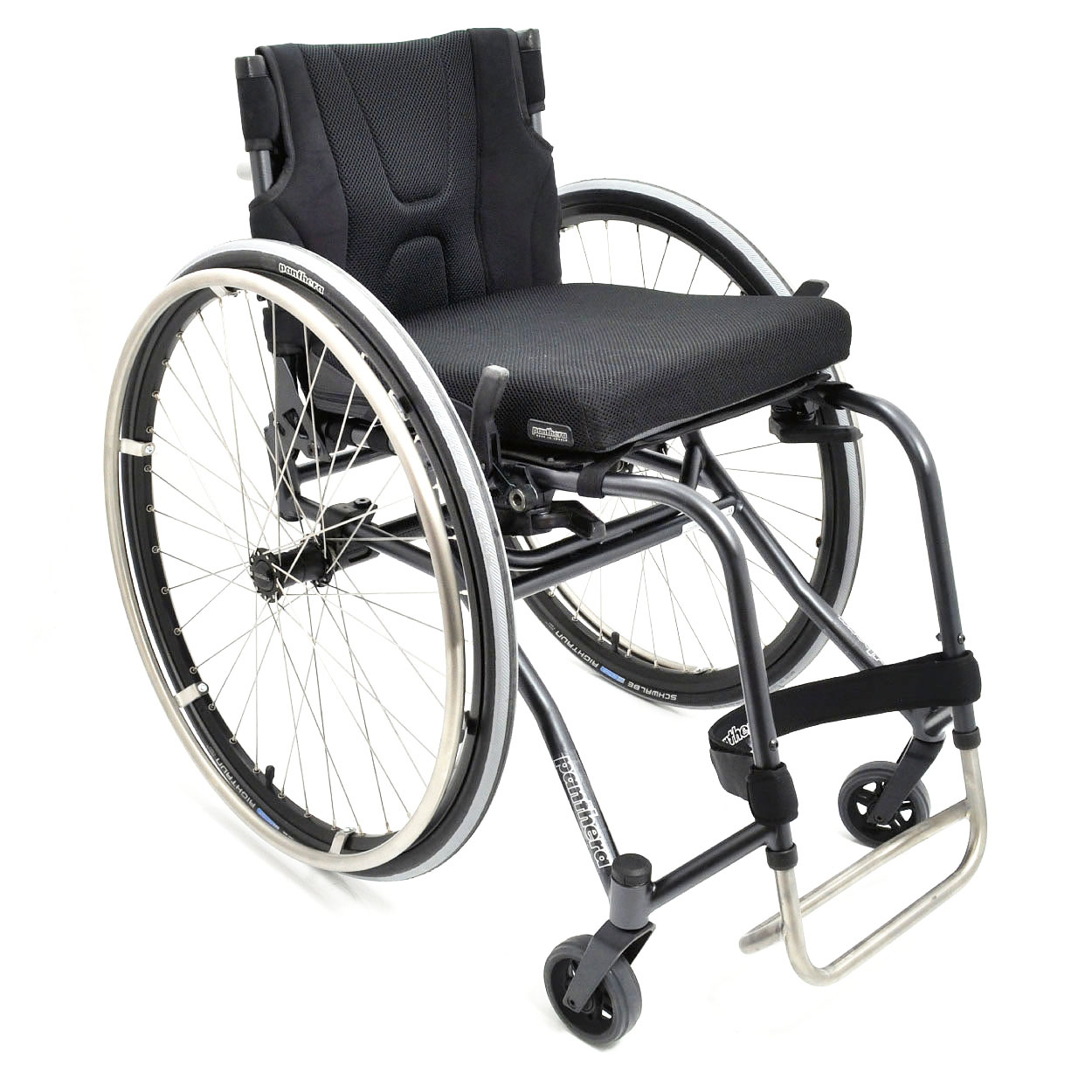

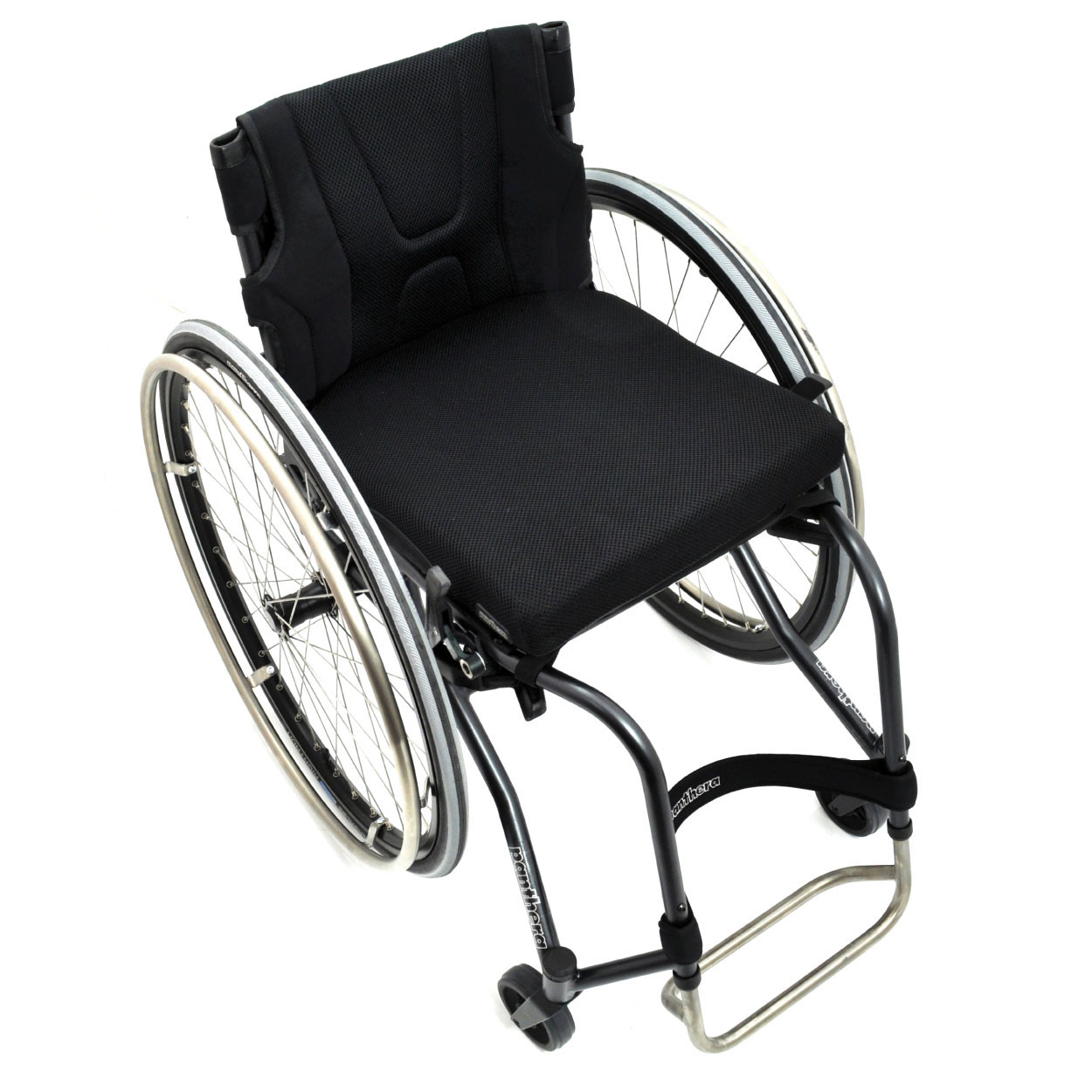

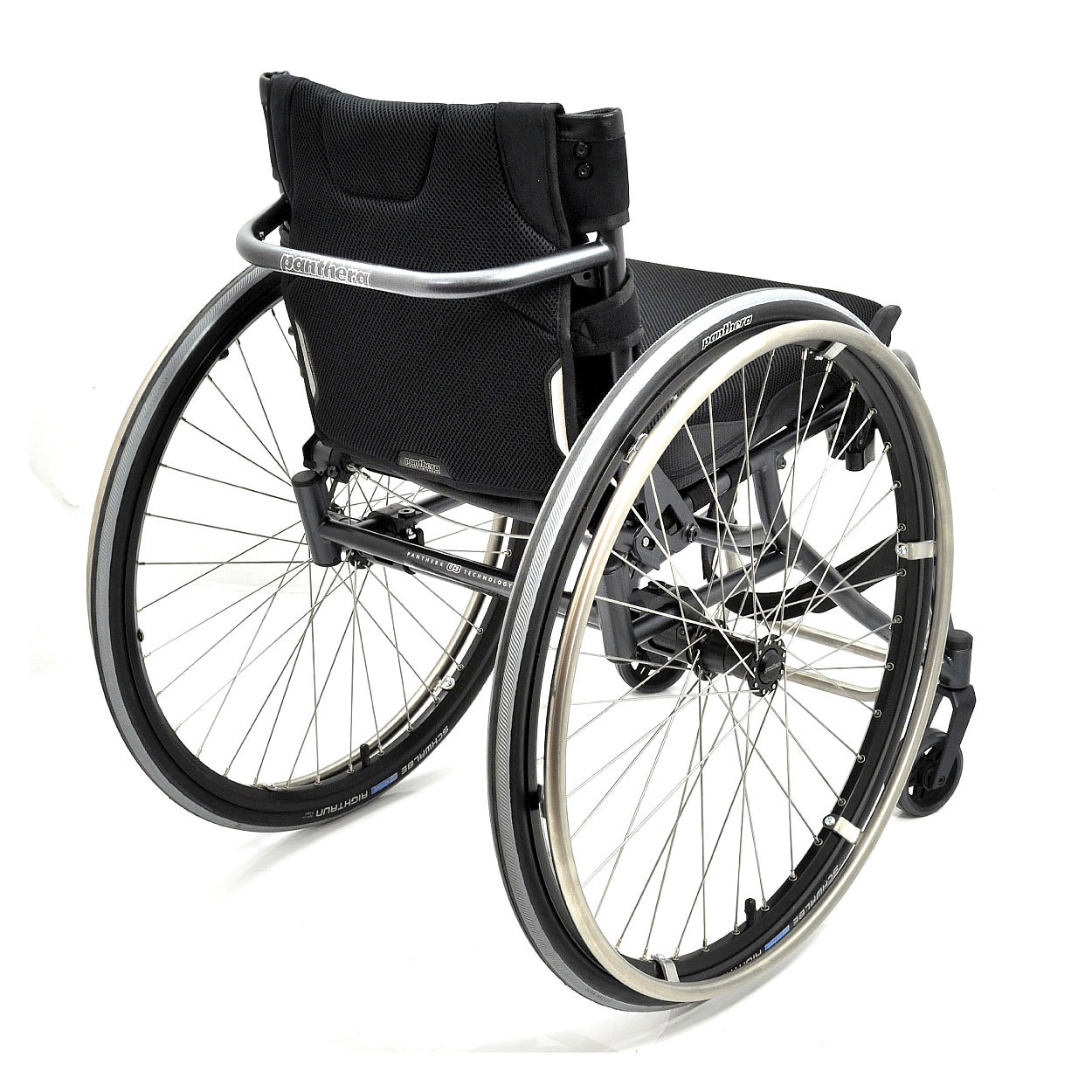

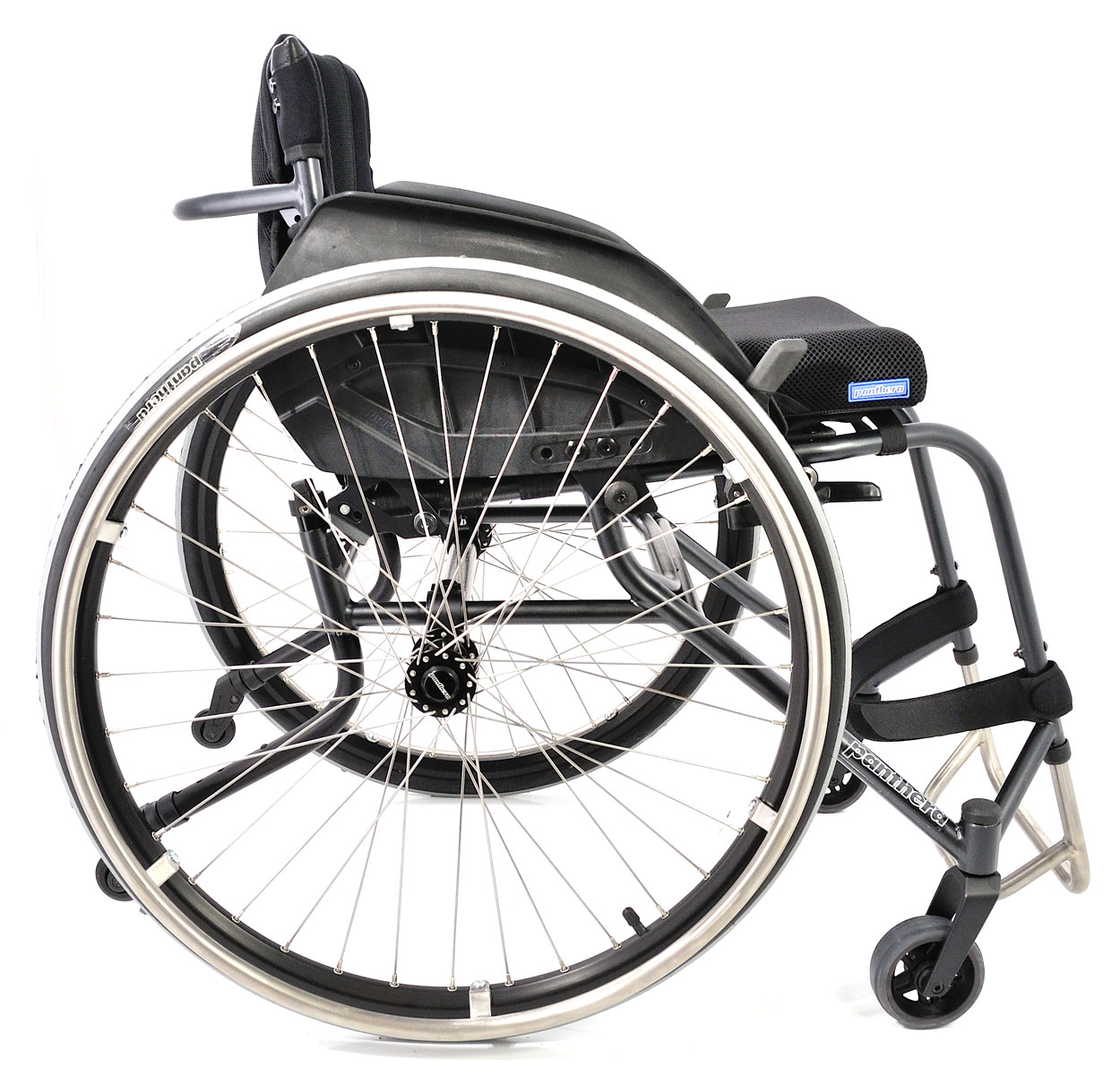

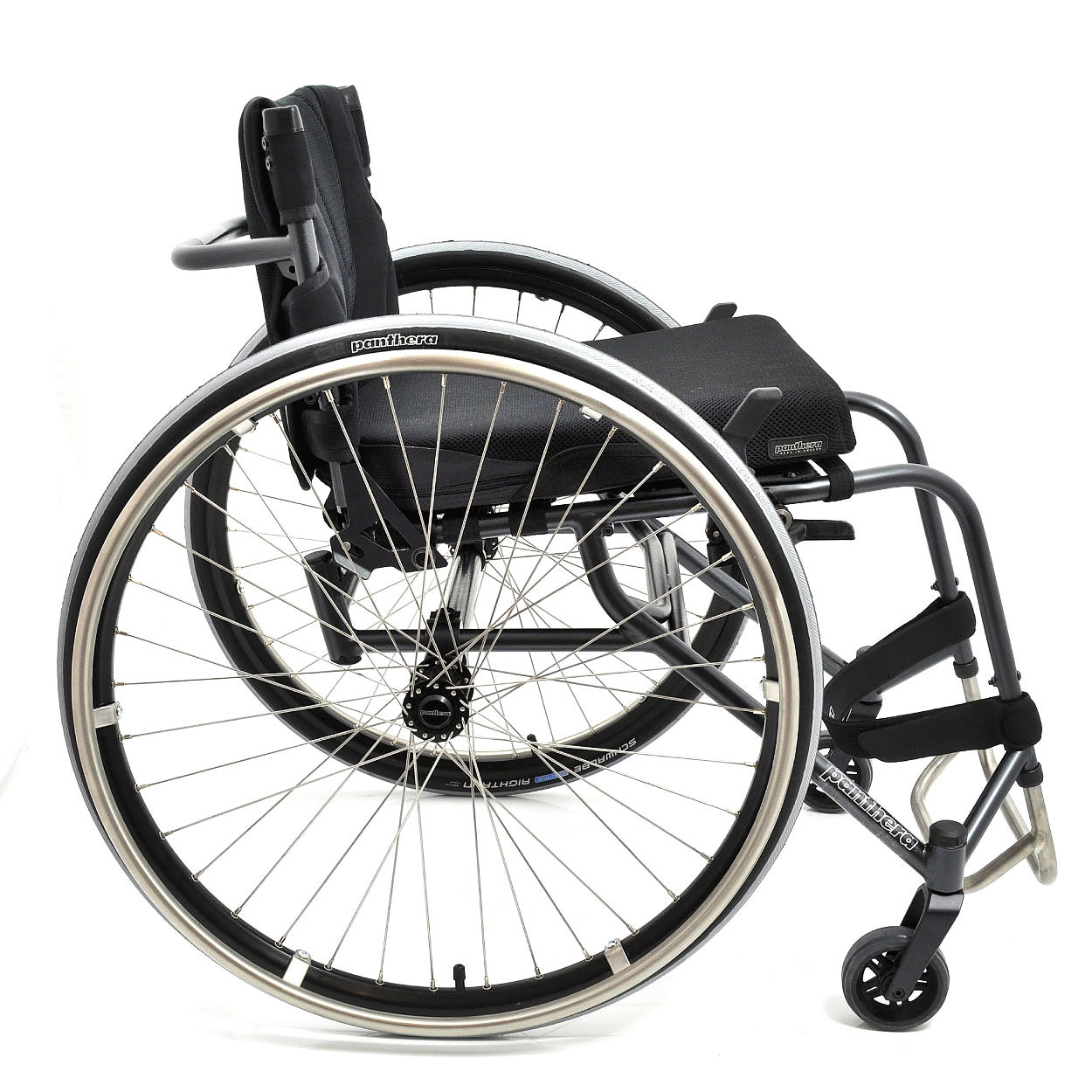

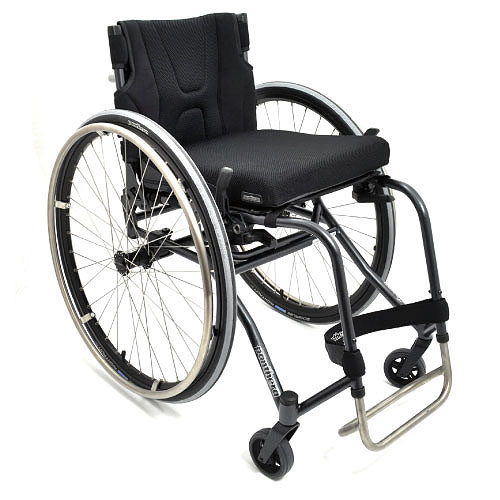

PANTHERA U3

- U3 is a wheelchairs for active users designed to let you live life as
  actively as possible
- Attention have been put into all of its details
- Low weight, stable fixed frame, casters with a unique profile
- This wheelchair is very easy to manoeuvre
- The seating angle, adjustable backrest and seat upholstery and the
  backrest tilt function provide an extremely good seating comfort
- Carefully selected fabric for the backrest upholstery for ergonomic and
  comfortable sitting
- Adjustable balance point that provides a feeling of security
- Accessories as armrests and side guards with a unique design
- Armrests, adjustable in height and fore-aft position without tools.
- Side guards with soft upper section folds down when loaded
- Place your hands on the side guards when you lift yourself up or down

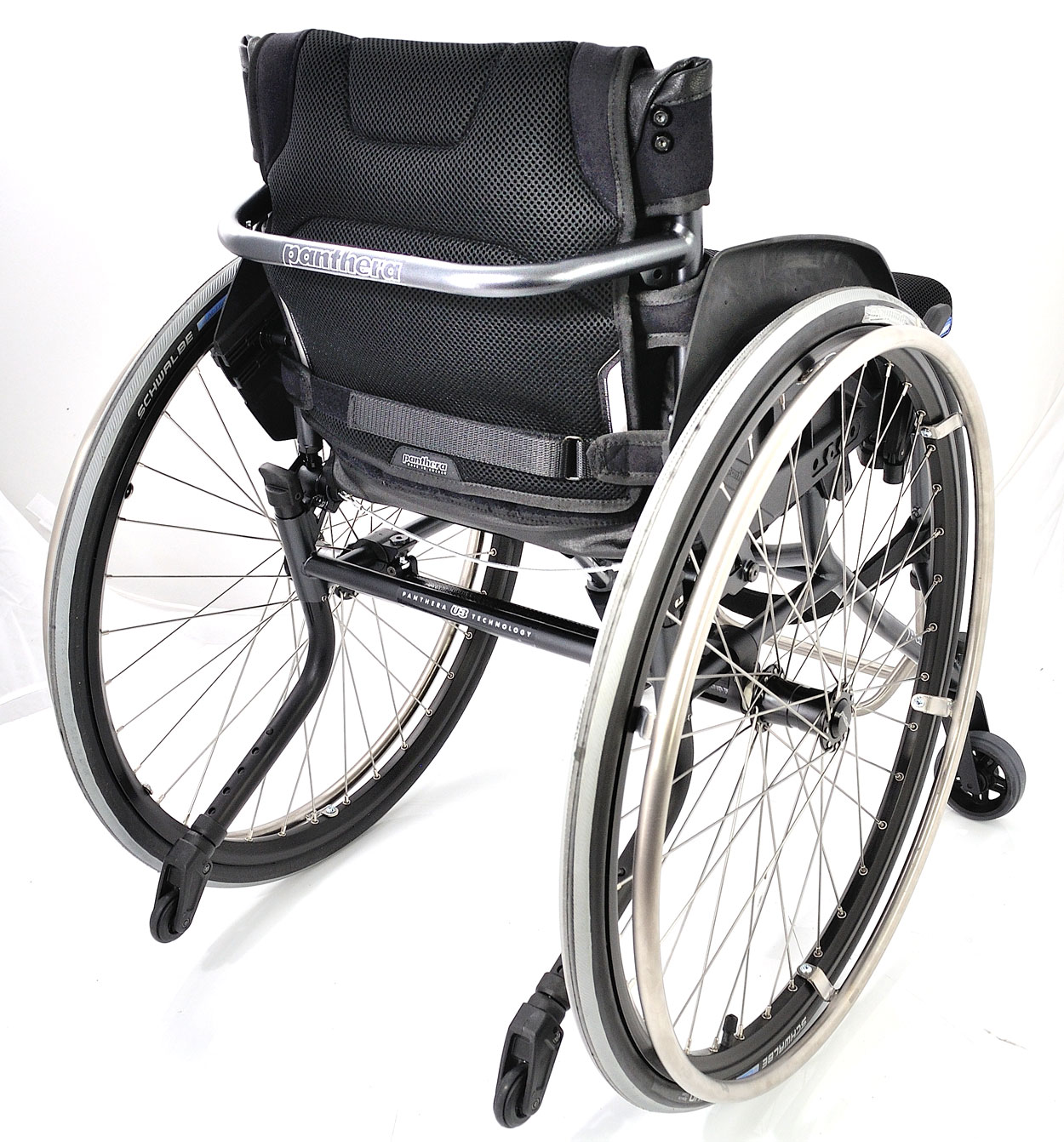

- Integrated anti-tip device can be folded in and out by yourself
- U3 has a tapered front and a steeper footrest angle than S3
- Gives a more upright and active drivning position compared to S3.



Highslide JS
You are here: start / products /S3

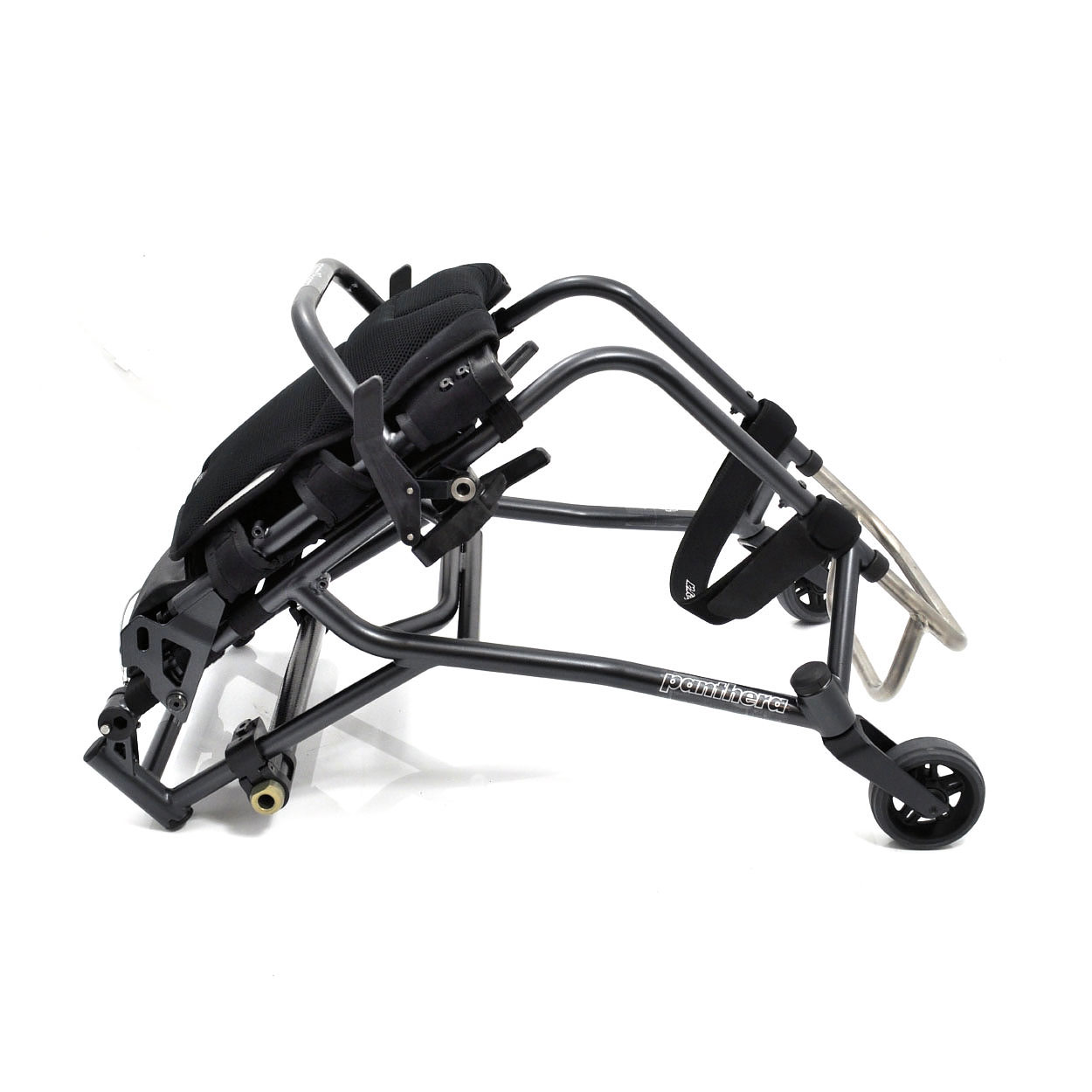

TRANSPORT WEIGHT: from 4483 g
Panthera AB • Gunnebogatan 26 • 163 53 Spånga • Sweden• SE_Box_Spanga@permobil.com • Tel: +46-8-761 50 40

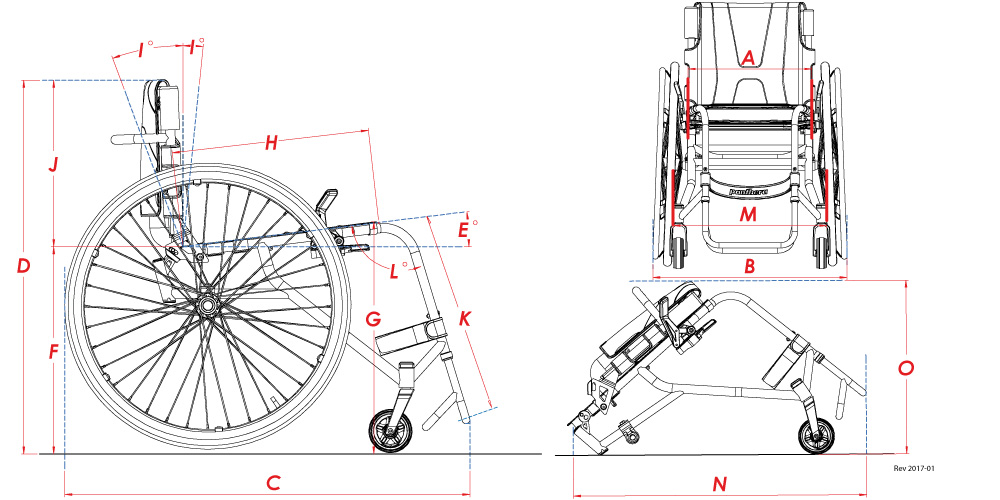

FACTS U3




  Model code   G551 G551 G551 G551 G551
A Seat width cm   33 36 39 42 45
B Total width   54 57 60 63 66
C Total length cm   84 84 84 84 84
D Total height cm   64-84 64-84 64-84 64-84 64-84
E Seat angle degrees   7° 7° 7° 7° 7°
F Seat height rear cm   43 43 43 43 43
G Seat height front cm   47 47 47 47 47
H Seat depth cm   35-46 35-46 35-46 35-46 35-46
I Backrest angle back - forwards   17,3°- (-5°) 17,3°- (-5°) 17,3°- (-5°) 17,3°- (-5°) 17,3°- (-5°)
J Backrest height cm   20 - 45 20 - 45 20 - 45 20 - 45 20 - 45
K Footrest height in cm for the footrest positions
  Footrest standard   36,38,40,42,44 36,38,40,42,44 36,38,40,42,44 36,38,40,42,44 36,38,40,42,44
  Footrest extended   38,40,42,44,46 38,40,42,44,46 38,40,42,44,46 38,40,42,44,46 38,40,42,44,46
L Footrest angle degrees   100° 100° 100° 100° 100°
M Width cm   41 44 47 50 53
N Length cm   78 78 78 78 78
O Height cm   45 45 45 45 45
  Weight
  Total (g)   8043 8180 8131 8219 8527

Transport (g)   4483 4571 4659 4747 4967

User weight (kg)   100 100 100 100 150
STANDARD DESIGN   Art.no. for configuration, not possible to order separately
Chassis Chrome molybdenum Width 33 5513300BLG
Rear axle Carbon Width 36 5513600BLG
Balancing Ungraded adjustable Width 39 5513900BLG
Rear wheels 24" Width 42 5514200BLG
Push rim Titanium Width 45 5514500BLG
Brakes High brake S3
Castors 90 mm
Foot rest Titanium
Back rest Ungraded adjustable angle
Back rest upholstery Adjustable
Others Calf band, Tool kit, Manual

ACCESSORIES U3

ARM REST S3
SIDEGUARD S3
PUSH HANDLE
PUSH BAR
CUSHION
ANTI_TIP DEVICE
SEAT BAG
CRUTCH HOLDER
SPOKE PROTECTION
OTHER

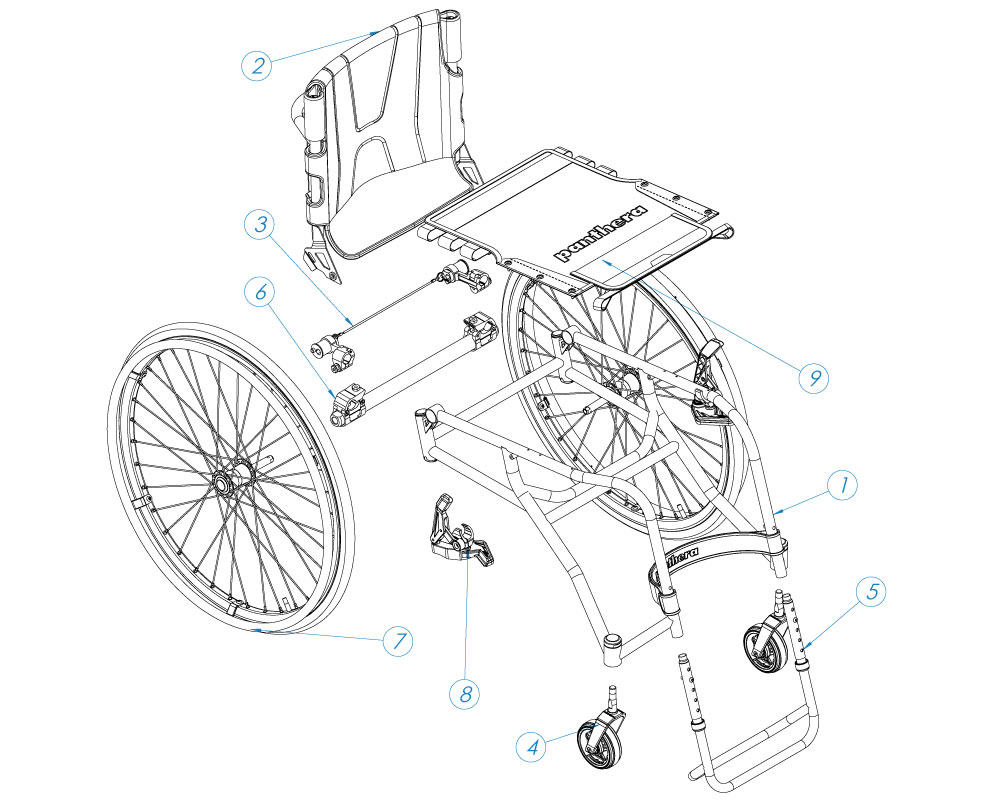

PARTS U3

Bakaxel Bakaxel Rear wheel Rear wheel Sits Sits Brake Brake Chassis Chassis Chassis Footrest Footrest Rygglås Rygglås Castor fork Rygg Broms Sits Rygg Drivhjul Chassi Fotstöd Framgaffel Rygg Drivhjul Sits Dyna Sidoskydd Chassi Fotstöd Gaffel Länkhjul
